TK003 High Quality Waterproof 4G Real Time Vehicle GPS Tracker
Android 4G GPS Car Tracking Device
Products Description
| 1. Real-Time Positioning: | TK003 GPS Tracker Device will get the real-time position message
and upload all status to the server system.
And will display the position on the map. you can click any of the
points to know the name. locating time. and acc status. Speed
GPS Time, direction, and so on. |
| 2. Vibration alarm: | After setting the command of vibration by SMS. When it moves there
will be a vibration alarm message. |
| 3. Power-off alarm: | If the power supply of GPS Tracker is cut off or GPS Tracker will
send the alarm message to the server or bonded Phone number. |
| 4. Remote Car Lock | If an illegal ignition alarm receives from GPS Tracker, you can
remotely cut off the vehicle circuit, so that to avoid being driven
away. |
| Place of Origin | Shenzhen China |
| Network | GSM/GPRS 850/900/1800/1900MHz |
| Certificate | CE ROHS FCC |
| Warranty | 2years |
| Function | 4G GPS Tracking |
| Battery | 200mAH |
| Operation System | Andorid IOS |
| GPRS | Class12, TCP/IP |
Product Functions:
2G:GSM 850MHz,900MHz,1800MHz,1900MHz
3G WCDMA 2100/1900/900/850MHz
4G:FDD-LTE 800/850/900/1800/2100/2600MHz
Cut oil or circuit (relay is optional )
Over speed alarm
moving alarm
Vibration alarm
power cutoff alarm
Acc ignition detection
protocol: GT06
G-sensor : BS250E
input power: 9-100V
power IC: SL3036H
GSM module: MT6261
TK003 High Quality Waterproof 4G Real Time Vehicle GPS Tracker
Android 4G GPS Car Tracking Device
Product Features
2.1 Support SMS text query location information;
2.2 ACC ignition signal is detected, the vehicle prompted the
state;
2.3 Built-in vibration sensor, to achieve intelligent vehicle
anti-theft;
2.4 Able to set a specific number for SOS alarm and burglar alarm;
2.5 SOS switch button for emergency call for help;
2.6 Internal / external microphone and speakers, remote audio
monitoring and voice
intercom function (optional);
2.7 Built-in backup battery, to achieve illegal cutting wire alarm
(optional);
2.8 Built-in OBD2 remote vehicle diagnostics management system
(optional);
2.9 Platform supports up to 180 days historical route track;
2.10 Platform supports electronic fence, out of the regional alarm;
4G module
Europe / Middle East / Africa / South
Korea / Thailand EC25-E: | LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8 |
North America EC25-A
EC25-V | LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
LTE FDD: B4/B13 |
Australia/New Zealand/Taiwan/Brazil
EC25-AU | LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8 |
| EC25-AUTL: | LTE FDD: B3/87/828 |
Japan
EC25-J | LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19 |
TK003 High Quality Waterproof 4G Real Time Vehicle GPS Tracker
Android 4G GPS Car Tracking Device

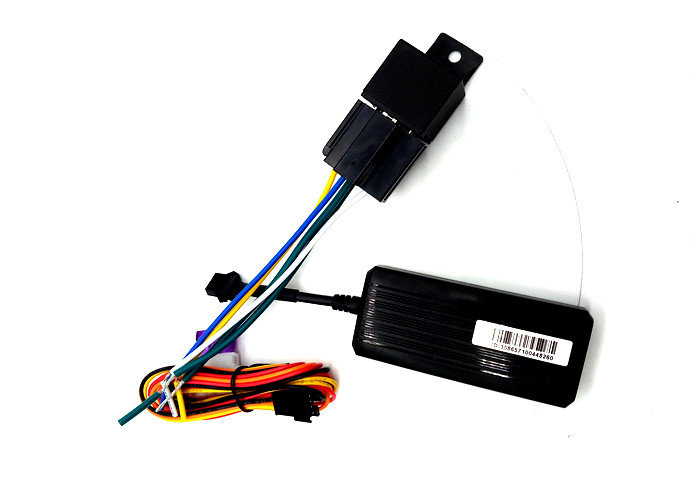

Terminal Outlet Defined
(1) Red line connects positive power;
(2) Black line connects negative power;
(3) Orange connects ACC;
(4) Yellow connects relay
Please use the original supplied power cord, the red line is the
positive power supply,
black for negative power, negative power installation, choose a
separate grounding or
connect metal, do not connect with the other ground wire together.
If need ACC
automatic anti-theft function, ensure to connect the ACC line, the
device will detect the
ACC state to decide whether to enter the security mode; If not
connect to ACC line, the
vehicle will enter the security mode, vibration occurs under the
security mode, vibration
alarm will be triggered.
Proper Use of The Product
Install→Power on→Settings→Register
Installation: GPS antenna should be facing toward the sky, above
the mounting location
must be no material (such as metal, window film) absorption of
electromagnetic waves
sheltered place.
Boot: Insert the SIM card correctly, connect the wire according to
diagram, then turn on
the power.
Setting: Must be done, or can not do other operations, mobile phone
owners send text
messages to set the owner number and a specific number to the
terminal SIM card.
Registration: Registration method is different subject to dealer
platforms, please consult
your dealer.
FAQ:
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your
payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
