Anti Lost 4G FDD LTE Vehicle Tracker Supported Cut Oile Or Curcuit ACC Ighition Chevking GPS Tracker

Product Detail:

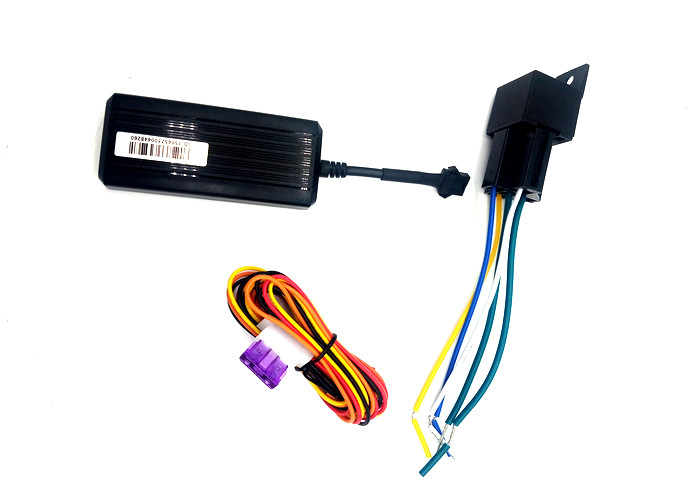

Accessories:

Red＆black cable for power

Orange cable for ACC/ignition

Yellow cable for Relay

Technical parameter:

1).GSM:850/900/1800/1900 Quad band

2).GPRS: Class12, TCP/IP

3).Working Voltage:9-100V DC

4).Working current:≈22mA (12vDC)

5).Working current:≈12mA (24vDC)

6).GPS locating time:Cold start≈38s(Open sky)

Warm start≈32s Hot start≈2s(Open sky)

7).GPS Precision:10m(2D RM)

8).Working temperature:-20℃～+70℃

9).Working humidity:20%～80%RH

GPS Tracker Main Functions:

1. Real-Time Positioning:

GPS Tracker Device will get the real-time position message and upload all status to the server system.

And will display the position on the map. you can click any of the points to know the name. locating time. and acc status.speed

GPS Time, direction and so on.

2. Vibration alarm:

After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.

3. Power-off alarm:

If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.

4. Remote Car Lock

If illegal ignition alarm receives from GPS Tracker, you can remote cut off the vehicle circuit, so that to avoid being driven away.

Anti Lost 4G FDD LTE Vehicle Tracker Supported Cut Oile Or Curcuit ACC Ighition Chevking GPS Tracker

Terminal connection:

male switch, Female switch

Red(positive) Black (Negative)

1. red wire connect positive(+),black wire connect negative(-)

2. power input connector to power positive and negative connectors( make sure connect the right connector)

3. Quad-band,GSM frequencies 850/900/1800/1900MHz

2. MTK6261 GPRS model

4. Compact size, easy for hiding

5. Cut oil or circuit (relay is optional )

6. Over speed alarm ,moving alarm, Vibration alarm ,power cut off alarm

7. Acc ignition detection

8. built-in battery is 200Mah

Preparation Before Installation:

1 Product Check. Open the packing box and check the device‘s model and accessories. If the model is wrong or the accessories not complete, please contact the dealer.

2 Choose SIM card. Please insert a SIM card to the device. Please take dealer’s advice as reference.

3 SIM card installation. Discharge the cover of the device and uncover the SIM card holder. Then insert the SIM card and cover SIM card holder.

4 Put back the front cover and screw it up.

5 Connect the device to the 9-100Vpower supply.(the red LED constant glow)

6 Install the device in the hidden place of the car；

Anti Lost 4G FDD LTE Vehicle Tracker Supported Cut Oile Or Curcuit ACC Ighition Chevking GPS Tracker

Device wiring requirements

1 The device power supply is DC 9-100V. The red line is positive pole while the black line is negative pole.

2 The negative pole of power supply connects with ground or the metals. Please do not connect with other ground lines.

3 When finishing the power supply wire connection, please make the plug of power supply to the device

FAQ:

How to use this GPS tracker?

1. Input SIM Card inside the GPS Tracker product.

2. Connecting GPS Tracker with power supply.

3. Put GPS Tracker device near a window or some open area waiting for signal ready.

4. When all indicators lighted and flashed normally means GPS Tracker works. now send SMS command to

communication network, you will receive a GPS Tracker status report by SMS.
