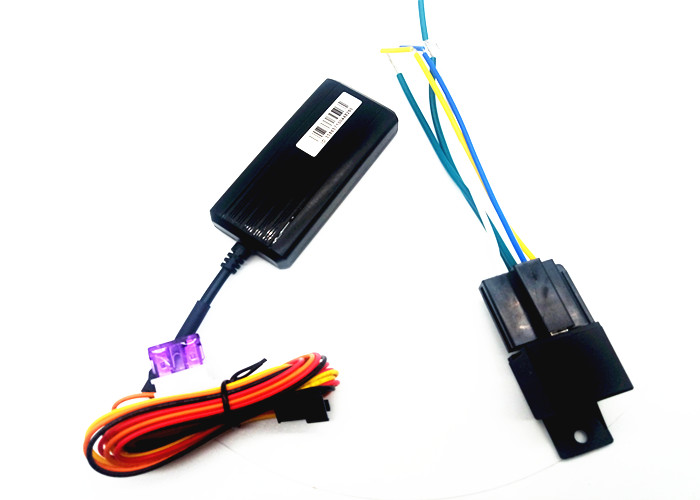

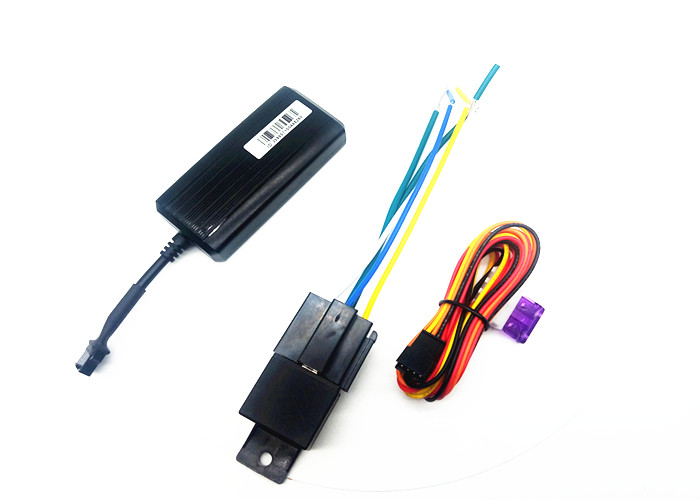

Build-in Battery 4G GPS Tracking Relay Optional MT6261 Module
Higher Precision GPS Tracker
4G GPS Technical parameter
| GSM: | 850/900/1800/1900 Quad band |
| GPRS: | Class12, TCP/IP |
| Working Voltage | 9-100V DC |
| Working current: | ≈22mA (12vDC) |
| Working current: | ≈12mA (24vDC) |
| GPS locating time: | Cold start≈38s(Open sky)
Warm start≈32s Hot start≈2s(Open sky) |
| GPS Precision: | 10m(2D RM) |
| Working temperature: | *-20℃～+70℃ |
| Working humidity: | 20%～80%RH |
| Measurement: | 90(L)×40(W)×15(H)mm |
Main components: :
GPS functions:
protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm,
GPS module: Ublox 6)platform /APP supported
Build-in Battery 4G GPS Tracking Relay Optional MT6261 Module
Higher Precision GPS Tracker
Device status indicators
4.1 Connect DC 9-100V power supply and the red LED will light
continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
4.2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
4.3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
5.Installation for SIM of device
5.1 Preparation for the installation
5.1.1 Product Check. Open the packing box and check the device‘s model
and accessories. If the model is wrong or the accessories not
complete, please contact the dealer.
5.1.2 Choose SIM card. Please insert a SIM card to the device. Please
take dealer’s advice as reference.
5.1.3 SIM card installation. Discharge the cover of the device and
uncover the SIM card holder. Then insert the SIM card and cover SIM
card holder.
5.1.4 Put back the front cover and screw it up.
5.1.5 Connect the device to the 9-100Vpower supply.(the red LED constant
glow)
5.1.6 Install the device in the hidden place of the car；
The SIM card must be with GPRS function and enough deposit. If your
SIM card need input PIN when power on, please cancel it.
5.2 Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield；
In the front instrument panel；
Under back windshield；
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure
the receiving side of the device is face up and without metal
cover.
Note:The metal cover will lessen the receiving of GPS signals.
Build-in Battery 4G GPS Tracking Relay Optional MT6261 Module
Higher Precision GPS Tracker
6. Device wiring requirements
6.1 The device power supply is DC 9-100V. The red line is positive
pole while the black line is negative pole.
6.2 The negative pole of power supply connects with ground or the
metals. Please do not connect with other ground lines.
6.3 When finishing the power supply wire connection, please make the
plug of power supply to the device
