Mini GPS Tracker GPRS SMS Vehicle Tracking Device for Car with
Engine Shut Off

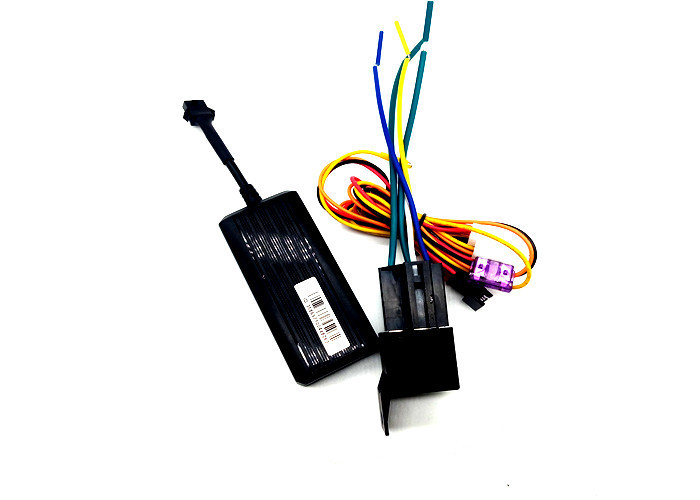

Acessories:
Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
| Content | Specs. |
| Dim. | 90 mm x40 mm x 15 mm |
| Weight | 50g |
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900 MHz |
| GPS chip | U-B |
| GSM module | MTK6261 |
| GPS accuracy | 10m |
| GPS locating time | Cold start≈38s(Open sky) |
| Warm start≈32s(Open sky) |
| Hot start≈2s(Open sky) |
| Work voltage | DC9V-100V |
| Storage Temp. | -40°C to +85°C |
| Humidity | 20%--80% |
Mini GPS Tracker GPRS SMS Vehicle Tracking Device for Car with
Engine Shut Off
Feature:
| GSM Frequency | GSM 850/900/1800/1900MHz |
| Dimension | 90*40*15mm |
| Weight | 50g |
| Built-in Battery | 200mAh |
| Colors | Black |
| Operating Voltage | 9-36VDC |
| Working mode | Normal mode |
| Antenna | Built-in GPS and GSM antenna |
| Location Accuracy | 10meters |
| Location time | Hot start:≤2sec(open sky)
Cold start:≤35sec(open sky) |
| Operating Temperature | -20℃~70℃ |
| Operating Humidity | 5%~95% |
1. Real-Time Positioning:
C003-01-4G GPS Tracker Device will get the real-time position
message and upload all status to the server system.
And will display the position on the map. you can click any of the
points to know the name. locating time. and acc status.
Speed GPS Time, direction, and so on.
2. Vibration alarm:
After setting the command of vibration by SMS. When it moves there
will be a vibration alarm message.
3. Power-off alarm:
If the power supply of GPS Tracker is cut off or GPS Tracker will
send the alarm message to the server or bonded Phone number.
4. Remote Car Lock:
If an illegal ignition alarm receives from GPS Tracker, you can
remotely cut off the vehicle circuit, so that to avoid being driven
away.
Mini GPS Tracker GPRS SMS Vehicle Tracking Device for Car with
Engine Shut Off
Platform:
1. Platform supports up to 180 days historical route track;
2. Platform supports electronic fence, out of the regional alarm;
3. Platform supports deviate planning route alarm;
4. Platform supports overspeed alarm;
5. Platform supports serious collision warning (optional);
6. Platform Support rollover warning (optional);
7. Platform supports for report output;
Indicators
1. Connect DC 9-100V power supply and the red LED will light
continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
2. The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
3. The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
Mini GPS Tracker GPRS SMS Vehicle Tracking Device for Car with
Engine Shut Off
FAQ:
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your
payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
