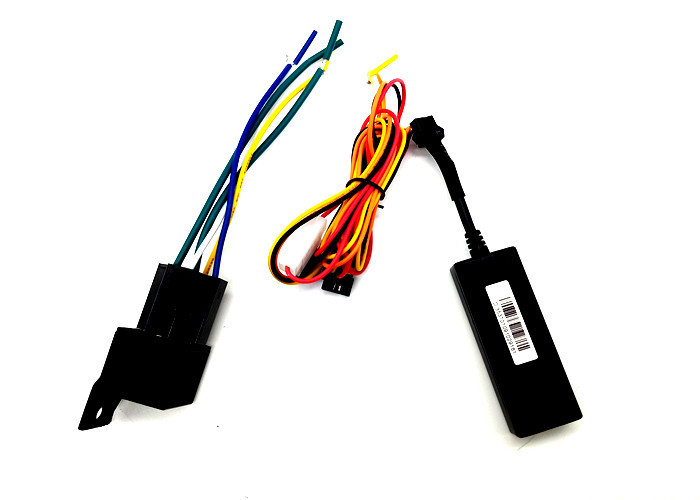

Mini GPS Tracking Device With Sim Card For Truck With 2G 3G 4G GPS
SMS Tracker
Technical Paremeter:
| Detail |
| Operating voltage | DC9-90V |
| Operating current | 22mA@12V |
| Specifications | L90mm*W40mm*H15mm |
| Positioning mode | GPS, LBS and positioning |
| Positioning error | < 10 m |
| Support WCDMA | Yes |
| Communication | TCP |
| Operating temperature range | -20℃～+70℃ |
| Storage temperature range | -40℃~+85℃ |
| weight | 50g |
Main function
| 1. Remote power off function |
| 2. Real-time positioning function |
| 3. Anti-theft alarm |
| 4. Track playback function |
| 5. Vibration alarm |
| 6. Overspeed alarm |
| 7. Electronic fence function |
Mini GPS Tracking Device With Sim Card For Truck With 2G 3G 4G GPS
SMS Tracker
Product Features:
| Model | GT06 |
| Features | Vehicle malfunction diagnostics |
| Device Dimension | 90mm(L)*40mm(W)*15mm(H) |
| Weight | 50g |
| Quad Band | 850/1900/900/1800MHz |
| GPS Accuracy | 5-10m |
| Voltage Input | 9-100v |
| | Hot Start<2S(Open Sky) |
| Positioning Time | Warm Start<15S |
| | Cold Start<32S(Open Sky) |
| Tracking Sensitivity | -162dBm |
| GPS chip | MTK6261 |
| GSM/GPS Antenna | Built-in Design |
| Place of Origin | Shenzhen China |
| Network | GSM/GPRS 850/900/1800/1900MHz |
| Certificate | CE ROHS FCC |
| Warranty | 2years |
| Function | 4G GPS Tracking |
| Battery | 200mAH |
| Operation System | Andorid IOS |
| GPRS | Class12, TCP/IP |
Produce Description
| GSM | GPRS |
| Geo-sensor | Input power |
| ACC | Ignition checking |
| Built-in battery | Cutt off power/fuel |
| Real time tracking | Over speed alarm |
| Relay supported | Platform /APP supported |
Mini GPS Tracking Device With Sim Card For Truck With 2G 3G 4G GPS
SMS Tracker
Indicators
1 Red light - Power Indicator / OBD Work Lights
LED Status Meaning
Flash once in 2 seconds Normal operation / OBD working properly
No light Shutdown / OBD sleep
2 Yellow indicator light -GSM
LED Status Meaning
Flash once in 2 seconds GSM initialization
Light Always GPRS is normal / already online
No light GSM sleep
3 Blue LED light -GPS
LED Status Meaning
Flash once in 2 seconds GPS signal searching
Light Always GPS targeted
No light GPS sleep
| LIGHT | Functions |
| Red LED | Connect DC 9-100V power supply and will light continuously. |
| The red LED is the power signal, |
| It is always on when the external DC is connected. |
| blue LED | It is he GSM signal indicator. |
| It is always on when there is no GSM; |
| It flashes when GSM is normal; |
| It flashes quickly when transmitting data. |
| yellow LED | It is the GPS signal indicator: |
| It is always on when there is no positioning; |
| It flashes after positioning. |
Mini GPS Tracking Device With Sim Card For Truck With 2G 3G 4G GPS
SMS Tracker
Troubleshooting
If the terminal is unable to connect to the background server in
the first time
installation, background shows offline, please check the terminal
installation
1 Check is the main power connection correct, pay attention not to
connect to the
vehicle interior control wire.
2 Is SIM card installed correctly, please refer to the installation
instructions.
3 Please check is it power on, the switch at the back cover.
4 Check the LED status, please refer to the indicators instruction.
5 Check whether the GPS has been positioning, if not please go to
the open air for the
first time targeting.
FAQ:
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your
payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
