4G LTE GPS Tracking Chip MT6261 Car E-bike Over SpeedAlarm 4G GPS
Tracker

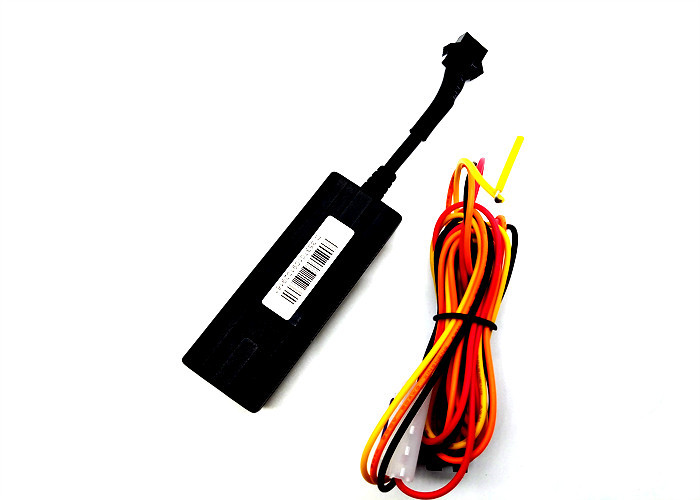

1. Product Accessories
1.1 Power cable
1.2 User Guide
1.3 Microphone (optional)
1.4 SOS button (optional)
1.5 Relay (optional)
Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
4G LTE GPS Tracking Chip MT6261 Car E-bike Over SpeedAlarm 4G GPS
Tracker
2. Product Features
| GSM two-way | 850/900/1800/1900 MHz |
| GPS positioning | GPS sensitivity: -162dBm |
| GPS positioning accuracy: 5 meters (under open conditions) |
| Speed accuracy: 0.1 m/s |
| Cold start time: <38 seconds |
| Warm start time: <32 seconds |
| Hot start time: <2 seconds |
| Base station positioning | Support base station positioning, positioning accuracy: 10~200
meters |
| Vandalism | Support anti-counterfeiting base station, anti-detection function |
| Working current | Average current <30mA (12VDC), maximum current <100mA (12VDC) |
| Operating temperature | -20~+70℃ |
| Material | Engineering plastics |
| Weight | 50G |
| Network | 4G LTE/3G/2G |
| Dim. | 90*40*15mm |
| Storage Temp. | -40°C to +85°C |
| Accuracy | 5-20m |
| Operation Temp. | -20°C to +55°C |
| Humidity | 5%--95% non-condensing |
| Working Voltage | 9-80V |
| CPU | MTK6261 |
| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| ACC detection | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces | Voltage adaptation up to 100v |
4G LTE GPS Tracking Chip MT6261 Car E-bike Over SpeedAlarm 4G GPS
Tracker
3. Installation Notes
Preparation for the installation
3.1 Product Check. Open the packing box and check the device‘s model
and accessories. If the model is wrong or the accessories not
complete, please contact the dealer.
3.2 Choose SIM card. Please insert a SIM card to the device. Please
take dealer’s advice as reference.
3.3 SIM card installation. Discharge the cover of the device and
uncover the SIM card holder. Then insert the SIM card and cover SIM
card holder.
3.4 Put back the front cover and screw it up.
3.5 Connect the device to the 9-100Vpower supply.(the red LED constant
glow)
3.6 Install the device in the hidden place of the car；
The SIM card must be with GPRS function and enough deposit. If your
SIM card need input PIN when power on, please cancel it.
Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield；
In the front instrument panel；
Under back windshield
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure
the receiving side of the device is face up and without metal
cover.
Note:The metal cover will lessen the receiving of GPS signals.
4G LTE GPS Tracking Chip MT6261 Car E-bike Over SpeedAlarm 4G GPS
Tracker
Warranty
In particular that:
1. Any technical changes to the product in the future without prior
notice.
2. Any changes of appearance, color of products, to prevail in
kind.
3. The warranty card is only available in the following listed IMEI
/ ID Number warranty
Services.
4. Please keep this service card, please show this card and the
original purchase receipt
for warranty.
5. See the table below illustrate specific warranty.
This card is a basic warranty certificate, user please fill out the
card and keep it.
