Produce Description
| GSM | GPRS |
| Geo-sensor | Input power |
| ACC | Ignition checking |
| Built-in battery | Cutt off power/fuel |
| Real time tracking | Over speed alarm |
| Relay supported | Platform /APP supported |
Technical parameter
1).GSM:850/900/1800/1900 Quad band
2).GPRS: Class12, TCP/IP
3).Working Voltage:9-100V DC
4).Working current:≈22mA (12vDC)
5).Working current:≈12mA (24vDC)
6).GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s Hot start≈2s(Open sky)
7).GPS Precision:10m(2D RM)
8).Working temperature:-20℃～+70℃
9).Working humidity:20%～80%RH
10).Measurement:90(L)×40(W)×15(H)mm

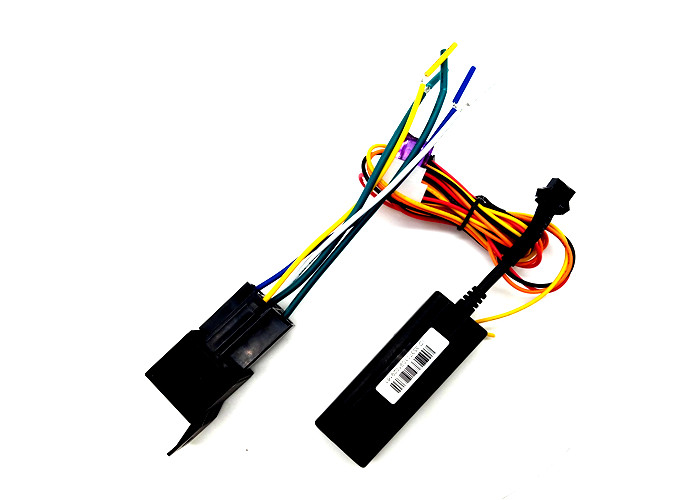

Widly Voltage 9-100DC 4G GPS Tracker Built-in Battery 200MAH FDD
2600MHZ GPS Tracking
Main components
GPS Functions:
protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm,
GPS module: Ublox 6)platform /APP supported
Indicators
Connect DC 9-100V power supply and the red LED will light
continuously.
1 The red LED is the power signal,
it is always on when the external DC is connected.
2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
Widly Voltage 9-100DC 4G GPS Tracker Built-in Battery 200MAH FDD
2600MHZ GPS Tracking
FAQ:
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your
payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
