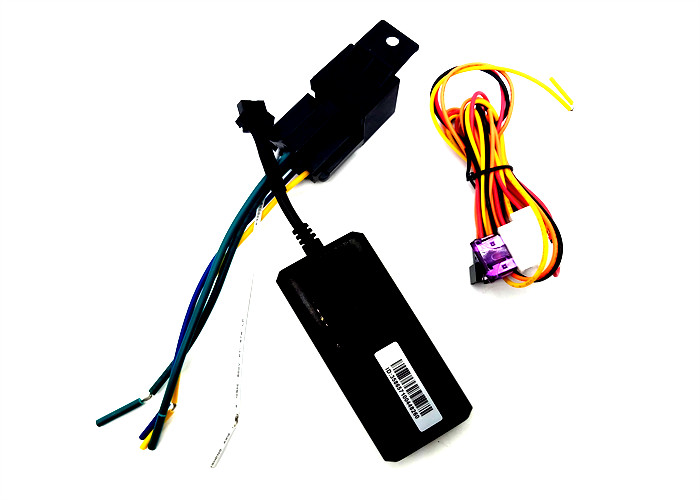

Mini GPS Security Protection GT06 Car Tracking Device Real Time
Tracking 4G GPS Tracker
Produce Description
| GSM | GPRS |
| Geo-sensor | Input power |
| ACC | Ignition checking |
| Built-in battery | Cutt off power/fuel |
| Real time tracking | Over speed alarm |
| Relay supported | Platform /APP supported |
GSM:850/900/1800/1900 Quad band
GPRS:Class12, TCP/IP
Geo-sensor:BS250E
Input power:DC9-100V
Built-in battery:200MAH
Real time tracking:Hot start≈2s
Relay supported:Optional
Platform /APP supported:For free cost
Mini GPS Security Protection GT06 Car Tracking Device Real Time
Tracking 4G GPS Tracker
Main components
| GPS | functions: |
| protocol: GT06 | 1)support ACC ignition checking |
| G-sensor : BS250E | 2)support Relay for cutting off power/fuel |
| input power: 9-100V | 3)built-in GPS antenna: 18*18*4 mm |
| power IC: SL3036H | 4)built-in battery, Real time tracking |
| GSM module: MT6261 | 5)Geo-fence, over speed alarm, |
| GPS module: Ublox | 6) platform /APP supported |
parameters:
| Content | Specs. |
| Dim. | 90 mm x40 mm x 15 mm |
| Weight | 50g |
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900 MHz |
| GPS chip | U-B |
| GSM module | MTK6261 |
| GPS accuracy | 10m |
| GPS locating time | Cold start≈38s(Open sky) |
| Warm start≈32s(Open sky) |
| Hot start≈2s(Open sky) |
| Work voltage | DC9V-100V |
| Storage Temp. | -40°C to +85°C |
| Humidity | 20%--80% |
Mini GPS Security Protection GT06 Car Tracking Device Real Time
Tracking 4G GPS Tracker
Troubleshooting
1 If the terminal is unable to connect to the background server in
the first time
installation, background shows offline, please check the terminal
installation
1.1 Check is the main power connection correct, pay attention not
to connect to the
vehicle interior control wire.
1.2 Is SIM card installed correctly, please refer to the
installation instructions.
1.3 Please check is it power on, the switch at the back cover.
1.4 Check the LED status, please refer to the indicators
instruction.
1.5 Check whether the GPS has been positioning, if not please go to
the open air for the
first time targeting.
2 Terminal shows offline in the background
First check equipment three lights are they normal, in the absence
of conditions to check
the lights situation, you can check the status of the SIM card,
follow these steps:
2.1 Call the SIM card number of the device, see if you can hear the
sound of the call is
connected.
2.2 Whether the vehicle is in the basement does not have the GSM
network signal.
2.3 Observation offline region, individual or all offline, to check
whether the operator's
network problems.
2.4 Is SIM card no charges.
2.5 Whether GPRS service is canceled (by the end of the month).
2.6 Query parameter settings, view the GPRS transmission time
interval is correct.
3 If the terminal GPS function has been activated, but for a long
time does not locate,
Mini GPS Security Protection GT06 Car Tracking Device Real Time
Tracking 4G GPS Tracker
FAQ:
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your
payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
