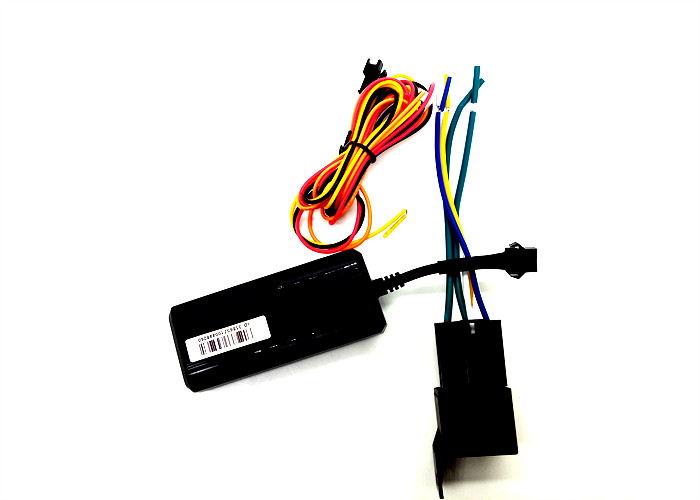

TK003 Module Tracking Device For Vehicle Car Motorcycle Free App 4G
GPS Tracker
Functions :
| 1. Real-Time Positioning: | TK003 GPS Tracker Device will get the real-time position message
and upload all status to the server system.
And will display the position on the map. you can click any of the
points to know the name. locating time. and acc status. Speed
GPS Time, direction, and so on. |
| 2. Vibration alarm: | After setting the command of vibration by SMS. When it moves there
will be a vibration alarm message. |
| 3. Power-off alarm: | If the power supply of GPS Tracker is cut off or GPS Tracker will
send the alarm message to the server or bonded Phone number. |
| 4. Remote Car Lock | If an illegal ignition alarm receives from GPS Tracker, you can
remotely cut off the vehicle circuit, so that to avoid being driven
away. |
parameter:
| Content | Specs. |
| Dim. | 90 mm x40 mm x 15 mm |
| Weight | 50g |
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900 MHz |
| GPS chip | U-B |
| GSM module | MTK6261 |
| GPS accuracy | 10m |
| GPS locating time | Cold start≈38s(Open sky) |
| Warm start≈32s(Open sky) |
| Hot start≈2s(Open sky) |
| Work voltage | DC9V-100V |
| Storage Temp. | -40°C to +85°C |
| Humidity | 20%--80% |
TK003 Module Tracking Device For Vehicle Car Motorcycle Free App 4G
GPS Tracker
- Main components: (V1.0)
GPS functions:
protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm,
GPS module: Ublox 6) platform /APP supported
product description:
| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| |
| ACC detection | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
| |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces | Voltage adaptation up to 100v |
TK003 Module Tracking Device For Vehicle Car Motorcycle Free App 4G
GPS Tracker
Preparation for the installation
| 1 . Product Check. Open the packing box and check the device‘s
model and accessories. If the model is wrong or the accessories not
complete, please contact the dealer. |
| 2 . Choose SIM card. Please insert a SIM card to the device. Please
take dealer’s advice as reference. |
| 3 . SIM card installation. Discharge the cover of the device and
uncover the SIM card holder. Then insert the SIM card and cover SIM
card holder. |
| 4 . Put back the front cover and screw it up. |
| 5 . Connect the device to the 9-100Vpower supply.(the red LED
constant glow) |
| 6 . Install the device in the hidden place of the car； |
Installation for SIM of device
1 Preparation for the installation
1.1 Product Check. Open the packing box and check the device‘s model
and accessories. If the model is wrong or the accessories not
complete, please contact the dealer.
1.2 Choose SIM card. Please insert a SIM card to the device. Please
take dealer’s advice as reference.5.1.3 SIM card installation. Discharge the cover of the device and
uncover the SIM card holder. Then insert the SIM card and cover SIM
card holder.
1.4 Put back the front cover and screw it up.
1.5 Connect the device to the 9-100Vpower supply.(the red LED constant
glow)
1.6 Install the device in the hidden place of the car；
The SIM card must be with GPRS function and enough deposit. If your
SIM card need input PIN when power on, please cancel it.
TK003 Module Tracking Device For Vehicle Car Motorcycle Free App 4G
GPS Tracker
Device wiring requirements
1 The device power supply is DC 9-100V. The red line is positive
pole while the black line is negative pole.
2 The negative pole of power supply connects with ground or the
metals. Please do not connect with other ground lines.
3 When finishing the power supply wire connection, please make the
plug of power supply to the device
In particular that:
1. Any technical changes to the product in the future without prior
notice.
2. Any changes of appearance, color of products, to prevail in
kind.
3. The warranty card is only available in the following listed IMEI
/ ID Number warranty
Services.
4. Please keep this service card, please show this card and the
original purchase receipt
for warranty.
5. See the table below illustrate specific warranty.
This card is a basic warranty certificate, user please fill out the
card and keep it.
