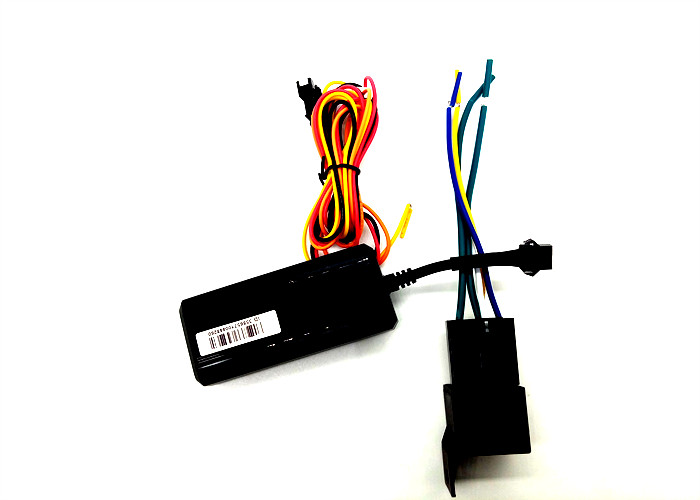

4G Wireless Real-time Tracking Device 4G GPS Tracker Car with
Geo-Sensor
Functions:
| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| ACC detection | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces | Voltage adaptation up to 100v |
Product Highlight
Cable Installed Vehicle Worldwide 4G GPS tracker;
With optional relay, supporting car of the car remotely;
Power input: 9-100V DC;
200mAh rechargeable battery;
GPS+GSM positioning;
Built-in watchdog CPU to avoid system crash;
4G Wireless Real-time Tracking Device 4G GPS Tracker Car with
Geo-Sensor
Network
North America:
LTE-FDD B2/B4/B12; WCDMA B2/B5
Europe/Middle East/Africa/Korea/Japan/Tailand:
LTE-FDD B1/B3/B5/B7/B8/B20
LTE-TDD B38/B40/B41
WCDMA B1/B5/B8
GSM 900/1800MHz
South America/New Zealand/Australia:
LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28
LTE-FDD B40
WCDMA B1/B2/B5/B8
GSM 850/900/1800/1900MHz
4G Wireless Real-time Tracking Device 4G GPS Tracker Car with
Geo-Sensor
Product Specification
| Frequency | North America EC25-A
EC25-V:LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
LTE FDD: B4/B13 |
| Nerworks | 4G/3G/2G |
| Battery | 200mah |
| Operating Voltage | 9-100v |
| Location time | Hot start≈2s(Open sky) |
| Location accuracy | 5-10M |
| Operating temperature | -20℃～+70℃ |
| Dimension | 90*40*15mm |
| Weight | 0.05kg |
| GSM | GPRS |
| Geo-sensor | Input power |
| ACC | Ignition checking |
| Built-in battery | Cutt off power/fuel |
| Real time tracking | Over speed alarm |
| Relay supported | Platform /APP supported |
4G Wireless Real-time Tracking Device 4G GPS Tracker Car with
Geo-Sensor
Set a SOS specific number
Specific number for the alarm number, , you can send an SMS
instruction to add SOS
number, you can add two specific number SOS, 101 is the default
owner number, 102 for
the first SOS specific number, 103 for the second SOS specific
numbers, in the alarm state,
the device will send location information or SOS to a specific
number (information is
based on whether the set needs), and the cycle call until the dial
up. Before setting
specific numbers, all numbers can be set and query. After set a
specific number, without a
password can only be associated with the specific number set.
SOS Alarm Settings
When in emergency situation need help, you can press the SOS to
trigger SOS emergency
alarm. Device will send a SOS message to specific number and call
the specific number
until pick up. Device will also send SMS alarm information to
platform.
Note: SMS and phone call alarm function need to set a owner number
at first, SOS phone
call and SMS function need to set a specific SOS number.
FAQ:
1. Where is your factory?
Answer: Our factory is in Shenzhen City China.
2. Do you test all your products when your product them?
Answer: Yes, of course, we test all before ship them.
3. Do it contain built-in battery for your GPS Tracker product?
Answer: Yes,this model contains one 1200mAh battery.
4. What kinds of GPS Chip you use?
Answer: we used Ulbox Chip.
