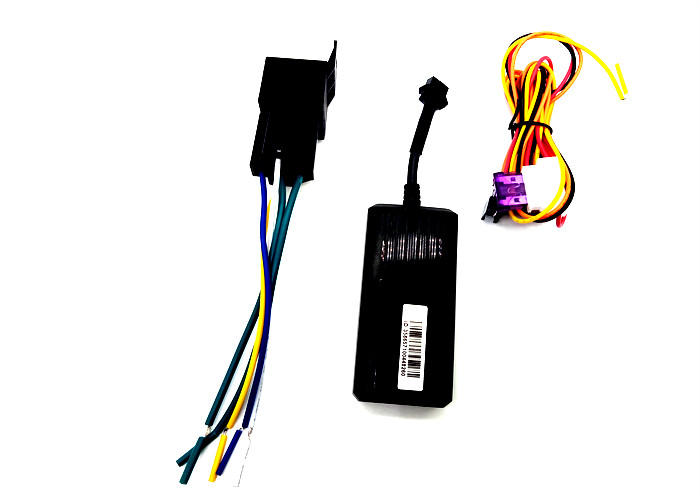

4G Mini Vehicle GPS Tracker Built in Battery Remotely ACC Detection
Real Time Tracking
| SMS Command list |
| NO. | Item | SMS Commands format | Remarks |
| 1 | Check Device Status | STATUS# | |
| 2 | Check Device parameters | PARAM# | |
| 3 | Check GPRS Parameters | GPRSSET# | |
| 4 | Check Device Lat. And Log. | WHERE# | |
| 5 | Set Server IP or Domain name | - Set Server Domain name:
SERVER,1,domain name,port,0# - Set Server IP:
SERVER,0,IP,Port,0# The last bit 0 stands for TCP | |
| 6 | Check Server parameters | SERVER# | |
| 7 | Reset Device | RESET# | The terminal will restart after 1 minutes |
| 8 | Add SOS Number | SOS,A, Number 1,Number 2,Number 3# | |
| 9 | Del SOS Number | SOS,D,No. 1,No. 2,No. 3# | |
| 10 | Check SOS Number | SOS# | |
4G Mini Vehicle GPS Tracker Built in Battery Remotely ACC Detection
Real Time Tracking
Produce Description
| GSM | GPRS |
| Geo-sensor | Input power |
| ACC | Ignition checking |
| Built-in battery | Cutt off power/fuel |
| Real time tracking | Over speed alarm |
| Relay supported | Platform /APP supported |
1. Real-Time Positioning:TK003 GPS Tracker Device will get the
real-time position message and upload all status to the server
system.
And will display the position on the map. you can click any of the
points to know the name. locating time. and acc status. Speed
GPS Time, direction, and so on.
2. Vibration alarm:After setting the command of vibration by SMS.
When it moves there will be a vibration alarm message.
3. Power-off alarm:If the power supply of GPS Tracker is cut off or
GPS Tracker will send the alarm message to the server or bonded
Phone number.
4. Remote Car Lock:If an illegal ignition alarm receives from GPS
Tracker, you can remotely cut off the vehicle circuit, so that to
avoid being driven away.
4G Mini Vehicle GPS Tracker Built in Battery Remotely ACC Detection
Real Time Tracking
1.SMS armed and disarm settings
SMS armed: SF
Re: SF OK
SMS disarm: CF
Re: CF OK
2.SMS Off Fuel (Optional)
When the vehicle thefts, by monitoring background to send off fuel
directive, to ensure
the vehicle is in safe driving premise, cutting stolen vehicle
fuel, unable to start the vehicle
to achieve the purpose.
NOTE: To ensure the safety of vehicles, the terminal is active only
in the GPS targeting
state, and the vehicle speed is less than 20KM / H or stop to cut
off fuel.
When theft alarm is over, you can restore fuel manually through
background, terminal
performs recovery operation, the vehicle will continue to travel.
SMS fuel off: DY
SMS fuel on: KY
3.GPS Reboot
SMS: CQGPS
4.GPS Reset
SMS: FORMAT
5.
Device Reboot
SMS: CQ
4G Mini Vehicle GPS Tracker Built in Battery Remotely ACC Detection
Real Time Tracking
FAQ:
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your
payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
