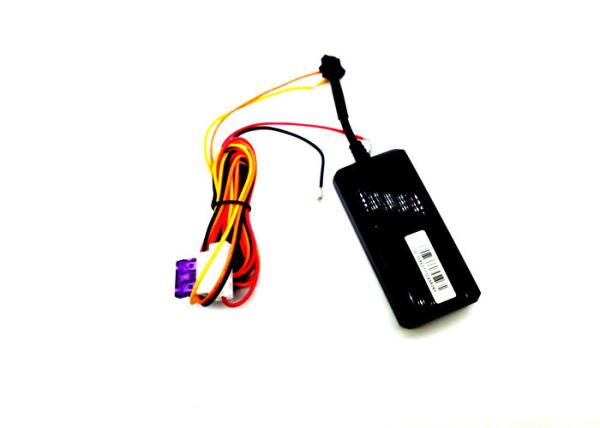

Waterproof 2 Years Warranty TK003 Cut off Power Curcuit 4G GPS
Tracking
Product Functions:
| Base station positioning | Support base station positioning, positioning accuracy: 10~200
meters |
| Vandalism | Support anti-counterfeiting base station, anti-detection function |
| Working current | Average current <30mA (12VDC), maximum current <100mA (12VDC) |
| Operating temperature | -20~+65℃ |
| Material | Engineering plastics |
| Weight | 50G |
| Network | 4G LTE/3G/2G |
| Dim. | 90*40*15mm |
| Storage Temp. | -40°C to +85°C |
| Accuracy | 5-20m |
| Operation Temp. | -20°C to +55°C |
| Humidity | 5%--95% non-condensing |
| Working Voltage | 9-80V |
| CPU | MTK6261 |
Product Accessories:
Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
Waterproof 2 Years Warranty TK003 Cut off Power Curcuit 4G GPS
Tracking
GPS Tracker Main Functions:
【Real Time Tracking】 GPS tracker offers real-time tracking and 30
days of tracking history. Track from any smart intellectual Product
such as a computer, tablet, phone, etc. Support platform lifetime.
Just login or download APP, track any location anywhere and
anytime. The car GPS tracker for vehicle work in almost every
country in the world
【Free to Use】Real time tracking route playback history check via
our platform lifetime. But this mini GPS tracker device only
supports GSM 4G network. Not include a GSM SIM card, please buy a
GSM card, Speed Talk is perfect. If you have any problems please
feel free to contact us
| GPS | functions: |
| protocol: GT06 | 1)support ACC ignition checking |
| G-sensor : BS250E | 2)support Relay for cutting off power/fuel |
| input power: 9-100V | 3)built-in GPS antenna: 18*18*4 mm |
| power IC: SL3036H | 4)built-in battery, Real time tracking |
| GSM module: MT6261 | 5)Geo-fence, over speed alarm, |
| GPS module: Ublox | 6) platform /APP supported |
| LIGHT | Functions |
| Red LED | Connect DC 9-100V power supply and will light continuously. |
| The red LED is the power signal, |
| It is always on when the external DC is connected. |
| blue LED | It is he GSM signal indicator. |
| It is always on when there is no GSM; |
| It flashes when GSM is normal; |
| It flashes quickly when transmitting data. |
| yellow LED | It is the GPS signal indicator: |
| It is always on when there is no positioning; |
| It flashes after positioning. |
Waterproof 2 Years Warranty TK003 Cut off Power Curcuit 4G GPS
Tracking
Product Features;
| GSM Frequency | GSM 850/900/1800/1900MHz |
| Dimension | 90*40*15mm |
| Weight | 50g |
| Built-in Battery | 200mAh |
| Colors | Black |
| Operating Voltage | 9-36VDC |
| Working mode | Normal mode |
| Antenna | Built-in GPS and GSM antenna |
| Location Accuracy | 10meters |
| Location time | Hot start:≤2sec(open sky)
Cold start:≤35sec(open sky) |
| Operating Temperature | -20℃~70℃ |
| Operating Humidity | 5%~95% |
Installations:
| 1. Product Check | Open the packing box and check the device‘s model and accessories.
If the model is wrong or the accessories not complete, please
contact the dealer. |
| 2. Choose SIM card | Please insert a SIM card to the device. Please take dealer’s advice
as reference. |
| 3. SIM card installation | Discharge the cover of the device and uncover the SIM card holder.
Then insert the SIM card and cover SIM card holder. |
| 4. Put back the front cover and screw it up. |
| 5. Connect the device to the 9-100Vpower supply.(the red LED
constant glow) |
| 6. Install the device in the hidden place of the car； |
Waterproof 2 Years Warranty TK003 Cut off Power Curcuit 4G GPS
Tracking
Device wiring requirements
1 The device power supply is DC 9-100V. The red line is positive
pole while
the black line is negative pole.
2 The negative pole of power supply connects with ground or the
metals.
Please do not connect with other ground lines.
3 When finishing the power supply wire connection, please make the
plug of
power supply to the device
Any issue please contact the local distributors.
Warranty
In particular that:
1. Any technical changes to the product in the future without prior
notice.
2. Any changes of appearance, color of products, to prevail in
kind.
3. The warranty card is only available in the following listed IMEI
/ ID Number warranty
Services.
4. Please keep this service card, please show this card and the
original purchase receipt
for warranty.
5. See the table below illustrate specific warranty.
