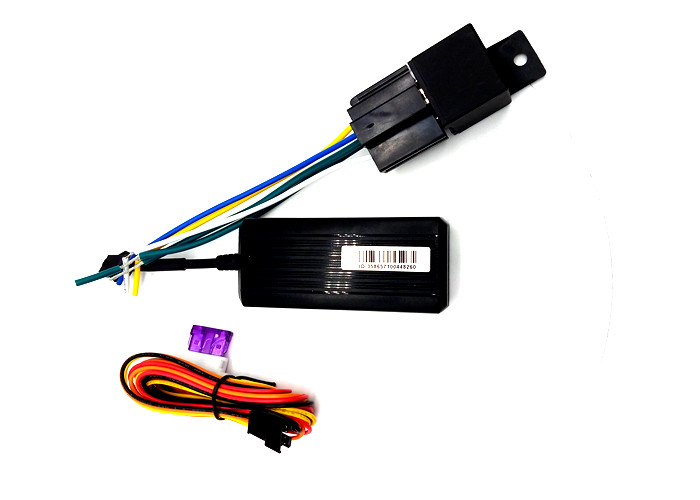

Standard Accessories:
| GT06 GPS Tracker | Power Cable | Sticker | User Manual |
Optional Accessories:
RoHS Real time Manual GPS tracker MINI 4G GPS Tracking Device Free
Cost Platform APP
Technical parameter
1).GSM:850/900/1800/1900 Quad band
2).GPRS: Class12, TCP/IP
3).Working Voltage:9-100V DC
4).Working current:≈22mA (12vDC)
5).Working current:≈12mA (24vDC)
6).GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s Hot start≈2s(Open sky)
7).GPS Precision:10m(2D RM)
8).Working temperature:-20℃～+70℃
9).Working humidity:20%～80%RH
Main components:
GPS Functions:
protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm,
GPS module: Ublox 6) platform /APP supported
RoHS Real time Manual GPS tracker MINI 4G GPS Tracking Device Free
Cost Platform APP
Device status indicators
| LIGHT | Functions |
| Red LED | Connect DC 9-100V power supply and will light continuously. |
| The red LED is the power signal, |
| It is always on when the external DC is connected. |
| blue LED | It is he GSM signal indicator. |
| It is always on when there is no GSM; |
| It flashes when GSM is normal; |
| It flashes quickly when transmitting data. |
| yellow LED | It is the GPS signal indicator: |
| It is always on when there is no positioning; |
| It flashes after positioning. |
Preparation Before Installation
1.1 Open the box, check is the equipment correct, are accessories
complete, otherwise
please contact your dealer;
1.2 SIM card selection, the terminal needs to insert a WCDMA/GSM
SIM card, GSM card
Unicom mobile or optionally (GSM networks worldwide),WCDMA Unicom
3G.
1.3 SIM card installation, open the terminal device, take off the
metal cover SIM card
slot, SIM card chip insert into the slot, covered with a metal slot
cover.
Note:
(1) Before installing or removing the SIM card, first turn off the
device power;
(2) Terminal SIM card need to open GPRS function;
(3) Terminal SIM card need to open the Caller ID function
(depending on customers
prefer or not;
(4) If your SIM card needs to enter SIM PIN, please consult your
phone's user manual to
turn off SIM PIN;
(5) Make sure that the SIM card has charges;
RoHS Real time Manual GPS tracker MINI 4G GPS Tracking Device Free
Cost Platform APP
FAQ:
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your
payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
