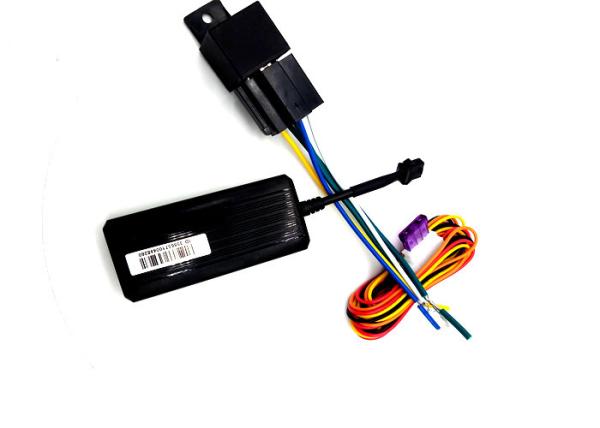

    TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker

    Ask Lasest Price
    Brand Name : Cartracker
    Model Number : GT06
    Certification : CE/ROHS/FCC/SGS ISO9000
    Price : negotiation
    Payment Terms : T/T or western Union or paypal
    Supply Ability : 10,000pcs per month
    Delivery Time : 1-10 working days after received your payment
    • Product Details
    • Company Profile

    TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker

    TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker


    Product description


    2G:GSM 850MHz,900MHz,1800MHz,1900MHz

    3G WCDMA 2100/1900/900/850MHz

    4G:FDD-LTE 800/850/900/1800/2100/2600MHz

    Cut oil or circuit (relay is optional )

    Over speed alarm

    moving alarm

    Vibration alarm

    power cutoff alarm

    Acc ignition detection

    built-in battery is 200Mah

    Microphone (optional)

    SOS button (optional)

    Relay (optional)


    Product Paramenters


    GSM Frequency
    GSM 850/900/1800/1900MHz
    Dimension
    90*40*15mm
    Weight
    50g
    Built-in Battery
    200mAh
    Colors
    Black
    Operating Voltage
    9-36VDC
    Working mode
    Normal mode
    Antenna
    Built-in GPS and GSM antenna
    Location Accuracy
    10meters
    Location time
    Hot start:≤2sec(open sky)

    Cold start:≤38sec(open sky)
    Operating Temperature
    -20℃~70℃
    Operating Humidity
    20%~80%

    TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker


    Technical parameter:


    1).GSM:850/900/1800/1900 Quad band

    2).GPRS: Class12, TCP/IP

    3).Working Voltage:9-100V DC

    4).Working current:≈22mA (12vDC)

    5).Working current:≈12mA (24vDC)

    6).GPS locating time:Cold start≈38s(Open sky)

    Warm start≈32s Hot start≈2s(Open sky)

    7).GPS Precision:10m(2D RM)

    8).Working temperature:-20℃~+70℃

    9).Working humidity:20%~80%RH


    Main componets:


    GPSfunctions:
    protocol: GT061)support ACC ignition checking
    G-sensor : BS250E2)support Relay for cutting off power/fuel
    input power: 9-100V3)built-in GPS antenna: 18*18*4 mm
    power IC: SL3036H4)built-in battery, Real time tracking
    GSM module: MT62615)Geo-fence, over speed alarm,
    GPS module: Ublox6) platform /APP supported

    Device status indicators


    LIGHTFunctions
    Red LEDConnect DC 9-100V power supply and will light continuously.
    The red LED is the power signal,
    It is always on when the external DC is connected.
    blue LEDIt is he GSM signal indicator.
    It is always on when there is no GSM;
    It flashes when GSM is normal;
    It flashes quickly when transmitting data.
    yellow LEDIt is the GPS signal indicator:
    It is always on when there is no positioning;
    It flashes after positioning.

    TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker


    Terminal Outlet Defined


    (1) Red line connects positive power;
    (2) Black line connects negative power;
    (3) Orange connects ACC;
    (4) Yellow connects relay
    Please use the original supplied power cord, the red line is the positive power supply,
    black for negative power, negative power installation, choose a separate grounding or
    connect metal, do not connect with the other ground wire together. If need ACC
    automatic anti-theft function, ensure to connect the ACC line, the device will detect the
    ACC state to decide whether to enter the security mode; If not connect to ACC line, the
    vehicle will enter the security mode, vibration occurs under the security mode, vibration
    alarm will be triggered.

    Proper Use of The Product


    Install→Power on→Settings→Register
    Installation: GPS antenna should be facing toward the sky, above the mounting location
    must be no material (such as metal, window film) absorption of electromagnetic waves
    sheltered place.

    Boot: Insert the SIM card correctly, connect the wire according to diagram, then turn on
    the power.


    Setting: Must be done, or can not do other operations, mobile phone owners send text
    messages to set the owner number and a specific number to the terminal SIM card.


    Registration: Registration method is different subject to dealer platforms, please consult
    your dealer.


    TK003 Anti Theft 4G GPS Tracking Device CAR Vehicle GPS GPRS 2G 3G 4G GPS Tracker


    Red light - Power Indicator / OBD Work Lights

    LED StatusMeaning
    Flash once in 2 secondsNormal operation / OBD working properly
    No lightShutdown / OBD sleep

    Yellow indicator light -GSM

    LED StatusMeaning
    Flash once in 2 secondsGSM initialization
    Light AlwaysGPRS is normal / already online
    No lightGSM sleep

    Blue LED light -GPS

    LED StatusMeaning
    Flash once in 2 secondsGPS signal searching
    Light AlwaysGPS targeted
    No lightGPS sleep

    FAQ:

    Q:Haw can i buy it?
    A:We accept T/T,Westem Uniton and Paypl.After we recerive your payment.

    Q:Can we put into my motorcycle?
    A:Yes,of course!it support DC9-100V voltage input for any vehicles.

    Q:Can we use your platform?
    A:yes,you can use our platform.And it is free to use.

    Q:What is the lead time if we place order to get the parcel?
    A:It needs 1-10 working days after received your payment

    What is your cell phone number?


    My mobile phone number / WhatsApp is +8613717161241. Wechat is 008613717161241
