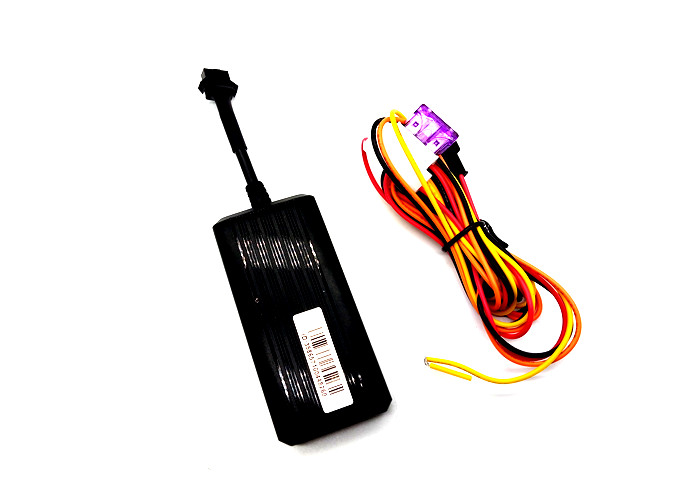

4G Car GPS Tracker Real Time Checking System Tracking Device Remote Monitor 4G GPS Tracker

Accessories:

Red＆black cable for power

Orange cable for ACC/ignition

Yellow cable for Relay

Description

4G Car GPS Tracker Real Time Checking System Tracking Device Remote Monitor 4G GPS Tracker

Functions

1. Real-Time Positioning:

C003-01-4G model GPS Tracker Device will get the real-time position message and upload all status to the server system.
And will display the position on the map. you can click any of the points to know the name. locating time. and acc status. Speed
GPS Time, direction, and so on.

2. Vibration alarm:

After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.

3. Power-off alarm:

If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.

4. Remote Car Lock

If an illegal ignition alarm receives from GPS Tracker, you can remotely cut off the vehicle circuit, so that to avoid being driven away.

4G Car GPS Tracker Real Time Checking System Tracking Device Remote Monitor 4G GPS Tracker

Technical parameter:

1).GSM:850/900/1800/1900 Quad band

2).GPRS: Class12, TCP/IP

3).Working Voltage:9-100V DC

4).Working current:≈22mA (12vDC)

5).Working current:≈12mA (24vDC)

6).GPS locating time:Cold start≈38s(Open sky)

Warm start≈32s Hot start≈2s(Open sky)

7).GPS Precision:10m(2D RM)

8).Working temperature:-20℃～+70℃

9).Working humidity:20%～80%RH

10).Measurement:90(L)×40(W)×15(H)mm

Main components: (V1.0)

GPS functions:

protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm,

GPS module: Ublox 6)platform /APP supported

4G Car GPS Tracker Real Time Checking System Tracking Device Remote Monitor 4G GPS Tracker

4G bands in different countries:
Europe / Middle East / Africa / South Korea / Thailand
EC25-E:
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8

North America
EC25-A:
LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
EC25-V:
LTE FDD: B4/B13

Australia/New Zealand/Taiwan/Brazil:
EC25-AU:
LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
EC25-AUT:
LTE FDD: B1/B3/B5/B7/B28
WCDMA: B1/B5
EC25-AUTL:
LTE FDD: B3/87/828

Japan EC25-J
LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19
