High Accurancy 3G 4G LTE Tracking Device Motorcycle Vehicle Car 4G
GPS Tracker
Description:
| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| ACC detection | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces | Voltage adaptation up to 100v |

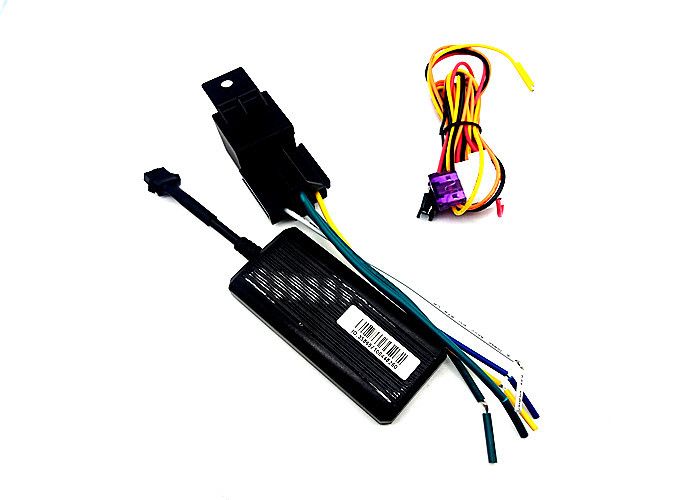

Accessories:
High Accurancy 3G 4G LTE Tracking Device Motorcycle Vehicle Car 4G
GPS Tracker
Dvice parameter
| Electronic Character: | |
| Power Supply | built-in battery |
| Work Voltage | DC9-100V |
| Work Current | ≈22mA (12vDC) |
| Work Current | ≈12mA (24vDC) |
| Battery Capacity | 200mah |
| Environment Character: | |
| Work Temp: | -20℃～+70℃ |
| Storage Temp: | -30℃～+80℃ |
| Work Humidity: | 20%～80%RH |
| Communication Character | |
| Module Brand/Chip Module | MT6261 |
| Band: | B1/B3/B8B34/B38/B390/B40/B41/BC0 |
| SIM Card: | Standard SIM card |
| Aerial: | Internal |
| GPS/BD Positioning Character: | |
| Cold start | 38s(Open sky) |
| Warm start | 32s(Open sky) |
| Hot start | 2s(Open sky) |
| Shape | |
| Dimension | 90mm*40mm*15mm |
| Weight | 50g |
Product feature
1.Precise positioning with accouracy of 5 meters
2.GPS+LBS positionging
3.Functions:ACC Detection,remote power/circuit,DC
detection,overspeed alarm,voice intercom,Geo-fence,etc…
4.Industrial design,working voltage,input:9V-100V
High Accurancy 3G 4G LTE Tracking Device Motorcycle Vehicle Car 4G
GPS Tracker
Main Feature:
| * 4G 3G 2G bands |
| * Built-in acceleration sensor for vibration alarm and power saving |
| * Built-in battery, power disconnection alarm function |
| * Super wide working voltage input range: 9-80V |
| * The ACC ignition signal detection, vehicle status indicators |
| * Arm / Disarm |
| * Watchdog function, reboot automatically after breakdown |
| * Suitable for Vehicles/Cars/Motorcycles/E-bike etc |
| * SOS ,microphone ,Relay is optional |
Main components
GPS functions:
protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm,
GPS module: Ublox 6)platform /APP supported
High Accurancy 3G 4G LTE Tracking Device Motorcycle Vehicle Car 4G
GPS Tracker
Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place :
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure
the receiving side of the device is face up and without metal
cover.
Note:The metal cover will lessen the receiving of GPS signals.
Q1: What kind of SIM card do your devices support?
Re: It support global quad band(850/900/1800/1900) SIM card, 2G GSM
network, and enable GPRS flow;
Q2: Can i build my own platform, and only use your device?
Re: Yes, of course, you can build your own plaftform, by our
offering GPRS protocol, if you want our help to build a independent
platform, it will cost technical fee, details you can contact us
directly;
Q3: Can i make my own distributor account on your platform?
Re: Yes, you can, if you are a distributor or want to be a
distributor, please share all your IMEIs of devices, and then we
can
make a distributor account for you, Available to manage your
devices.
Q4: Is there phone APP, support Android and IOS system?
Re: yes, you can download the latest app here,
www.19gps.net,www.dyegoo.net and it support android and IOS, no
Windows OS;
Q5: How about your platform cost?
Re: Free for lifetime;
