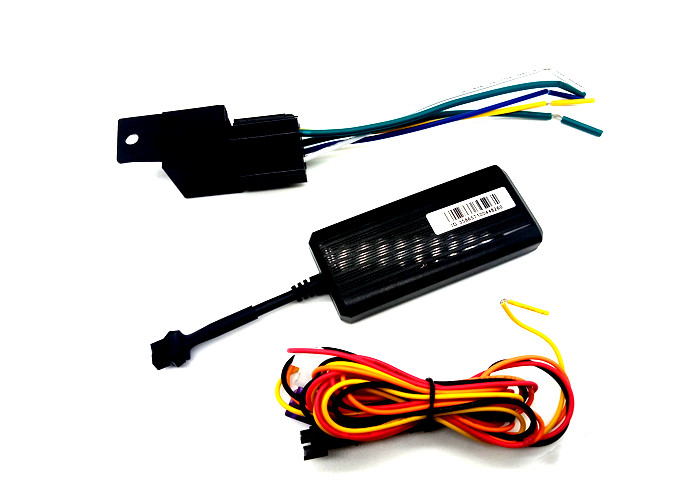

GPS Mini Smart Electronic fence Tracker 2G 3G 4G Tracking System 4G GPS Tracker
| Model | GT06 |
| Features | Vehicle malfunction diagnostics |
| Device Dimension | 90mm(L)*40mm(W)*15mm(H) |
| Weight | 50g |
| Quad Band | 850/1900/900/1800MHz |
| GPS Accuracy | 5-10m |
| Voltage Input | 9-100v |
| | Hot Start<2S(Open Sky) |
| Positioning Time | Warm Start<15S |
| | Cold Start<32S(Open Sky) |
| Tracking Sensitivity | -162dBm |
| GPS chip | MTK6261 |
| GSM/GPS Antenna | Built-in Design |
Product feature
1.Precise positioning with accouracy of 5 meters
2.GPS+LBS positionging
3.Functions:ACC Detection,remote power/circuit,DC
detection,overspeed alarm,voice intercom,Geo-fence,etc…
4.Industrial design,working voltage,input:9V-100V
GPS Mini Smart Electronic fence Tracker 2G 3G 4G Tracking System 4G GPS Tracker
Dvice parameter
| Electronic Character: | |
| Power Supply | built-in battery |
| Work Voltage | DC9-100V |
| Work Current | ≈22mA (12vDC) |
| Work Current | ≈12mA (24vDC) |
| Battery Capacity | 200mah |
| |
| Environment Character: | |
| Work Temp: | -20℃～+70℃ |
| Storage Temp: | -30℃～+80℃ |
| Work Humidity: | 20%～80%RH |
| |
| Communication Character | |
| Module Brand/Chip Module:MT6261 | |
| Band:B1/B3/B8B34/B38/B390/B40/B41/BC0 | |
| SIM Card: | Standard SIM card |
| Aerial: | Internal |
| |
| GPS/BD Positioning Character: | |
| Cold start | 38s(Open sky) |
| Warm start | 32s(Open sky) |
| Hot start | 2s(Open sky) |
| |
| Shape | |
| Dimension | 90mm*40mm*15mm |
| Weight | 50g |
GPS Mini Smart Electronic fence Tracker 2G 3G 4G Tracking System 4G GPS Tracker
4G bands in different countries:
Europe / Middle East / Africa / South Korea / Thailand
EC25-E:
LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8
North America
EC25-A:
LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
EC25-V:
LTE FDD: B4/B13
Australia/New Zealand/Taiwan/Brazil:
EC25-AU:
LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8
EC25-AUT:
LTE FDD: B1/B3/B5/B7/B28
WCDMA: B1/B5
EC25-AUTL:
LTE FDD: B3/87/828
GPS Mini Smart Electronic fence Tracker 2G 3G 4G Tracking System 4G GPS Tracker
Remote monitoring
Specific number can monitor GPS device SIM card number
SMS:88
Note: Need to set the owner number and SOS specific number at first
SMS Text Query Location Information
1 When you need to query the terminal device location information,
you can text
messages send to the SIM card on the device, the device will reply
the last location.
SMS: 123
2 Owner number call the device reply location information, ring
twice then hang up.
3 Google Link SMS: g1234
Speed Alarm Settings
Overspeed alarm SMS Speed Limit:
speed123456 080
Setting the speed limit of 80 km / h
1 Turn off speed alarm SMS (default)
speed123456 000
Re: speed ok
2 Turn on speed alarm SMS
speed123456 080
Re: speed ok
Q1: What kind of SIM card do your devices support?
Re: It support global quad band(850/900/1800/1900) SIM card, 2G GSM
network, and enable GPRS flow;
Q2: Can i build my own platform, and only use your device?
Re: Yes, of course, you can build your own plaftform, by our
offering GPRS protocol, if you want our help to build a independent
platform, it will cost technical fee, details you can contact us
directly;
Q3: Can i make my own distributor account on your platform?
Re: Yes, you can, if you are a distributor or want to be a
distributor, please share all your IMEIs of devices, and then we
can
make a distributor account for you, Available to manage your
devices.
Q4: Is there phone APP, support Android and IOS system?
Re: yes, you can download the latest app here,
www.19gps.net,www.dyegoo.net and it support android and IOS, no
Windows OS;
Q5: How about your platform cost?
Re: Free for lifetime;
