Mini GPS and LBS dual-mode Positioning 4G GPS Tracker with Wechat
Search Vehicles
| SMS Command list |
| NO. | Item | SMS Commands format | Remarks |
| 1 | Check Device Status | STATUS# | |
| 2 | Check Device parameters | PARAM# | |
| 3 | Check GPRS Parameters | GPRSSET# | |
| 4 | Check Device Lat. And Log. | WHERE# | |
| 5 | Set Server IP or Domain name | - Set Server Domain name:
SERVER,1,domain name,port,0# - Set Server IP:
SERVER,0,IP,Port,0# The last bit 0 stands for TCP | |
| 6 | Check Server parameters | SERVER# | |
| 7 | Reset Device | RESET# | The terminal will restart after 1 minutes |
| 8 | Add SOS Number | SOS,A, Number 1,Number 2,Number 3# | |
| 9 | Del SOS Number | SOS,D,No. 1,No. 2,No. 3# | |
| 10 | Check SOS Number | SOS# | |
| 11 | Add Center number | CENTER,A,Number# | Only SMS NUMBER CAN SET CENTER NUMBER |
| 12 | Del Center number | CENTER,D# | |
| 13 | GPS DATA upload time interval | TIMER,T1,T2# T1=0,5～18000seconds; ACC ON time interval
T2=0,5～18000seconds ACC OFF time interval Example: TIMER,30,300# | |
| 14 | Check time interval | TIMER# | |
| 15 | Control Relay | RELAY,A#
A=0/1 0 stands for on 1 stands for off Example: RELAY,0# | |

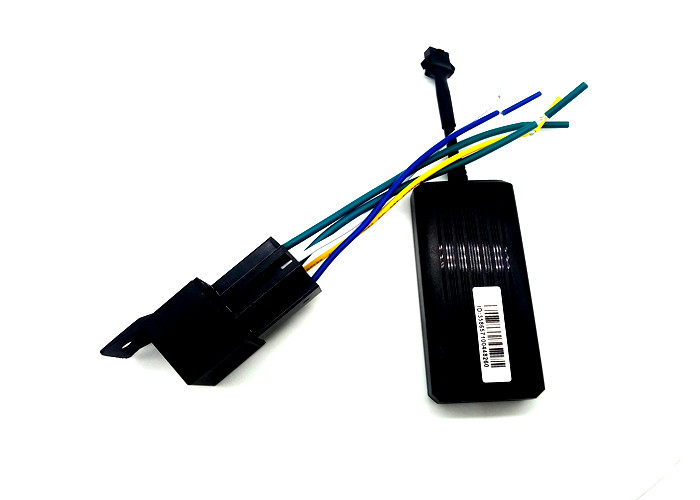

Accessories:
Red＆black cable for power
Orange cable for ACC/ignition
Yellow cable for Relay
Mini GPS and LBS dual-mode Positioning 4G GPS Tracker with Wechat
Search Vehicles
Parameter:
| Model | GT06 |
| Features | Vehicle malfunction diagnostics |
| Device Dimension | 90mm(L)*40mm(W)*15mm(H) |
| Weight | 50g |
| Quad Band | 850/1900/900/1800MHz |
| GPS Accuracy | 5-10m |
| Voltage Input | 9-100v |
| | Hot Start<2S(Open Sky) |
| Positioning Time | Warm Start<15S |
| | Cold Start<32S(Open Sky) |
| Tracking Sensitivity | -162dBm |
| GPS chip | MTK6261 |
| GSM/GPS Antenna | Built-in Design |
Components:
| GPS | functions: |
| protocol: GT06 | 1)support ACC ignition checking |
| G-sensor : BS250E | 2)support Relay for cutting off power/fuel |
| input power: 9-100V | 3)built-in GPS antenna: 18*18*4 mm |
| power IC: SL3036H | 4)built-in battery, Real time tracking |
| GSM module: MT6261 | 5)Geo-fence, over speed alarm, |
| GPS module: Ublox | 6) platform /APP supported |
Mini GPS and LBS dual-mode Positioning 4G GPS Tracker with Wechat
Search Vehicles
Preparation Before Installation
1 Open the box, check is the equipment correct, are accessories
complete, otherwise please contact your dealer;
2 SIM card selection, the terminal needs to insert a WCDMA/GSM SIM
card, GSM card Unicom mobile or optionally (GSM networks
worldwide),WCDMA Unicom 3G.
3 SIM card installation, open the terminal device, take off the
metal cover SIM card slot, SIM card chip insert into the slot,
covered with a metal slot cover.
Note:
(1) Before installing or removing the SIM card, first turn off the
device power;
(2) Terminal SIM card need to open GPRS function;
(3) Terminal SIM card need to open the Caller ID function
(depending on customers prefer or not);
(4) If your SIM card needs to enter SIM PIN, please consult your
phone's user manual to turn off SIM PIN;
(5) Make sure that the SIM card has charges;
Mini GPS and LBS dual-mode Positioning 4G GPS Tracker with Wechat
Search Vehicles
Owner password settings
Owners can only bind one mobile number, the last mobile number of
binding is effective. bind a certain mobile number, other mobile
number can not be reached or connected.
The default owner password is: 123456
Set owner number is: admin123456 13712345678
Re: Welcome and thank you for choosing Poronix GPS tracker, admin
ok
Modify owner password: password123456 666888 (666888 for the new
password)
Re: password ok
Set a SOS specific number
Specific number for the alarm number, , you can send an SMS
instruction to add SOS number, you can add two specific number SOS,
101 is the default owner number, 102 for the first SOS specific
number, 103 for the second SOS specific numbers, in the alarm
state, the device will send location information or SOS to a
specific number (information is based on whether the set needs),
and the cycle call until the dial up. Before setting specific
numbers, all numbers can be set and query. After set a specific
number, without a password can only be associated with the specific
number set.
Warranty
In particular that:
1. Any technical changes to the product in the future without prior
notice.
2. Any changes of appearance, color of products, to prevail in
kind.
3. The warranty card is only available in the following listed IMEI
/ ID Number warranty
Services.
4. Please keep this service card, please show this card and the
original purchase receipt
for warranty.
5. See the table below illustrate specific warranty.
This card is a basic warranty certificate, user please fill out the
card and keep it.
