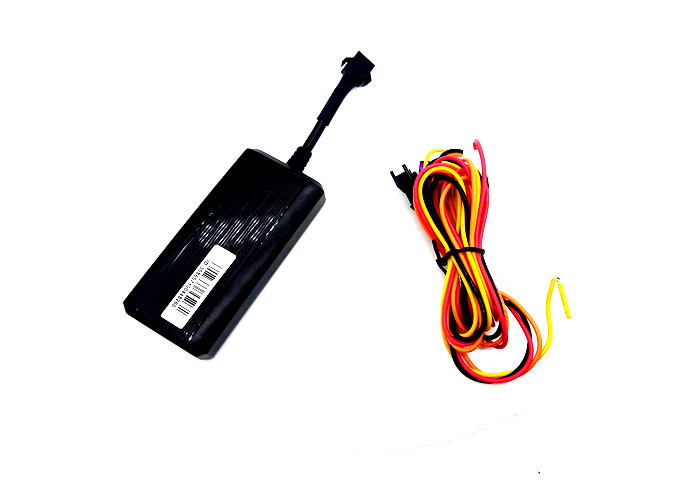

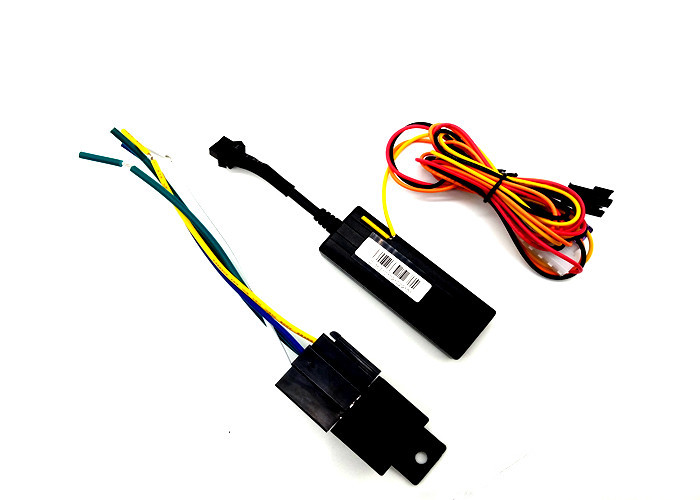

C003-01-4G Model 4G GPS Precision Tracking Device Supported Relay
Built-in Battery
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite
global position system .
band : 4G (FDD-LTE 800/850/900/1800/2100/2600MHz)
3G (WCDMA 2100/1900/900/850MHz)
2G (GSM 850MHz,900MHz,1800MHz,1900MHz)
Feature
1.Built-in GSM, GPS antenna, small size, beautiful and elegant.
2.Support GPS and LBS (Location based service) dual tracking
solutions.
3.Support transferring the position data through SMS, GPRS and
internet
4.Support remote configurations
C003-01-4G Model 4G GPS Precision Tracking Device Supported Relay
Built-in Battery
| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| ACC detection | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces | Voltage adaptation up to 100v |
Product Parameters:
| Model | GT06 |
| Features | Vehicle malfunction diagnostics |
| Device Dimension | 90mm(L)*40mm(W)*15mm(H) |
| Weight | 50g |
| Quad Band | 850/1900/900/1800MHz |
| GPS Accuracy | 5-10m |
| Voltage Input | 9-100v |
| | Hot Start<2S(Open Sky) |
| Positioning Time | Warm Start<15S |
| | Cold Start<32S(Open Sky) |
| Tracking Sensitivity | -162dBm |
| GPS chip | MTK6261 |
| GSM/GPS Antenna | Built-in Design |
C003-01-4G Model 4G GPS Precision Tracking Device Supported Relay
Built-in Battery
Main function:
1.For all models vehicles(12-24v)
2.Location based service(LBS) + GPS double tracking solution
3.GPS blind spot alert
4.multi power-saving mode :
Sleep by time / shock sensor
deep sleep
awake at specific time
5.Save GPRS traffic mode(Money save mode)
6.Anti-theft gsm alarms:
Movement alarm
Geo-fence alarm
Over speed alarm
ext.power off alarm
low battery alarm
7.Alarms under ARM State: ACC/Shock alarms
8.Remotey shutdown engine .
9.Built-in 200mA polymer battery
10.SMS tracking on cell phone with google map link
11.Absolute street address by SMS
12.Web server, free PC tracking soft, Mobile phone APP
| Place of Origin | Shenzhen China |
| Network | GSM/GPRS 850/900/1800/1900MHz |
| Certificate | CE ROHS FCC |
| Warranty | 2years |
| Function | 4G GPS Tracking |
| Battery | 200mAH |
| Operation System | Andorid IOS |
| GPRS | Class12, TCP/IP |
C003-01-4G Model 4G GPS Precision Tracking Device Supported Relay
Built-in Battery
| SMS Command list |
| NO. | Item | SMS Commands format | Remarks |
| 1 | Check Device Status | STATUS# | |
| 2 | Check Device parameters | PARAM# | |
| 3 | Check GPRS Parameters | GPRSSET# | |
| 4 | Check Device Lat. And Log. | WHERE# | |
| 5 | Set Server IP or Domain name | - Set Server Domain name:
SERVER,1,domain name,port,0# - Set Server IP:
SERVER,0,IP,Port,0# The last bit 0 stands for TCP | |
| 6 | Check Server parameters | SERVER# | |
| 7 | Reset Device | RESET# | The terminal will restart after 1 minutes |
| 8 | Add SOS Number | SOS,A, Number 1,Number 2,Number 3# | |
| 9 | Del SOS Number | SOS,D,No. 1,No. 2,No. 3# | |
| 10 | Check SOS Number | SOS# | |
FAQ:
| Q:Haw can i buy it? |
| A:We accept T/T,Westem Uniton and Paypl.After we recerive your
payment. |
| Q:Can we put into my motorcycle? |
| A:Yes,of course!it support DC9-100V voltage input for any vehicles. |
| Q:Can we use your platform? |
| A:yes,you can use our platform.And it is free to use. |
| Q:What is the lead time if we place order to get the parcel? |
| A:It needs 1-10 working days after received your payment |
