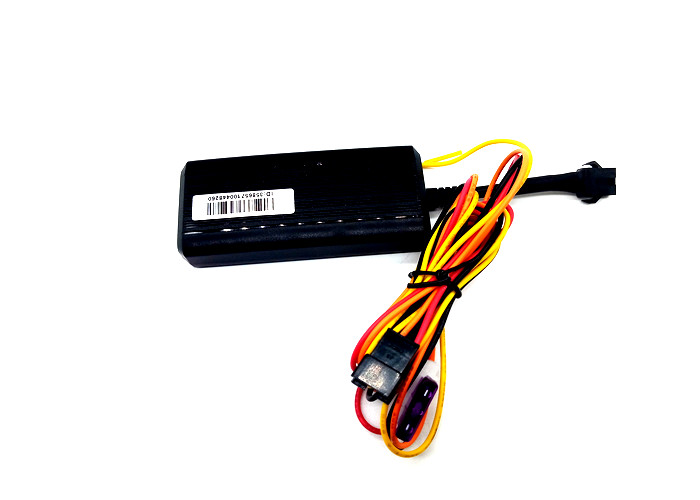

Mini GPS Tracking free Platform for Car Trucks Motorcycle
Anti-theft Vibration Alarm 4G GPS Tracker
Description
| Content | Specs. |
| Dim. | 90 mm x40 mm x 15 mm |
| Weight | 50g |
| Network | GSM/GPRS/GPS |
| Band | FDD-LTE 800/850/900/1800/2100/2600MHz |
| GPS chip | U-B |
| GSM module | MTK6261 |
| GPS accuracy | 10m |
| GPS locating time | Cold start≈38s(Open sky) |
| Warm start≈32s(Open sky) |
| Hot start≈2s(Open sky) |
| Work voltage | DC9V-100V |
| Storage Temp. | -40°C to +85°C |
| Humidity | 20%--80%RH |
Mini GPS Tracking free Platform for Car Trucks Motorcycle
Anti-theft Vibration Alarm 4G GPS Tracker
Frequency
| 2G | GSM 850MHz,900MHz,1800MHz,1900MHz |
| 3G | WCDMA 2100/1900/900/850MHz |
| 4G | FDD-LTE 800/850/900/1800/2100/2600MHz |
4G Band
Europe / Middle East / Africa / South
Korea / Thailand EC25-E: | LTE FDD: B1/B3/B5/B7/B8/B20
LTE TDD: B38/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8 |
North America EC25-A
EC25-V | LTE FDD: B2/B4/B12
WCDMA: B2/B4/B5
LTE FDD: B4/B13 |
Australia/New Zealand/Taiwan/Brazil
EC25-AU | LTE FDD: B1/B2*/B3/B4/B5/B7/B8/B28
LTE TDD: B40
WCDMA: B1/B2/B5/B8
GSM: B2/B3/B5/B8 |
Japan
EC25-J | LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19 |
Mini GPS Tracking free Platform for Car Trucks Motorcycle
Anti-theft Vibration Alarm 4G GPS Tracker
Functions:

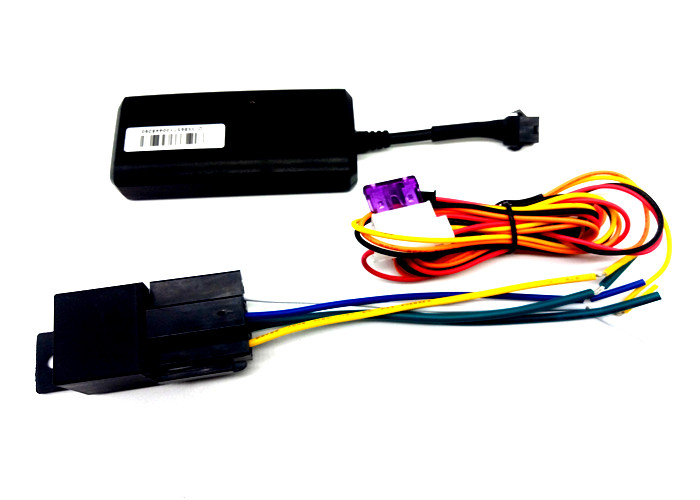

| Remote cut-off (petrol/power) | Light and compact |
| Compel the vehicle to stop by breaking off the fuel connection | Small size allowing covert & easy mounting |
| ACC detection | GPS + LBS Positioning |
| Be aware of the ignition status where you need | Allow the location to be pinpointed in real time |
| Tracked by: SMS, APP, Web | voltage range:9-100V |
| Reports location in real time through different interfaces | Voltage adaptation up to 100v |
Electric fence.
Electronic fences are usually used for vehicle theft prevention,
wind control area protection, and also for customer reception. When
the vehicle enters or leaves the area, the device will send out an
alarm message so that the owner can know it in time.
Drawing electronic fence.
You can draw the electronic fence freely, you can draw a circle
directly with the device as the center, and set the radius freely.
It is also possible to draw a polygonal pattern so that multiple
devices can share the electronic fence area.
ACC detection.
After listening to the ACC connection to judge whether the vehicle
is started, if the vehicle starts, it will show that ACC is
connected.It is often used for illegal start alarms.
ACC line,when the vehicle starts,the ACC line will generate
voltage,the GPS tracker can detect the start of the car.
Vehicle start detection.
ACC line, when the vehicle starts, the ACC line will generate
voltage, the GPS tracker can detect the start of the car.
In theory, when the vehicle is started, a certain wire on the
vehicle changes from a non-electric state to an electric state, and
the ACC wire can be connected to this wire.
The ACC line on the device is generally an orange line.
Mini GPS Tracking free Platform for Car Trucks Motorcycle
Anti-theft Vibration Alarm 4G GPS Tracker
Q1: What kind of SIM card do your devices support?
Re: It support global quad band(850/900/1800/1900) SIM card, 2G GSM
network, and enable GPRS flow;
Q2: Can i build my own platform, and only use your device?
Re: Yes, of course, you can build your own plaftform, by our
offering GPRS protocol, if you want our help to build a independent
platform, it will cost technical fee, details you can contact us
directly;
Q3: Can i make my own distributor account on your platform?
Re: Yes, you can, if you are a distributor or want to be a
distributor, please share all your IMEIs of devices, and then we
can
make a distributor account for you, Available to manage your
devices.
Q4: Is there phone APP, support Android and IOS system?
Re: yes, you can download the latest app here,
www.19gps.net,www.dyegoo.net and it support android and IOS, no
Windows OS;
Q5: How about your platform cost?
Re: Free for lifetime;
