YTWL_CA100F Road Ethiopia Standard Vehicle Electronic GPS Speed
Limiter For Ethiopia
Supply and Installation of Speed Limiter with the integrated GPS
system on 200 units of vehicles
Reference: ITB/2020/13893
Beneficiary Country: Ethiopia
Registration level: Basic
Ethiopia has provisionally agreed on new rules that state speed
limiters will become mandatory for all vehicles sold throughout the
country.
Road Speed Limiters were developed to improve safety and the
environment by controlling the speed of vehicles, thus reducing
serious accidents and pollution. The basic function of the system
is to limit the maximum speed of a vehicle to a pre-set level
without affecting any of the performance of the vehicle.
Product Function:
| Limiting Mode | Limiting Function Introduction |
| extension functions | 1) Mainly used in Kenya to control vehicle speed and further expand
the market for auto speed limiters in Ethiopia. |
| 2) Vehicle speed pulse detection; it is a speed limiter and also a
GPS tracker, surpassing the traditional GPS tracker. |
| 3) One channel high input detection, one channel low input
detection; |
| 4) One channel power-off control output, one channel oil-off
control output; |
| 5) Three channels of analog input. One is used for fuel consumption
data detection, another is used for the ordinary analog voltage
detection, the third one is for standby; |
| 6) One channel RS232 defining interface; |
| 7) One channel RS232/RS458 compatible interface; |
| 8) The (G-SENSOR) acceleration sensor interface reserved, can open
for some customer need. |
YTWL_CA100F Road Ethiopia Standard Vehicle Electronic GPS Speed
Limiter For Ethiopia
Product Description

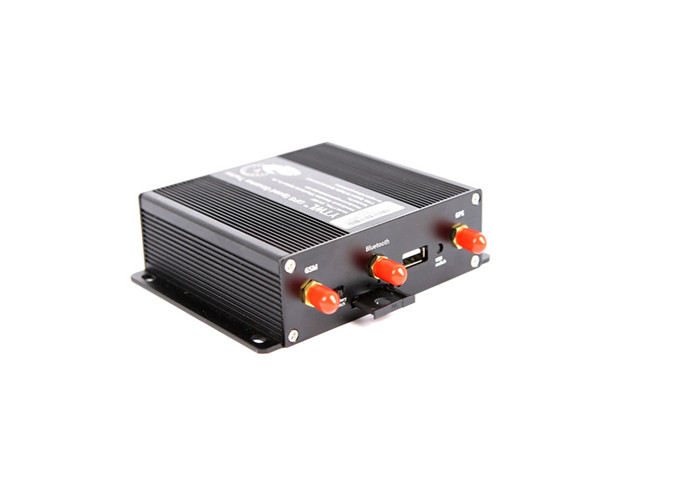

Vehicle speed limiter CA100F is intelligent terminal equipment that
can realize precise speed limits for vehicles. It is not only a
speed limiter but also a GPS Tracker.
The retrieved data shall be in a format that the motor vehicle
inspection officer will be able to understand without requiring the
services of a speed limiter specialist.
The speed limiting device shall be so designed, constructed, and
assembled so as to resist vibrations, corrosion, dust, humidity,
petrochemicals, and aging phenomena to which it may be exposed.
No malfunction or unauthorized interference shall result in an
increase in engine power above the demanded by the position of the
driver's accelerator. The malfunction of the speed limiter devices
shall not affect the normal vehicular performance;
2. Technical Parameter:
| Positioning | Mode | GPS/BDS | Support to provide single GPS module or change according to project
requirements. |
| Sensitivity | Capture: -148dBm Track: -162dBm |
| Start Time | 36s |
| Voice | Buzzer | Built-in buzzer | Supports speeding alarm, fatigue alarm, and driver not logged in
alarm. |
| USB | USB | USB 2.0 | Collect device data or perform local upgrades through U disk. |
| Speed limit | Device log | Record devise on/off, speeding, cut pulse velocity line, cut GPS
antenna. | |
| Speed warning | When the vehicle speed is close to the limit threshold, the buzzer
will alarm. | Example: Set a speed limit of 80km/h, and an alarm will be
triggered when the vehicle speed reaches 75km/h. |
| Judgment method | GPS/Pulse speed | Judge whether the speed limit threshold is reached by GPS speed or
vehicle pulse speed. |
| Configure speed limit parameters | Support | Default 80km/h |
| Black box | Driving record | 1 s/data can store 48 hours of records. | Record vehicle speed, vehicle status, and driving time. |
| Location record | 60 s/data can store 360 hours of records. | Record the position coordinates and average speed of the vehicle. |
| Accident doubt | Store 20 second record (0.2 s/data, total 100 data) before parking. | Record the speed, time, status, and location of the vehicle. |
| Fatigue driving | Record the start/end time and location information of fatigue
driving. | Related parameters can be set. |
| Driver ID info | Record driver information. | Realized by RFID or I button. |
| Mileage statistics | Record driving mileage | Accuracy: 0.1 km |
| Device info | Record of the device: VIN, Vehicle plate, Pulse coefficient,
Initial installation time/mileage. | |
| Device log | Record device on/off and parameter modification data. | The last 100 data, loop coverage. |
| Hardware | Working voltage | 9V-36V | |
| Working current | 100mA | |
| Working temperature | -30℃~+70℃ | |
| Storage temperature | -40℃~+85℃ | |
| Battery | 200mAh | Standby time: half an hour |
YTWL_CA100F Road Ethiopia Standard Vehicle Electronic GPS Speed
Limiter For Ethiopia
The following lines are indispensable in the installation:
6: Brown line
8: Orange line, the line of the buzzer
9: Grayline, pick up the pulse line of the original car, connect
the pulse line speed limiter, the speed limit function will not
have too much delay, use GPS signal speed limit, there will be a
delay of about 2 seconds
10: ACC line
11: Power ground
12: Positive power supply
