4G LTE CAT 1 Connectivity GPS Tracker Real-Time Monitoring With
Geo-Fence Alarm
Main components: (V1.0)
COMPACT 4G GPS TRACKER - Perfect for tracking vehicles, loved ones
(teens, spouses, children, elderly), or assets. With its sleek and
compact design, it easily slips into cars, backpacks, strollers,
luggage and is highly concealable. With 2G coverage slowly coming
to an end, now is the time to upgrade to 4G.
REAL-TIME SMARTPHONE & PC TRACKING – With lighting fast 4G LTE this
GPS tracker offers real-time tracking
- GEO-FENCING, SMART ALERTS & REPORTS - Create custom geo-fencing
zones that alert you anytime the GPS tracker enters or exits a
zone. Speed limit, harsh braking, start/stop and proximity alerts
allow you to easily track your vehicles and loved ones. Receive
text, push and email notifications directly to your smartphone or
PC with the Amcrest GPS app and desktop web-access client. Access
your data with intelligent reporting directly from your iPhone,
Android, Mac, or PC.
GPS Tracker Parameters:
| Working Voltage: | DC9-100V or 12-40V, optional. |
| GSM Chip: | MT6261 |
| GPS Chip: | AT6558R |
| MPS | 9486 |
| Working temperature: | ‘-20 ℃ to +70 ℃ |
| Storage temperature: | ’-40 ℃ to +80 ℃ |
| Working Humidity: | 5% to 90% |
| Power consumption: | Average power consumption<1W, power-saving status<2mW |
| GPS Tracker size: | 90mm*40mm*15mm |
| Interface: | Power input, ACC input detection, cut-off fuel circuit. |
| Communication band: | GSM/GPRS 850MHz 900MHz 1800MHz 1900MHz |
| Weight: | 50g
|
Device status indicators
4.1 Connect DC 9-100V power supply and the red LED will light
continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
4.2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
4.3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
4G LTE CAT 1 Connectivity GPS Tracker Real-Time Monitoring With
Geo-Fence Alarm

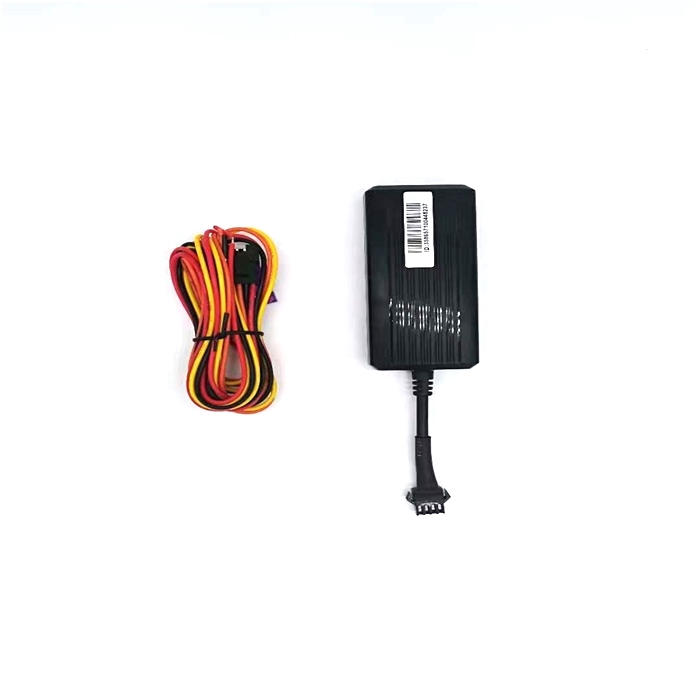

Terminal connection:
male switch, Female switch
Red(positive) Black (Negative)
1. red wire connect positive(+),black wire connect negative(-)
2. power input connector to power positive and negative connectors(
make sure to connect the right connector)
set server IP or Domain name
1. Set server Domain name: SERVER,1, domain name, port,0#
2. Set Server IP:
SERVER,0,IP, Port,0#
The last bit 0 stands for TCP
4. When all indicators lighted and flashed normally means GPS
Tracker works. now send SMS command to
communication network, you will receive a GPS Tracker status report
by SMS.
2.2 Device LED light status
2.2.1 Red LED (Power supply/working)
| Light status | Meaning |
| light | Working normal |
| off | Power off |
2.2.2 Yellow LED (GSM signal)
| Light status | Meaning |
| Quick flash 1 time within 2 seconds | GSM initialization |
| light | GPRS normal communication/online |
| off | GSM sleep/power off |
2.2.3 Blue LED (GPS signal)
| Light status | Meaning |
| Quick flash 1 time within 2 seconds | GPS signal searching |
| light | GPS location finished |
| off | GPS sleep/power off |
4G LTE CAT 1 Connectivity GPS Tracker Real-Time Monitoring With
Geo-Fence Alarm
GPS Tracker Main Functions:
1. Real-Time Positioning:
4G GPS Tracker Device will get the real-time position message and
upload all status to the server system.
And will display the position on the map. you can click any of the
points to know the name. locating time. and acc status. speed
GPS Time, direction, and so on.
2. Vibration alarm:
After setting the command of vibration by SMS. When it moves there
will be a vibration alarm message.
3. Power-off alarm:
If the power supply of GPS Tracker is cut off or GPS Tracker will
send the alarm message to the server or bonded Phone number.
4. Remote Car Lock
If an illegal ignition alarm receives from GPS Tracker, you can
remotely cut off the vehicle circuit, so that to avoid being driven
away.
5. SOS Alarm
Users can press the SOS button on GPS Tracker in emergency
situations. GPS Tracker will send an alarm message to manage the
system and
Call police simultaneously.
App operation
Login location service platform
Users can log in to the global positioning service platform
provided by the dealer, to check the location and status of the
vehicle, and perform corresponding operations. Please consult your
dealer for the service platform website.
Platform login on computer:
For individual users, please login with the device ID number. The
ID number is on the device body and also on the package box. When
logging in to the platform, please select IEIM/License number to
log in. The default password is: 123456
Enterprise users and fleet users please select the username to log
in. User name and password are set by the dealer, please contact
your dealer for distribution!
Android APP download, please scan the QR code on the computer, and
if Apple mobile phone, please search the APP name in the App store.
