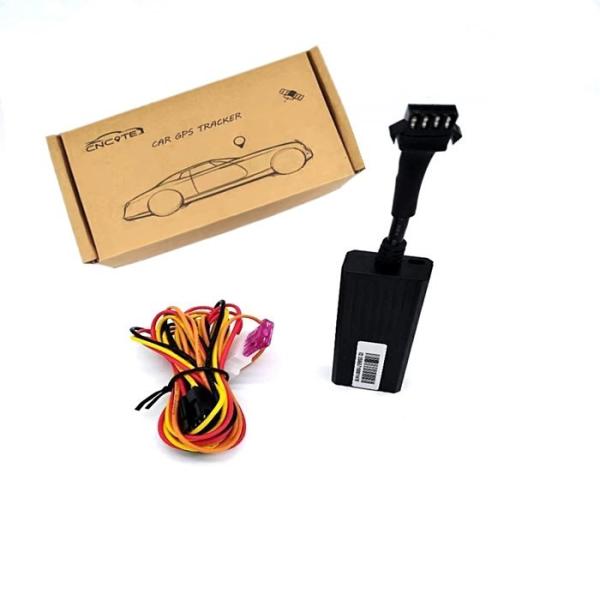

TK003 Waterproof Boat Tracking Key Size Smart GPS Device Cars
Motorcycles Vehicles
Main components: (V1.0)
GPS functions:
protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm, GPS module: Ublox
6) platform /APP supported
Product Parameters
| Device Name | Vehicle GPS Tracker |
| Model | TK003 |
| Features | Multiple functions |
| Device Dimension | 83mm(L)*40mm(W)*14mm(H) |
| Box Dimension | 130mm(L)*90mm(W)*30mm(H) |
| Device Weight | 38g |
| Package Weight | 200g |
| Quad-Band | 850/1900/900/1800MHz |
| GPS Accuracy | 5-10m |
| Voltage Input | 9-90v |
| Back-up Battery | 250mAh |
| Positioning Time | Hot Start<2S(Open Sky) |
| Warm Start<15S |
| Cold Start<32S(Open Sky) |
| GPS Sensitivity | -144dBm |
| Tracking Sensitivity | -160dBm |
| Operating Temperature | -25℃—75℃ |
| GPS chip | MTK |
| GSM/GPS Antenna | Built-in Design
|
Multi-Mode Positioning: BD GPS LBS
Device status indicators
4.1 Connect DC 9-100V power supply and the red LED will light
continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
4.2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
4.3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
TK003 Waterproof Boat Tracking Key Size Smart GPS Device Cars
Motorcycles Vehicles
Functions
| Real-time Tracking | update position every 10 seconds with continuous tracking. |
| Fast Positioning | provide a timely positioning service after installing it. |
| Trace Playback | check the history trace of your vehicle to help you find useful
information. |
| Mileage Report | can help you to know how far you drive. |
| Over-speed Alarm | when your speed is over what you set, it will send an alarm to
remind you to keep safe. |
| Geo-fence Alarm | users can set a range of geofence on the map with a circle,
polygon, or customize the shape, and it will alarm when the device
gets in or out of preset range via APP or SMS. |
| Remotely Cut-off Petrol/Electricity | Remote control vehicle engine via the platform, app, or SMS to
avoid someone driving the vehicle illegally. |
| SOS Emergency Call | makes an emergency call when in danger. |
| Remotely Voice Monitoring | remotely hear the sound around the vehicle |
| Platform/APP/SMS Checking | various methods like platform, app, SMS to check asset status.
|
TK003 Waterproof Boat Tracking Key Size Smart GPS Device Cars
Motorcycles Vehicles
GPS Tracker Main Functions:
1. Real-Time Positioning:
TK003 GPS Tracker Device will get the real-time position message
and upload all status to the server system.
And will display the position on the map. you can click any of the
points to know the name. locating time. and acc status. speed
GPS Time, direction, and so on.
2. Vibration alarm:
After setting the command of vibration by SMS. When it moves there
will be a vibration alarm message.
3. Power-off alarm:
If the power supply of GPS Tracker is cut off or GPS Tracker will
send the alarm message to the server or bonded Phone number.
4. Remote Car Lock
If an illegal ignition alarm receives from GPS Tracker, you can
remotely cut off the vehicle circuit, so that to avoid being driven
away.
Terminal connection:
male switch, Female switch
Red(positive) Black (Negative)
1. red wire connect positive(+),black wire connect negative(-)
2. power input connector to power positive and negative connectors(
make sure to connect the right connector)
