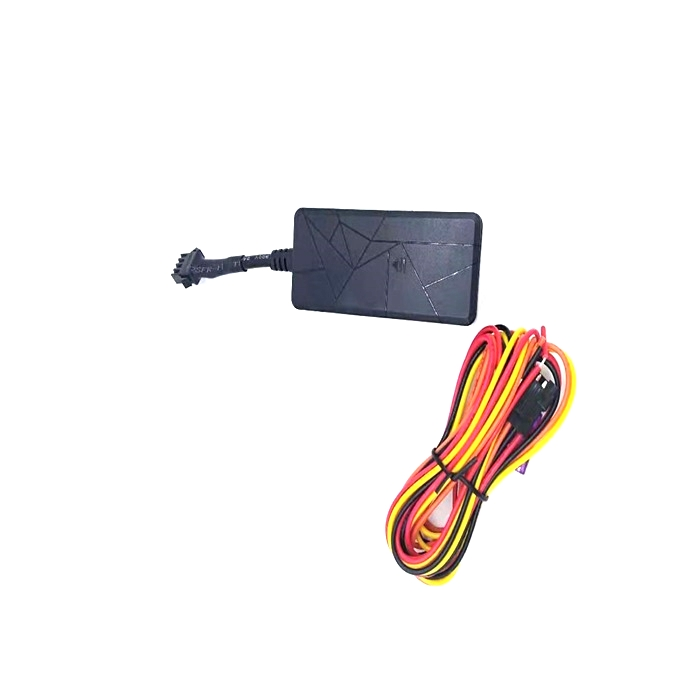

Cheapest 4G LTE Mini GPS Tracker For Vehicle/Truck/E-Bike Real-Time
Tracker Remote Engine
Specification:
| Content | Specs. |
| Dim. | 75(L)x32(W)x15(H) mm |
| Weight | 52g |
| Network | 4G LTE/3G/2G |
| Band |
LTE-FDD : B2/B4/B5/B12/B13 WCDMA: B2/B5 Asia-Europe LTE-FDD:B1/B3/B5/B7/B8/B20 LTE-TDD : B38/B39/B40/B41 WCDMA: B1/B5/B8 GSM: 900/1800mHz South America -Australia LTE-FDD : B1/B2/B3/B4/B5/B7/B8/B28 LTE-TDD : B40 WCDMA : B1/B2/B5/B8 GSM: 850/900/1800/1900mHz
|
| GPS chip | MTK |
| GSM/GPRS module | SIM7600 |
| GPS sensitivity | -159dBm |
| GPS accuracy | 20m |
| Time To First Fix | Cold status 45s Warm status 35s Hot status 1s |
| Working Voltage | 9-78V |
| Accuracy | 5-20m |
| Battery | 3.7V 200MAH |
| Standby | 5-9 hours without connecting the power supply of the vehicle |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +55°C |
| Humidity | 5%--95% non-condensing |
Multi-Mode Positioning: BD GPS LBS
Product accessories
2. 1.1 Power cable
3. 1.2 User Guide
4. 1.3 Microphone (optional)
5. 1.4 SOS button (optional)
6. 1.5 Relay (optional)
7. 2. Product Features
8. 2.1 Support global gsm850/900/1800/1900mhz,
wcdma850/900/1900/2100 Mhz network frequency band;
9. 2.2 Wide operating input voltage range: 9-80VDC;
10. 2.3 GPS / LBS real-time positioning, support the computer to
track the car, mobile search vehicles, and WeChat search vehicles;
11. 2.4 Support SMS text query location information;
12. 2.5 ACC ignition signal is detected, the vehicle prompted the
state;
13. 2.6 Built-in vibration sensor, to achieve intelligent vehicle
anti-theft;
14. 2.7 Able to set a specific number for SOS alarm and burglar
alarm;
15. 2.8 SOS switch button for the emergency call for help;
Cheapest 4G Mini Size GPS Tracker For Vehicle Real-Time Tracking
GSM/GPRS
Frequently used commands:
| Command | Explain | Reply content |
| IMEI# | IMEI query | IMEI: 116790246811200 |
| IMEI,116790246811200# | Set IMEI | OK |
| FACTORY# | Restore factory settings | OK, The terminal will restart after 30 seconds! |
| RESET# | restart | The terminal will restart after 1 minute! |
| WHERE# | Location query | Current
position!Lat:N22.589031,Lon:E113.853567,Course:0,Speed:0,DateTime:2018-07-26
10:25:55 |
| URL# | Google link query | GPS! N4.85094 E7.06102 speed:000.0 T:07/13/19 11:37 http://maps.google.com/maps?q=N4.864553,E6.983681 |
GPS Tracker Applications And Where you install it.
Terminal connection:
male switch, Female switch
Red(positive) Black (Negative)
1. red wire connect positive(+),black wire connect negative(-)
2. power input connector to power positive and negative connectors(
make sure connect the right connector)
1. GPS and Location-Based Service
2. Real-time tracking
3. Check the history of the route on the platform
4. Remote engine
5. ACC detective
6. Power Saving Mode
7. Google map on mobile
8. Geofence and movement alert
9. Overspeed alert
10. Low Battery Alarm
11.Waterproof IP65
GPS Tracker Main Functions:
Indicators
3.5.2 Yellow indicator light -GSM
| LED Status | Meaning |
| Flash once in 2 seconds | GSM initialization |
| Light Always | GPRS is normal / already online |
| No light | GSM sleep |
Proper Use of The Product
Install→Power on→Settings→Register
Installation: GPS antenna should be facing toward the sky, above
the mounting location, must be no material (such as metal, window
film) absorption of electromagnetic waves sheltered place.
Boot: Insert the SIM card correctly, connect the wire according to
the diagram, then turn on the power.
Setting: Must be done, or can not do other operations, mobile phone
owners send text messages to set the owner number and a specific
number to the terminal SIM card.
Registration: The registration method is a different subject to
dealer platforms, please consult your dealer.
Instructions
Note: The symbol is separated by a comma, the following function
parameters instruction comma is in English input state.
1. Real-Time Positioning:
GPS Tracker Device will get the real-time position message and
upload all status to the server system.
And will display the position on the map. you can click any of the
points to know the name. locating time. and acc status. speed
GPS Time, direction, and so on.
2. Vibration alarm:
After setting the command of vibration by SMS. When it moves there
will be a vibration alarm message.
3. Power-off alarm:
If the power supply of GPS Tracker is cut off or GPS Tracker will
send the alarm message to the server or bonded Phone number.
2.1 Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as follows:
Under Front windshield；
In the front instrument panel；
Under back windshield；
Cheapest 4G Mini Size GPS Tracker For Vehicle Real-Time Tracking
GSM/GPRS
Other Models:
4G GPS tracker
FAQ:
1. Q: How long will it take to ship the order?
A: Within 5-10 working days if the goods in stock, after we got
your payment. Or we will reply to you with the updated ETD
according to your purchase quantity.
2. Q: How about the payment options?
A: West union, TT, Alipay, PayPal, or others available.
3. Q: How long is your warranty?
A: One-year free warranty and life-long maintenance.
4. Q: Can I make my own company logo and design on the device case
or color box?
A: Yes, you can add your logo, while the quality of each model is
the most important thing. Specific quality it depends on each
model.
5. Q: Does it works with a free GPS tracking system?
A: Yes, it compatible with
