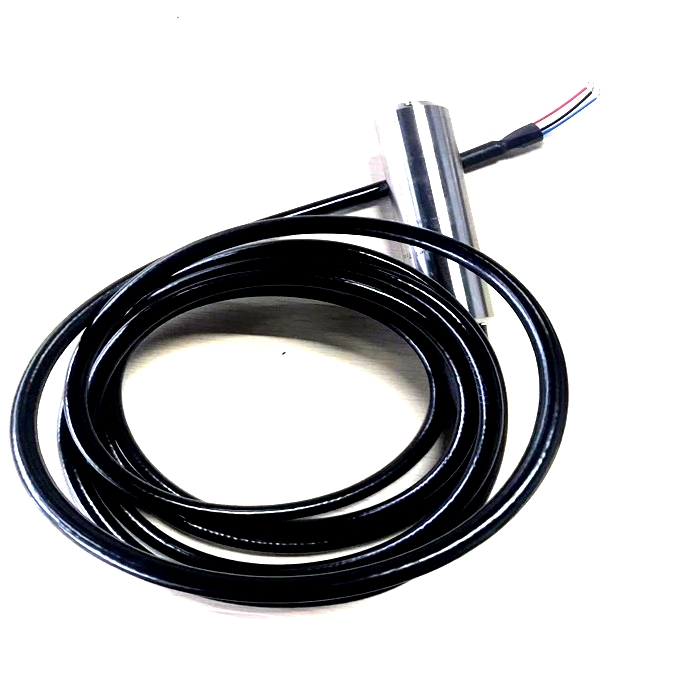

Low-Cost GPS High Precision Linear Oil Level Sensor/ Fuel Pump
Sensor 2020
Product description:
the liquid level sensor is a level measuring instrument, contains a
high-resolution ratio and measurement accuracy. It is an automatic
calibration that does not need manual intervention, no temperature
drift, and is not affected by the medium change. In other words,
regardless of the measured medium is water or gas or diesel, no
matter how temperature changes, it can output a signal of accurate
liquid level height at one sensor. Completely solve the problem of
measure medium difficulty, like ethanol and methanol, and the
problem of measurement error caused by oil’s label and great
temperature difference in different areas.
| parameters | |
| output signal | 0V～5V,4-20mA |
| Wire output | 3 wires (brown wire positive, blue wire negative, yellow wire 0-5V
signal, 4-20mA) |
| Operating Voltage | 9-36V |
| Detection of current | <125mA |
| measurement accuracy | 2-5% |
| Detection sensitivity | 10-20mm |
| Basic error | 0.2V |
| Operating temperature | －40℃～＋90℃ |
| Lag time | 0.1s |
| Service life | 5 million times |

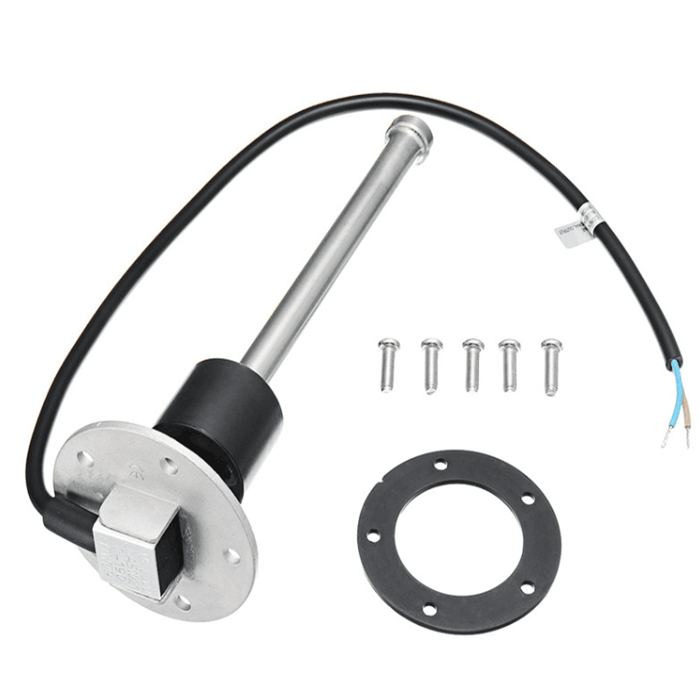

| the whole frame | Column type |
| The main material | Stainless steel (1Cr18Ni9Ti) round tube outer diameter 12.7mm |
| Float material | NBR foam ball, outer diameter size: ø35×32 mm (working in diesel,
gasoline, water, methanol) |
| Hole Size | Hole center circle ø40mm |
| Installation method | Top-mounted |
| Wiring | Blue-ground wire; yellow-green-signal output; brown-power supply |
| Reference wiring | brown line-power+9-36v |
| blue line-Power negative |
| yellow line-signal 0-5v output |
| Precautions | Resistance signal products: brown wire resistance signal output,
blue wire grounding (negative); |
| Voltage signal products: brown wire connected to +12/24V, blue wire
negative, yellow wire 0-5V output |
Instruction
definition of the output line
Interface output line uses 6 core cable, connecting definition:
0~5V output [CLS2A]:
Blackline connect ground wire Red line connects positive power
White line 0~5V voltage signal output, connect voltage signal wire
Yellow line empty fuel tank use only
Greenline full fuel tank use only
| RS232 | output [CLS2C] |
| Blackline | connect ground wire |
| Redline | connect positive power |
| White line | RXD input, connect car RS232 TXD |
| Blueline | TXD output, connect car RS232 RXD |
| Yellow line | empty fuel tank use only |
| Greenline | full fuel tank use only |
Greenline full fuel tank use only
The guarantee period of the sensor is one year. All accessories including rubber
blanket, O-Rings, are beyond the scope of “ three guarantees ”.
The entire sensor machine doesn't contain any elasticity or moving
parts. Impact resistance, maintenance-free, long service life, easy
installation, can be installed on various occasions. An accurate
measure for gasoline, diesel oil, hydraulic oil level, and other
various weak corrosive liquid level.
Low-Cost GPS High Precision Linear Oil Level Sensor/ Fuel Pump
Sensor 2020
other types
The equipment can be used cooperatively with a GPS vehicle
positioning terminal and another terminal to make a vehicle
positioning and fuel consumption management system. It can evaluate
the usage of the vehicle and the driver's driving level, monitor
gas up the situation of the vehicle, precise calculate a hundred
kilometers fuel consumption, completely eradicate the phenomenon of
oil stolen, oil spilling, detouring, make extra money, private use
of government vehicles, falsely making received.
GPS High Precision Linear Oil Level Sensor Use At Mixer, Truck,
Logistic Vehicle
GPS Tracker Applications:
Another model
Ultrasonic Wave Oil Level Sensor
Low-Cost GPS High Precision Linear Oil Level Sensor/ Fuel Pump
Sensor 2020
CA-V1 Support fuel sensor
1. Positioning and Tracking: Through the on-line Positioning Platform
or the cell phone to locates at times, and get the working status.
You can choose the Positioning Platform by yourself.
2. Triggering Emergency Alarm: When there is an emergency happened on
the vehicle, you can put on the button and the installed device
will send out an alarm to the authorized numbers.
3. Remote controlling oil and circuit: you can control the oil and
circuit via the device by SMS anywhere and anytime.
FAQ:
Do you have one GPS Tracker device that supports the fuel sensor?
Yes, all professional types of GPS trackers including V1/V2E have
the support of this type of fuel sensors.
