GT06 Protocol Mini Gps Tracking Device For E-Bike/
Vehicle/Motorcycle Support Relay
Main components: (V1.0)
GPS functions:
protocol: GT06 1)support ACC ignition checking ,
G-sensor : BS250E 2)support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm, GPS module: Ublox
6) platform /APP supported
GPS Tracker Parameters:
| Working Voltage: | DC9-100V or 12-40V, optional. |
| GSM Chip: | MT6261 |
| GPS Chip: | AT6558R |
| MPS | 9486 |
| Working temperature: | ‘-20 ℃ to +70 ℃ |
| Storage temperature: | ’-40 ℃ to +80 ℃ |
| Working Humidity: | 5% to 90% |
| Power consumption: | Average power consumption<1W, power-saving status<2mW |
| GPS Tracker size: | 76mm*27mm*15mm |
| Packing size: | 80mm*125mm*40mm |
| Interface: | Power input, ACC input detection, cut off fuel circuit. |
| Communication band: | GSM/GPRS 850MHz 900MHz 1800MHz 1900MHz |
| Weight: | 42g
|
Multi Mode Positioning: BD GPS LBS
Device status indicators
4.1 Connect DC 9-100V power supply and the red LED will light
continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
4.2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
4.3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
GT06 Protocol Mini Gps Tracking Device For E-Bike/
Vehicle/Motorcycle Support Relay
GPS Tracker Applications And Where you install it.
Red & black cable for power
Orange cable for ACC/ignition
Yellow cable for relay

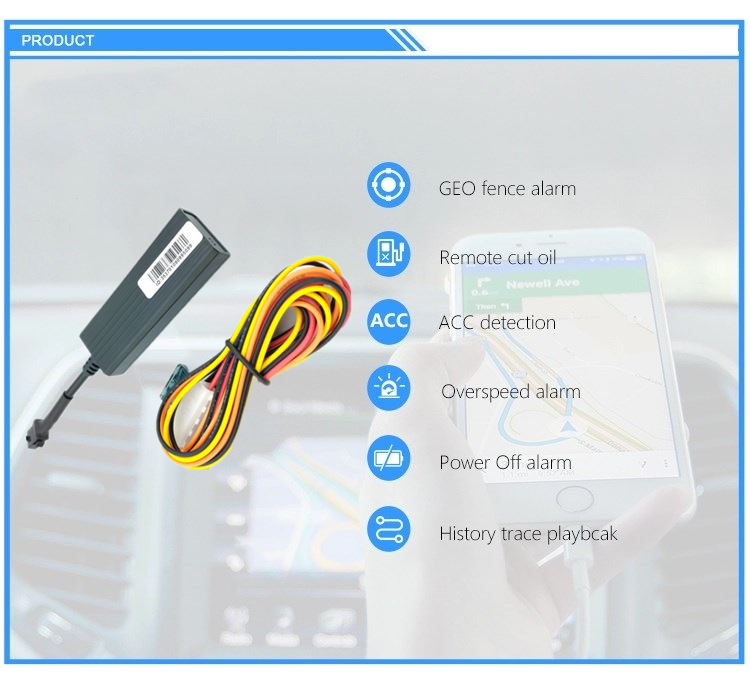

GPS Tracker Main Functions:
1. Real-Time Positioning:
TK003 GPS Tracker Device will get the real-time position message
and upload all status to the server system.
And will display the position on the map. you can click any of the
points to know the name. locating time. and acc status.speed
GPS Time, direction and so on.
2. Vibration alarm:
After setting the command of vibration by SMS. When it moves there
will be a vibration alarm message.
3. Power-off alarm:
If the power supply of GPS Tracker is cut off or GPS Tracker will
send the alarm message to the server or bonded Phone number.
4. Remote Car Lock
If illegal ignition alarm receives from GPS Tracker, you can remote
cut off the vehicle circuit, so that to avoid being driven away.
5. SOS Alarm
Users can press the SOS button on GPS Tracker under emergency
situations. GPS Tracker will send alarm message to manage system
and
Call police simultaneously.
Terminal connection:
male switch, Female switch
Red(positive) Black (Negative)
1. red wire connect positive(+),black wire connect negative(-)
2. power input connector to power positive and negative connectors(
make sure connect the right connector)
set server IP or Domain name
1. Set server Domain name: SERVER,1,domain name, port,0#
2. Set Server IP:
SERVER,0,IP, Port,0#
The last bit 0 stands for TCP
GT06 Protocol Mini Gps Tracking Device For E-Bike/
Vehicle/Motorcycle Support Relay
Other products
tk004 GPS tracker
100% factory price YTWL-100F Ethiopia standard GPS speed limiter
Kid GPS watch wtih Gps fuction
Pets GPS tracker
FAQ:
How to use this GPS tracker?
1. Input SIM Card inside the GPS Tracker product.
2. Connecting GPS Tracker with power supply.
3. Put GPS Tracker device near a window or some open area waiting
for signal ready.
4. When all indicators lighted and flashed normally means GPS
Tracker works. now send SMS command to
communication network, you will receive a GPS Tracker status report
by SMS.
