    Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil

    Ask Lasest Price
    Brand Name : Caxtrack
    Model Number : CA-F5
    Certification : CE/ROHS/FCC/SGS
    Price : Negotiable
    Payment Terms : Western Union, T/T, L/C, PayPal
    Supply Ability : 100,000pcs per month
    Delivery Time : 1-10 business days after payment cleared
    • Product Details
    • Company Profile

    Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil

    Fuel Level Sensor For Tank Oil Level Measurement IP66 Automatic Calibration


    Product description:


    CLS2 Capacitor motor oil level sensor combined capacitor sensor and liquid level sensor.

    The product not only contain the features of high precision measurement and maintenance-free, at the same time it doesn't influenced by temperature and medium.It can be automatically measuring error caused by different temperature or medium for precise compensation,achieving the purpose of accurate measurement.

    The entire sensor machine doesn't contain any elasticity or moving parts.Impact resistance, maintenance-free, long service life, easy installation,can be installed in various occasions.Accurate measure for gasoline, diesel oil, hydraulic oil level and other various weak corrosive liquid level .


    This liquid level sensor is level measuring instrument,contain high resolution ratio and measurement accuracy.It is automatic calibration which does not need manual intervention,no temperature drift, and is not affected by medium change.In other words,regardless of the measured medium is water or gas or diesel, no matter how temperature changes, it can output signal accurate liquid level height at one sensor. Completely solve the problem of measure medium difficulty ,like ethanol and methanol,and the problem of measurement error caused by oil’s label and great temperature difference in different areas.

    Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil


    Technical features:


    Examination area:100~1000mm
    Resolution ratio:0.10%
    Measuring accuracy:0.10%
    The maximal error of measure:1mm
    Heat-resistant:-40~150
    Diameter:Φ18mm
    Output signal:4~20mA, 0~5V, RS485, RS232, CAN bus
    Voltage supply:DC7~42V
    Rated supply:0.1W
    Fixed type:Screw installation M20X1.5 OR Flange mounting
    Pressure range:-0.1MPa ~ 0.1 Mpa
    Ambient temperature:-40~85℃

    Fuel Level Sensor For Tank Oil Level Measurement IP66 Automatic Calibration

    The entire sensor machine doesn't contain any elasticity or moving parts.Impact resistance, maintenance-free, long service life, easy installation,can be installed in various occasions.Accurate measure for gasoline, diesel oil, hydraulic oil level and other various weak corrosive liquid level .


    cause analysis

    1 Open circuit of the power or voltage too low Sensor fault

    Wrong connection of the lines and wires 2 service voltage abnormal

    external interference Sensor jammed Sensor fault

    1. service voltage abnormal external interference Sensor jammed autoadaptation uncomplete Sensor fault
    2. oil level flow

    service voltage abnormal external interference Sensor fault

    Cuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank OilCuttable IP66 RS232 0.1W GPS Fuel Sensor For Tank Oil

    Instruction


    definition of the output line

    Interface output line use 6 core cable, connecting definition:

    0~5V output [CLS2A]:

    Black line connect ground wire Red line connect positive power

    White line 0~5V voltage signal output,connect voltage signal wire Yellow line empty fuel tank use only

    Green line full fuel tank use only

    RS232output [CLS2C]
    Black lineconnect ground wire
    Red lineconnect positive power
    White lineRXD input, connect car RS232 TXD
    Blue lineTXD output, connect car RS232 RXD
    Yellow lineempty fuel tank use only
    Green linefull fuel tank use only

    1.1Calibration

    This sensor adopt high-speed MCU of CNC technology, adopting self-calibration Calculation , and leaves out the complicated Manual calibration while using in normal.

    circumstance, the sensor can directly be used in the measurement of the diesel, if need to calibration, you can use the three following ways to complete. (each can work)



    Fuel Level Sensor For Tank Oil Level Measurement IP66 Automatic Calibration

    GPS Tracker Applications:

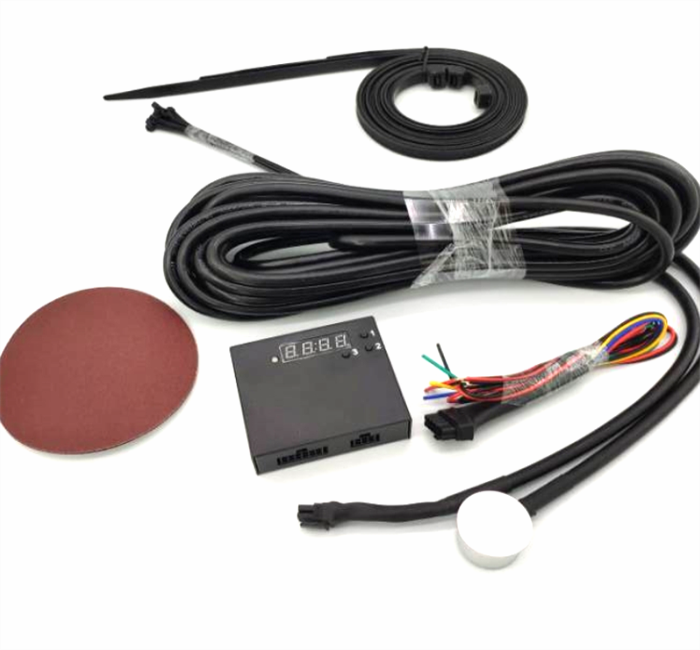

    Other model of fuel sensor(ultrosonic fuel sensor)


    Ultrasonic oil level sensor is the oil quantity monitoring equipment designed for management personnel of enterprise motorcade. It can prevent gasoline theft by drivers, optimize transportation cost, the driver’s driving action and assist statistical decision, etc. The sensor uses ultrasonic probe to detect the oil level height and carries out smart processing for height signal of oil quantity through built-in program of the main body. Then it sends the oil quantity information to the system platform through GPS to generate the oil quantity report after analysis. The sensor supports serial port and analog output and can connect with GPS of most brands/Beidou all-in-one machine. Therefore, the sensor can be connected with the backstage monitoring system easily.

    The products adopt non-contact measurement ultrasonic wave sensor technology developed independently by our company and first created domestically and are widely used in fuel consumption monitoring projects for vehicles and sold overseas.



    FAQ:

    Do you have one GPS Tracker device that supports the fuel sensor?

    Yes, all professional types of GPS trackers including V2E have the support of this type of fuel sensors.

    How can I buy it?

    We accept T/T, Western Union, and Paypal after payment cleared. then we will send goods to you.

    What is your WhatsApp?

    My WhatsApp is +8618673367060
