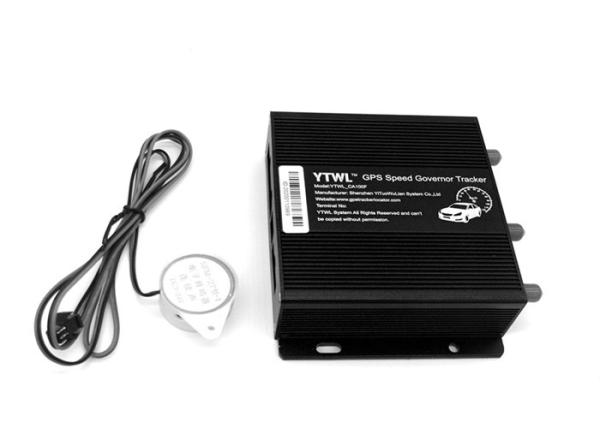

Vehicle Speed Limiter Ehiopia Dealer Price Speed Limiter Storage and Printer

    Buy cheap Vehicle Speed Limiter Ehiopia Dealer Price Speed Limiter Storage and Printer from wholesalers

    Buy cheap Vehicle Speed Limiter Ehiopia Dealer Price Speed Limiter Storage and Printer from wholesalers
    • Buy cheap Vehicle Speed Limiter Ehiopia Dealer Price Speed Limiter Storage and Printer from wholesalers
    • Buy cheap Vehicle Speed Limiter Ehiopia Dealer Price Speed Limiter Storage and Printer from wholesalers
    • Buy cheap Vehicle Speed Limiter Ehiopia Dealer Price Speed Limiter Storage and Printer from wholesalers

    Vehicle Speed Limiter Ehiopia Dealer Price Speed Limiter Storage and Printer

    Ask Lasest Price
    Brand Name : cartrack
    Model Number : CA100F
    Certification : CE/ROHS/FCC/SGS
    Price : negotiation
    Payment Terms : T/T or western Union or paypal
    Supply Ability : 100,000pcs per month
    Delivery Time : 1-10 working days after received your payment
    • Product Details
    • Company Profile

    Vehicle Speed Limiter Ehiopia Dealer Price Speed Limiter Storage and Printer


    Vehicle Speed Limiter Ehiopia Dealer Price Speed Limiter Storage and Printer


    1 Speed Limiter GPS Product Specifications


    ColorBlackApplicationfree android and IOS app
    Input Fuse5ACPUTI:MSP430F5419(100MHz)
    BatteryLithium battery :400mA( working time is about 3.5 hours)Warranty2 years
    Item NameTop selling shineFunctioncamera gps fleet tracker
    Working TemperatureAnna ShiMOQ10 Pieces
    GSM ModuleGSM Module:SIM5320
    Band:850/900/1800/1900/2100MHz,
    Tally with: GSM phase 2/2+
    -Class 4 (2W @ 850/900MHz)
    -Class 1 (1W @ 1800/1900MHz)
    Max RF Output: 33.0dBm±2dBm
    Dynamic Input Range: -15 ~ -102dBm
    Receiving delicacy: Class RBER≤2%(-102dBm)
    Frequency Stability: > 2.5ppm
    Max Frequency Deviation: ±0.1ppm
    RMS Deviation: ≤5deg
    GPS ModuleGPS chip set: SiRF Star III
    Frequency: L1, 1575.42 MHz
    Number of Channel: 20
    Reacquisition: 0.1 sec, average
    Hot boot: 2 sec., average
    Warm boot: 38 sec., average
    Cold boot: 44 sec., average
    Altitude limit: 18000 m
    Velocity limit: 515 m/s
    GPS SMS Command list
    1. Check Device Status :STATUS#
    2. Check Device parameters :PARAM#
    3. Check GPRS Parameters :GPRSSET#
    4. Check Device Lat. And Log. :WHERE#
    5. Check Server parameters :SERVER#
    6. Reset Device :RESET#
    7. Add SOS Number :SOS,A, Number 1,Number 2,Number 3#
    Input I/O8 I/O input/output Port
    1 main power check
    1 port use to check the engine ( ACC check)
    1 port use to SOS
    1 analog Input port( Fuel sensor)
    1 Output port ( Car engine control )
    3 Extend ports ( Input/Output control by software)

    2. Speed Limiter Requirement

    Vehicle Speed Limiter Ehiopia Dealer Price Speed Limiter Storage and Printer


    1. The road speed limiting device shall be designed and constructed in such a way that it can be fitted in a place not easily accessible;
    2. The road speed limiting device shall have in built features that allow functionality checks and shall have special inspection devices for this purpose to facilitate the checking when the vehicle is not in motion;
    3. The actuation force of the controls should not have a detrimental effect on the driver's efficiency or impose fatigue on the driver;
    4. Road speed limiting device shall have a users and technical's manual, both written in English/Amharic.
    5. All speed limiter device system shall able to be checked for accuracy and functionality
    6. The speed limiter devices shall be of industrial grade and designed for automotive application
    7. The input speed signal shall be obtained from global navigating system (GNS) or speedometer vehicle speed signal or a converted speed signal from vehicle gearbox or from other separately installed sensor as deemed appropriate

    3.Speed Limiter status indicators


    Vehicle Speed Limiter Ehiopia Dealer Price Speed Limiter Storage and Printer

    1. Connect DC 9-100V power supply and the red LED will light continuously.The red LED is the power signal,it is always on when the external DC is connected.
    2. The blue LED is the GSM signal indicator.
      It is always on when there is no GSM;
      it flashes when GSM is normal;
      it flashes quickly when transmitting data.
    3. The yellow LED is the GPS signal indicator:
      it is always on when there is no positioning;
      it flashes after positioning.
    4.Speed Limiter GPS GPRS GSM Main functions
    1. Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times, and get the working status. You can choose the Positioning Platform by yourself.
    2. Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to all authorized numbers when it breaches the district
    3. Remote Monitoring: In anywhere and anytime, call the phone number in the unit, when it connects, you can monitor the sound around 5 meter.
    4. Movement Alert: Send SMS to the unit to start the movement alert function. When the vehicle is moving, the unit will send the movement alert to all authorized numbers.
    5. Mileage statistics; ACC checking; cutting off power and alarm.

    5 Application Field:

    1. For School Bus ;
    2. For tour bus and passenger car management ;
    3. For logistics vehicle monitoring and management ;
    4. For tank truck monitoring and management.
    5. For limit the speed of vehicles
