YTWL_CA100F Road Vehicle GPS Speed Limiter Meet Ethiopia Standard ES6413:2019

1. Product Brief:

Vehicle speed limiter CA100F is a intelligent terminal equipment which can realize precise speed limiting for vehicles. It is not only a speed limiter but also a GPS Tracker.

The product adopts ARM intelligent chip, speed control precision is very

high , and the performance is reliable. It will not affect the big throttle start nor the power torque, stable and reliable; Only limit the maximum speed, the vehicle will not stall during speed limiting, and ensure the throttle pedal free movement in the right speed range.

CA100F reserves a wealth of interface, can work together with a variety of external equipment, with high compatibility and performance.

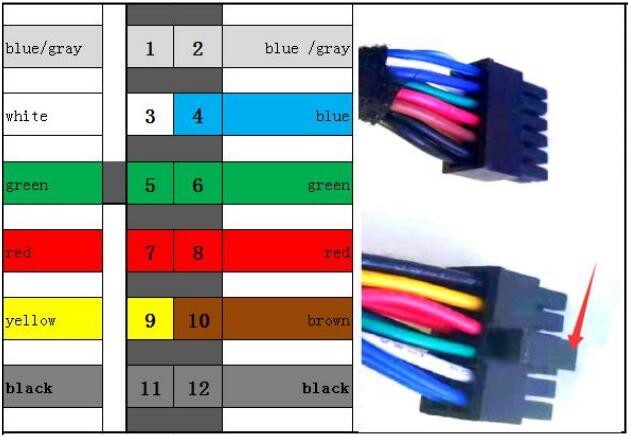

caution:

6: brown line, is the line of the buzzer, The positive pole of the buzzer is connected to the positive pole of the 12 power supply, and the negative pole of the buzzer is connected to the brown line of 6

9: Gray line, pick up the pulse line of the original car, connect the pulse line speed limiter, the speed limit function will not have too much delay, use GPS signal speed limit, there will be a delay of about 2 seconds

10: ACC line 11: Power ground

12: Positive power supply

Except for the 4 wires of 6, 9, 11, and 12, which are necessary wiring, the other wires are reserved functions and are used for subsequent development of other functions.

YTWL_CA100F Road Vehicle GPS Speed Limiter Meet Ethiopia Standard ES6413:2019

• The install steps:

3.1 Find the vehicle accelerator pedal line harness at first ,then find the two signal lines from the six lines with multi-meter test.

There are six lines in the accelerator pedal interface , two power lines ,two ground lines , and two signal lines. Start the vehicle, step on the accelerator pedal, let the vehicle in idle state, then the signal line voltage value will change,thus you can find the signal lines.

Please see the picture below

3.2 Cut the two signal lines , and then connect <10brown line+9yellow line> and <4blue line+3white line> to the signal lines respectively.

Please note that as shown in the figure following , 10brown and 4 blue line are connected to the part close to the ECU, 9yellow and 3 white are connected close to the accelerator pedal.

3.3 Find the speed pulse signal line of the car, connect to the 9 gray line of the GPS speed limiter, connect the speed pulse line, and the speed limit delay time is within 1 second.

3.3.1 How to find the speed pulse line:

With an oscilloscope, a square wave appears when the car is started. The square wave is wider when it is static. When it is accelerated, the waveform is narrower and changes according to the speed. The output waveform is about 0.5V-12V.

3.3.2 The main position of the speed pulse line is in the following sections:

A. behind the dashboard

B. Audio host part

C. Gearbox output

D. Driving computer parts

E. ECU electric unit

3.4 After GPS SPEED LIMITER is installed completely, start the vehicle first. When the vehicle is idling, send a text message “STARTIDLE*123456”, the device will automatically learn the idle voltage, and then return the learned idle voltage value to the mobile phone. Then use the text message "SPEED*123456*xxx" to set the speed limit value, first test it with GPS speed, and the speed limit function is normal. If you can find the original car speed pulse line, you can make the car run at a constant speed of 30km/h, then press the button twice to calibrate the current pulse coefficient.

4 LED indicator

4.1 The red light is the power indicator. If it is steady, it indicates that the main power is on, and the off indicates that the main power is off.

4.2 Blue is the GPS indicator, always on indicates GPS positioning, and off means that GPS is not positioned.

4.3 Green is the system indicator. If it is steady, it indicates that the GSM network is not registered. Flashing indicates that the GSM network has been registered. Flashing twice indicates that GPRS is connected.

5 Key operation:

5.1 Press and hold for more than 3 seconds, the buzzer will sound and export data to the U disk.

5.2 Press the button 3 times continuously, the buzzer will sound and output data to the printer.

5.3 Press the button twice continuously, the buzzer sounds 2 times, and the current pulse coefficient is automatically calibrated.

YTWL_CA100F Road Vehicle GPS Speed Limiter Meet Ethiopia Standard ES6413:2019

6 Bluetooth printer:

Printer power light--Blue light if it is steady light indicates Bluetooth connection is normal, if blue light is off, Bluetooth is not connected

7 SMS command:

8 Application Field:

• Vehicle Commanding and Dispatching System;
• Heavy Construction Vehicles Tracking Device;
• Dangerous goods transportation;

4) Passenger Car Management;

• Logistics vehicle management.

6) Oil Tanker Monitoring and Management

9. Technical Parameter

10 Product Accessory:

①　Power wire

②　Executor wire

③　Buzzer (optional part )

④　GPS Antenna

⑤　GSM Antenna

⑥　SIM Card Slot

⑦　Bluetooth printer

⑧　Bluetooth antenna

11. After-sale service:

Warranty statement:

The specification are subject to modification without notice.

If the appearance and color of the product is changed, please take the actual product as the standard.

This warranty card is only applicable to the following listed IMEI/ID machine.

Please keep this warranty card, and please present this card and the original purchase receipts when repair service.

This is the basic certificate of warranty, please fill in this card carefully and keep it well.
