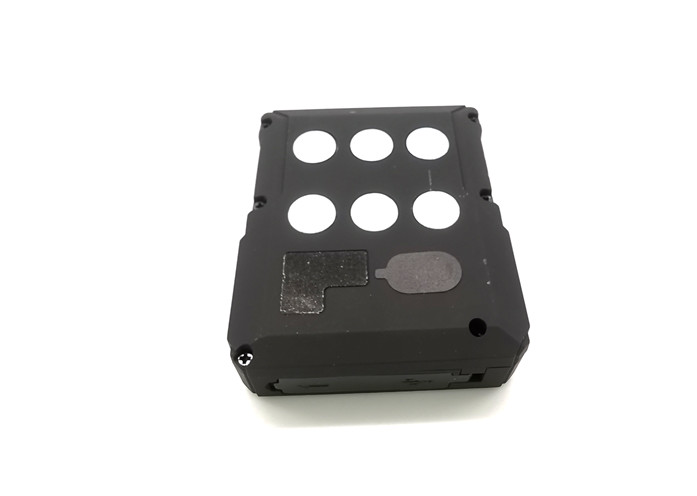

Waterproof Network Portable GPS Tracker Device For Car Tracking With Sleep Mode

Performance Parameters:

Product Features:
-1.Supports GSM/WCDMA, include 9 band,universal in the world.
-2.Built-in 4200mAh zero self-discharge disposable battery, can stand up to three years( reports one time per day).
-3.GPS/LBS precise/aid positioning, Support A-GPS.
-4.Strong magnetic force, can be adsorped on iron.
-5.Military grade three anti-performance,waterproof to IP67.
-6.Built-in light sensor on the bottom, device will power on once it's removed, and trigger a remove alarm, send SMS to administrator.
-7.Set emergency mode, device will start real-time tracking and upload data via
platform/APP/SMS.
-8.Device Module passed PTCRB, GCF, FCC,IC,RCM, CCC, Giteki,Anatel,AT&T etc.
-9.Track device through WEB/APP/SMS
-10.EELINK protocol 2.0, Firmware OTA


Basic Specifications:
Voltage: 3.6 V
Work Current : GPRS(140mA); HSPA(460mA)
Sleep Current : <30uA
GPSAccuracy: 5-15m
LBSAccuracy : About 100m (depend base station density)
GPS Band : 1575MHz
GSM Band: 850/900/1800/1900MHz
WCDMA Band :W800/W850/W900/W1900/W2100MHz
Waterproof Level: IP65
Working Temperature : -20ºC~70ºC
Hot/warm/cold Start: <3s,<15s,<60s
Battery Capacity : 4200mAh
Dimensions (mm) : 95(L)X 58(W) X 24.5(H)
Work Humidity: 20%~80%RH
Net Weight : 153 g


Application areas:
Fleet Management
Insurance Telematics
Asset location
M2M Application(Cold Chain, Food Chain, Restaurant Supply, Enterprises Equipment Management, etc)


Specification:

Feature Description:

1. Support real time tracking and history tracking platform from Website platform and Mobile phone APP.

2, Support real time positional inquiry by a SMS command.

3. Support alert functions:

a. drop alert (When the tracker pullout by the theft, the tracker will send SMS message and call the user immediately )

b. overspeed alarm

c. shock alarm

d. Low battery alarm

4. GPS+LBS solutions,shorter locating time,higher precision.

5. support E-fence function.

6. Large Rechargeable 10000mAh battery Inside.

7, With 5 pieces strong magnets in the back face, free installation.

8. LED Indicator meaning:

a. Green LED for GPRS working status

b. Blue LED for GPS working status

c. Red LED for power charging status

9. Remote voice monitoring.

10, Support 3G network.

Initialization

Send “begin+password” in SMS to the unit, it will reply “begin ok” and initialize all the settings. (Default password: 123456)

For example, send SMS“ begin123456” to the tracker via a cell phone, If succeeded,

it will reply“begin ok”.

Battery and Charger

Do charge the battery to capacity in 8 -12 hours for first time. Please use the battery and charger provided by the manufacturer. This unit adopts built-in Li-ion battery, and full battery can standby 70days. After first use, the battery usually should be charged fully in 5--8 hours.

Applications:

1. Vehicle Rental / Fleet management etc

2. Container/cargo/asset tracking

Gurantee:

1. All of our product is free to use the Tracking service server in 24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.


Product Configuration:

1. Standard configuration

1. Main device,
2. Charger ,
3. USB cables,
4. Usage instructions.
