Dual Mode Positioning Tracker Device With the Support of Fuel
Sensor at GPS Satellite and LBS Station
Multi-functional vehicle GPS tracking device
Basic Functions:
1. Quad-band, Worldwide use
2. Supports GSM frequencies 850/900/1800/1900MHz
3. High-sensitivity, latest technology, and the most advanced GPS
chip
4. Can accurately position even if with a weak signal
5. Can work effectively in limited space such as the remote and
narrow places;
6. Compact size, easy for hiding
7. Low energy consumption
8. Fast signal capturing
9. Supports two modes: text message polling and GPRS trace tracking
10. Alarm function
11. Cut oil or circuit (extra relay will be needed )
12. Over speed alarm
13. ACC ignition detection
14. Vibration alarm
15. Sleep mode 16. SOS (extra SOS button will be needed)
17. Remote monitoring by voice (extra mic will be needed)
18. Broadband Voltage: 9V-50V
19. Work with Fuel Level Sensor
20. 128M data storage while no GSM signal
GPS Tracker Applications:
Technical Parameters:
Network: GSM 850/900/1800/1900 Quad-band for the global world
GPRS: Class 12, TCP/IP
Voltage input range: DC9V to 50V
Sleep Current: 1mA@12V
GPS Positioning Time:
Cold start -38S (Open Sky)
Hot Start -2S (Open Sky)
GPS Positioning Precision: 10meters (2DRMS)
Temperature: -20 degrees to +70 degrees
Humidity: 20% to 80% RH
Dimension: 68mm*38mm*11mm
Weight: 37g
LED Descriptions:
Red LED: stands for battery status
Blue LED: stands for GSM Signal status
Green LED: stands for GPS Signal status
Notice of installation:
To prevent theft of the device, the device should be installed as
covertly as possible. Notice as following:
1 Avoid placing the Device close to higher power electrical
devices, such as reversing radar, anti-theft device or other
vehicle communication equipment.
2 The Device should be fixed into position with cable ties or wide
double-sided tape.
3 The device has a built-in GSM antenna and GPS antenna. During
installation, please make sure the receiving side face is up, with
no metal object above the device to interfere with GPS reception.
4 For safety, do NOT remove the fuse of device cable.
GPS Tracker Certificate:

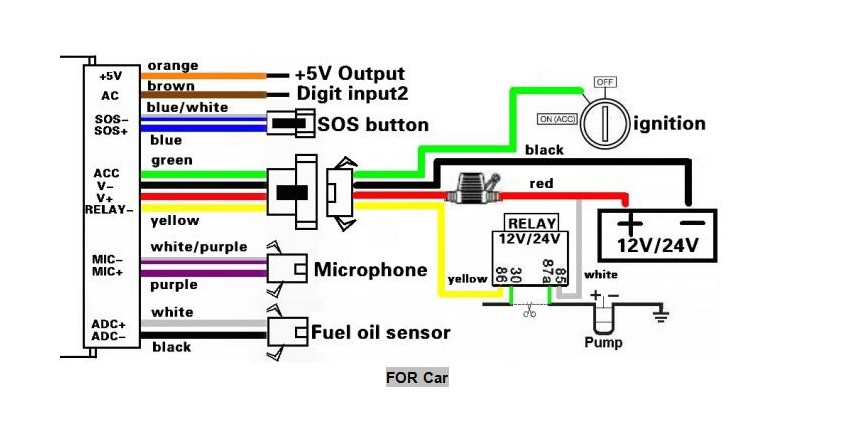

GPS Tracker Installation:
GPS Tracker Shipping:
FAQ:
Can I have your skype ID?
Yes, My skype ID is THINGSYS
What is your WhatsApp?
My WhatsApp is +8618666212621
Do you have one GPS Tracker device that supports the fuel sensor?
Yes, this V2E device can support the fuel sensor.
Can I install it in my car?
Yes, of course, our device supports DC9V to 50V input voltage.
How can I buy it?
We accept T/T, Western Union, and Paypal after we receive your
payment. then we will send goods to you.
Is there any built-in battery in your device?
Yes, So it supports the power-off alarm function.
What kinds of battery in your device?
150mAh Li-ion rechargeable battery.
