Motorcycle GPS Tracker With GT06 Protocol Same As G17H ET25 ST901
GPS Tracker
TK003 Product Features And Features
1 Technical parameter :
1 ).GSM:850/900/1800/1900 Quad band
2 ).GPRS: Class12, TCP/IP
3 ).Working Voltage:9-100V DC
4 ).Working current:≈22mA (12vDC)
5 ).Working current:≈12mA (24vDC)
6 ).GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s Hot start≈2s(Open sky)
7 ).GPS Precision:10m(2D RM)
8 ).Working temperature:-20℃～+70℃
9 ).Working humidity:20%～80%RH
10 ).Measurement:76(L)×26(W)×15(H)mm
2 Main components: : (V1.0)
GPS functions:
protocol: GT06 1 )support ACC ignition checking ,
G-sensor : BS250E 2 )support Relay for cutting off power/fuel
input power: 9-100V 3)built-in GPS antenna: 18*18*4 mm
power IC: SL3036H 4)built-in battery, Real time tracking.
GSM module: MT6261 5)Geo-fence, over speed alarm,
GPS module: Ublox 6) platform /APP supported
3. main functions:
1,GPS/GPRS/LBS/AGPS accurate tracking
2,Real time tracking
3,Geo-fence setting
4,Historical route playback in 365 days
5,ACC detection
6,Remote fuel/power cut off
7,Power off alarm
8,Vibrant/shift alarm
9,Bind area supplement
10,Built in G-sensor anti-static drift
11,Bend compensation
12,Power saving mode
13. Original Vehicle low battery Alarm
Motorcycle GPS Tracker With GT06 Protocol Same As G17H ET25 ST901
GPS Tracker

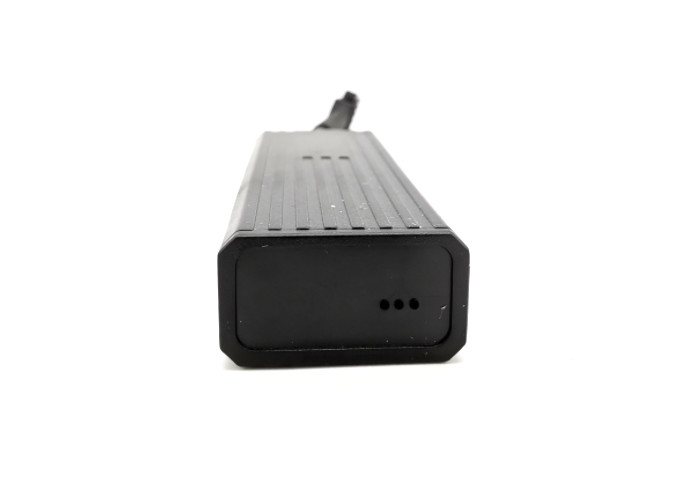

4 Device status indicators
4.1 Connect DC 9-100V power supply and the red LED will light
continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
4.2 The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
4.3 The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
5.Installation for SIM of device
5.1 Preparation for the installation
5.1.1 Product Check. Open the packing box and check the device‘s
model and
accessories. If the model is wrong or the accessories not complete,
please
contact the dealer.
5.1.2 Choose SIM card. Please insert a SIM card to the device.
Please take
dealer’s advice as reference.
5.1.3 SIM card installation. Discharge the cover of the device and
uncover the SIM
card holder. Then insert the SIM card and cover SIM card holder.
5.1.4 Put back the front cover and screw it up.
5.1.5 Connect the device to the 9-100Vpower supply.(the red LED
constant glow)
5.1.6 Install the device in the hidden place of the car；
The SIM card must be with GPRS function and enough deposit. If your
SIM card
need input PIN when power on, please cancel it.
5.2 Installation for the Car/Motorcycle/E-bike
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield；
In the front instrument panel；
Under back windshield；
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure
the
receiving side of the device is face up and without metal cover.
Note:The metal cover will lessen the receiving of GPS signals.
6. Device wiring requirements
6.1 The device power supply is DC 9-100V. The red line is positive
pole while
the black line is negative pole.
6.2 The negative pole of power supply connects with ground or the
metals.
Please do not connect with other ground lines.
6.3 When finishing the power supply wire connection, please make
the plug of
power supply to the device
Any issue please contact the local distributors.
7. TK003/CA-V4 SMS command list :
| SMS Command list |
| NO. | Item | SMS Commands format | Remarks |
| 1 | Check Device Status | STATUS# | |
| 2 | Check Device parameters | PARAM# | |
| 3 | Check GPRS Parameters | GPRSSET# | |
| 4 | Check Device Lat. And Log. | WHERE# | |
| 5 | Set Server IP or Domain name | SERVER,1,domain name,port,0# SERVER,0,IP,Port,0# The last bit 0 stands for TCP | |
| 6 | Check Server parameters | SERVER# | |
| 7 | Reset Device | RESET# | The terminal will restart after 1 minutes |
| 8 | Add SOS Number | SOS,A, Number 1,Number 2,Number 3# | |
| 9 | Del SOS Number | SOS,D,No. 1,No. 2,No. 3# | |
| 10 | Check SOS Number | SOS# | |
| 11 | Add Center number | CENTER,A,Number# | Only SMS NUMBER CAN SET CENTER NUMBER |
| 12 | Del Center number | CENTER,D# | |
| 13 | GPS DATA upload time interval | TIMER,T1,T2# T1=0,5～18000seconds; ACC ON time interval
T2=0,5～18000seconds ACC OFF time interval Example: TIMER,30,300# | |
| 14 | Check time interval | TIMER# | |
| 15 | Control Relay | RELAY,A#
A=0/1 0 stands for on 1 stands for off Example: RELAY,0# | |
| 16 | Check Relay status | RELAY# | |
| 17 | Open Vibration alert | SENALM,A,M# A=ON M=0～2 alert methods 0 stands for only GPRS 1 stands for SMS+GPRS 2 GPRS+SMS+CALL Example:SENALM,ON,2# | |
| 18 | Close Vibration alert | SENALM,OFF# | |
| 19 | Check Vibration alert status | SENALM# | |
| 20 | Open power off alert | POWERALM,A,M,T1,T2,#
A=ON
M=0～2 0 stands for only GPRS 1 stands for SMS+GPRS 2 GPRS+SMS+CALL T1=2～60seconds detect power off time T2=1-3600seconds the minimum
charge time Example:POWERALM,ON,2,30,300# | |
| 21 | Check power off alert status | POWERALM# | |
| 22 | Check heartbeat data status | HBT# | |
| 23 | Open Over speed alert | SPEED,A,B,C,M#
A=ON B=5～600seconds C=1～255km/h M=0～1,upload method, 0 only GPRS 1 SMS+GPRS； | Example: SPEED,ON,10,120,1# |
| 24 | Close Over speed alert | SPEED,OFF# | |
| 25 | Check Over speed status | SPEED# | |
Frequently used commands:
| Command | Explain | Reply content |
| IMEI# | IMEI query | IMEI: 116790246811200 |
| IMEI,116790246811200# | Set IMEI | OK |
| FACTORY# | Restore factory settings | OK, The terminal will restart after 30 seconds! |
| RESET# | restart | The terminal will restart after 1 minute! |
| WHERE# | Location query | Current position!Lat:N22.589031,Lon:E113.853567, Course:0,Speed:0,DateTime:2018-07-26 10:25:55 |
| URL# | Google link query | GPS! N4.85094 E7.06102 speed:000.0 T:07/13/19 11:37 http://maps.google.com/maps?q=N4.864553,E6.983681 |
| SERVER# | Server query | server,1,gw.carhere.net,8005,0# |
| server,1,gps-go.com,6006,0# | Set domain name | ok |
| Server,0,121.201.110.106,6006,0# | Set IP | ok |
| GMT# | Time zone query | Currently Timezone(GMT):E,8,0 |
| APN# | APN query | Currently in use APN:peoples.net,0000,0000; |
| APN,xxxx# | Set APN | |
| APN,xxxxt,userAAA,passBBB# | Set apn and apn user,password | Example: apn,cmnet,aaa,000# |
GMT,<A>,<b>[,C]#
example, GMT,E,8,0#
| Change time zone command | A:E/W, E east time zone, W west time zone, default: E B: 0～12; time zone, default value: 8 C: 0/15/30/45, half time zone, default value: 0
|
Motorcycle GPS Tracker With GT06 Protocol Same As G17H ET25 ST901
GPS Tracker
Our Company:
Shenzhen Cartracker technology company was founded in 2009, Our factory located in
Cuishan industrial park of Shenzhen China,we have about 2000 square
meters of building
area and more 200 production staff, a team of 25 software and
hardware engineers and a 12
people super sales team, during the last 8 years rapid development,
we are enter the top 10
influential GPS Tracker suppliers in China, in China, we have many
cooperation with super
government projects meanwhile our products sells to a large number
of customers from more
than 150 countries.
FAQ:
1. Where is your factory?
Answer: Our factory is in Shenzhen City China.
2. Do you test all your products when your product them?
Answer: Yes, of course, we test all before ship them.
3. Do it contain built-in battery for your GPS Tracker product?
Answer: Yes,this model contains one 180mAh Li-ion battery.
4. What kinds of GPS Chip you use?
Answer: we used Ulbox Chip.
