Car Immobilizer Obd GPS Trackers for Car vehicle tracking system
OBD diagnosis
| Indicator | Color | Status |
| Power/OBD LED | Red | Blinking (on 0.5s, off 0.5s) - Trying to access OBD system or power
off Solid on - Successful OBD communication Solid off - Tracker mode or in sleep |
| Cellular LED | Orange-red | Fast blinking (on 0.5s, off 0.5s) - No SIM card or network searching Slow blinking (on 0.5s, off 2.5s) - Registered network Solid on - Logged into the server Solid off - Cellular off |
| GPS LED | Green | Blinking (on 1s, off 1s) - GPS signal is good Solid on - Searching for GPS signal Solid off - GPS off |
| Buzzer | Beep | One beep - Power on Two beeps - Successful OBD communication Three beeps - Successful log in Four beeps - Trip end and stop OBD communication Five beeps - Power off Six beeps - Fail to access OBD system Five beeps (short beep) - Alarm indication |
| Operating temperature | -20° to 55° C |
| Operating Humidity | 5% to 95% Non-condensing |
| Network | GSM/GPRS |
| GSM Chip | Quad Band GSM 850/900/1800/1900Mhz |
| GPS Chip | UBLOX7020 |
| GPS sensitivity | -159Db |
| Location Accuracy | 10 meters, 2D RMS |
| Time Accuracy | 1 microsecond time synchronization of satellite time |
OBD2 Function:
- OBD standard interface.
- Build in 180mAh / 3.7V battery.
- Real time vehicle tracking.
- Work with any 16 - pin OBD interface cars.
- Can locate and get the position of your vehicle remotely via
GPRS.
- Support function of map location inquiry.
- No installation, no wiring harness, simply plugs into OBD port.
- Working model:support GPRS & SMS model
- Shock Alarm
- Low battery Alarm
- Over speed Alarm
Technical Parameters:
1. GSM: 850/900/1800/1900 Quad band.
2. GPRS: Class12. TCP/IP
3. Working Voltage: DC12V
4. Working Current: about 22mA( DC12V)
5. GPS Locating Time: Cold start about 38s,Warm start about 32s,
Hot start about 2s
6. GPS Precision: 10m
7. Working temperature: -20 degree to +70 degree
8. Working humidity: 20%-80%RH
9. Measurement: 67mm*45mm*25mm
Picture:
Command:
No | Features | Message sent | Sample |
1 | Center Add | 710#number# 711#number# | 710#13500135000# 711#13800138000# |
2 | Center Del | D01# D02# | D01# D02# |
Command Description | 1. Only one nubmer can be center number 2. change center number must resend the command 3. add new center number by center,A, and delete by center,D |
Command Feedback | Successful Setting: Add admin account 1 OK! |
Applications :
4S shop , car company , truck company , motorcycle company , GPS
producer , large-scale shopping malls , exclusive agency , chain
shops , large-scale sales , car repair shop,taxi company .
Gurantee:
1. All of our product is free to use the Tracking service server in
24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
- GPS Tracker Device
- User manual

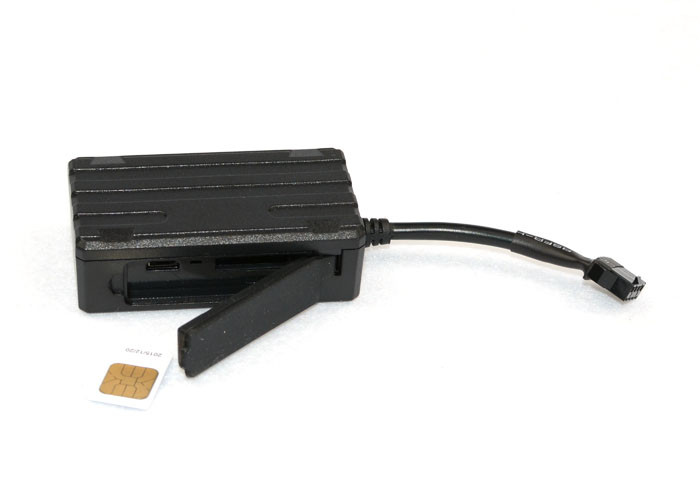

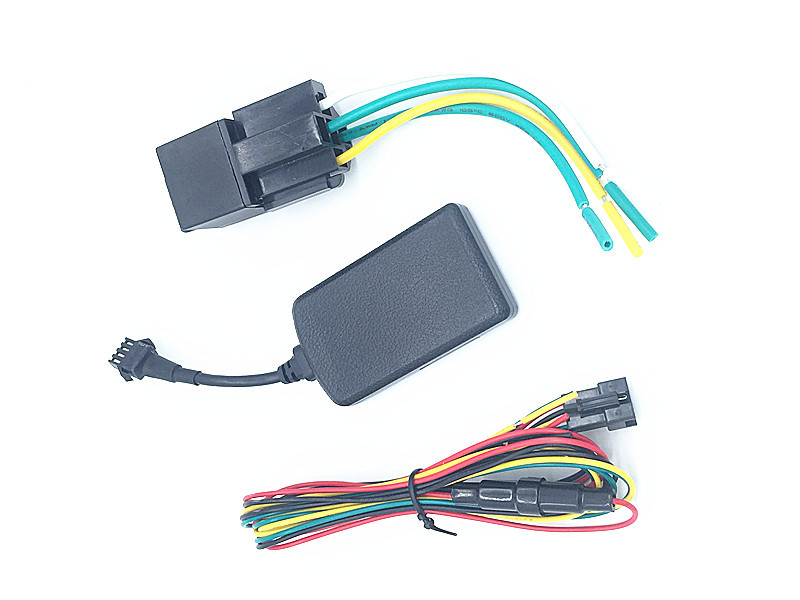

We also have other types GPS tracker for you to choose , see
following pictures :
