Hidden Car Gps Tracker Gps Tracker For Car No Monthly Fee 9-80V
Voltage
CA-V6H is a Mini intelligent GPS Vehicle positioning terminal. It
combines the GSM wireless communication technology and GPS
positioning system technology. terminals using industrial-grade
highly integrated design,intelligent power-saving and passive drift
suppression,installation is simple,connect the power supply to
start work immediately. wide inpute voltage range,wide applicable
to all types of cars,motor cycles. electric cars. ships. etc., can
provide all-weather. real-time vehicle positioning function. with
global positioning service platform,you can achieve remote vehicle
management.
Feature & Function:
GSM quad-band frequency
Real time tracking by SMS/GPRS
Two-way talking function
Overspeed alarm/vibration alarm/main power off alarm/Geofence
ACC Detection
Built-in backup battery to realize power failure alarm
Cut vehicle oil or circuit (optional)
SOS Panic Button (optional)
Voice Monitor (optional)
With Android Or iOS APP Tracking
Wide Input Voltage: 9-75V DC.
OEM and ODM orders are welcome
Hidden Car Gps Tracker Gps Tracker For Car No Monthly Fee 9-80V
Voltage
2. Technical parameter
1).GSM:850/900/1800/1900 Quad band
2).GPRS: Class12, TCP/IP
3).Working Voltage:9-100V DC
4).Working current:≈22mA (12vDC)
5).Working current:≈12mA (24vDC)
6).GPS locating time:Cold start≈38s(Open sky)
Warm start≈32s
Hot start≈2s(Open sky)
7).GPS Precision:10m(2D RM)
8).Working temperature:-20℃～+70℃
9).Working humidity:20%～80%RH
10).Measurement:77(L)×27(W)×15(H)mm
4.Device status indicators
4.1Connect DC 9-36V power supply and the red LED will light
continuously.
4.2The green LED glistens when searching the GPS signals. When GPS
works, the LED lights continuously.
4.3The intermediate blue LED (GSM signal state)
GSM signal is normal, blue LED light long bright. No GSM signal,
the blue LED flashes.
GPS LED not fixed, flashes(0.2 sec/2 sec),Positioning long bright；
GSM LED no signal, flashes(0.2 sec/2 sec),Signal normal long
bright；
Power LED: long bright;
All LEDS will turn off after 5 minutes. When there is a new call,
the LEDs will relight and turn off 5 minutes later.
4.Installation
4.1 Preparation for the installation
4.1.1 Product Check. Open the packing box and check the device‘s model
and accessories. If the model is wrong or the accessories not
complete, please contact the dealer.
4.1.2 Choose SIM card. Please insert a SIM card to the device. Please
take dealer’s advice as reference.
4.1.3 SIM card installation. Discharge the cover of the device and
uncover the SIM card holder. Then insert the SIM card and cover SIM
card holder.
4.1.4 Put back the front cover and screw it up.
4.1.5 Connect the device to the 9-36Vpower supply.(the red LED constant
glow)
4.1.6 Install the device in the hidden place of the car；
The SIM card must be with GPRS function and enough deposit. If your
SIM card need input PIN when power on, please cancel it.
4.2 Installation
The GPS tracker must be installed under professional personnel.
Note:
1) Please install the device in the hidden place as followings:
Under Front windshield；
In the front instrument panel；
Under back windshield；
2) Avoid being placed with signal radiators like reverse sensor ；
3) The device has GSM antenna and GPS antenna inside. Please ensure
the receiving side of the device is face up and without metal
cover.
Note:The metal cover will lessen the receiving of GPS signals.6.
The device connecting requirements.
5. Device wiring requirements
5.1 The device power supply is DC 9-80V. The red line is positive pole
while the black line is negative pole.
5.2 The negative pole of power supply connects with ground or the
metals. Please do not connect with other ground lines.
5.3 When finishing the power supply wire connection, please make the
plug of power supply to the device.
6.The Device Working
6.1 Power on: the device will be power on when connecting to the current. Then
the three LED indicators will light continuously. The device will
upload the data to the online platform (the default interval of
uploading data is 10seconds). When the car is in static state for a
long time, the device will be in energy saving mode and it will be
more smart and precise.
6.2Power off:Pull off the power plug then power off the device.
7.User Settings
7.1 Set class instruction
| 1)CENTER |
| Text command | Parameter | Sample |
| CENTER Add | 710#number# 711#number# | 710#13500135000# 711#13800138000# |
| CENTER Del | D01# D02# | D01# D02# |
| Command Description | 1)Center number can control the oil and power and resume factory
settings 2) Center number can receive the call and text of vibration alarm
and over speeding alarm. 3) SIM must display the income call number to control oil and
power. 4) Only one number can be center number. 5) Change center number must resend the command. 6)Add new center number by CETNER,A, and delete by CENTER,D |
| Command Feedback | Successful Setting:Add admin account 1 OK! |
| 2) View administrator number |
| Text command | Parameter | Sample |
| View | 901# | 901# |
| Command Description | This directive is used to view Device Manager number.
|
| Command Feedback | Successful Setting:Admin1: Admin2: |
| 3)Authorized number set |
| Text command | Parameter | Sample |
| Authorized Add | 101# number # 102# number # 103# number #
| 1:101#13800138000# 2:102#12345678912# 3:103#12345678912#
|
| Authorized Del | D11# D12# D13# | D11# D12# D13# |
| Command Description | 1) Authorization number for SMS control oil. 2) only three numbers to set the authorization number 3) change the authorization number needs to delete the previous
number
|
| Command Feedback | Successful Setting:Add Authorization account 1 OK! |
| 4) View authorized number |
| Text command | Parameter | Sample |
| View authorized | C10# | C10# |
| Command Description | This directive is used to view the equipment authorization number |
| Command Feedback | Successful Setting: Authorization 1: Authorization 2: Authorization 3: |
| 5)APN |
| Text command | Parameter | Sample |
| APN Setting | 802#username#password] | 1:802#intenet#123#123#
|
| Command Description | APN differs according to the local telecom operators. For example:APN request password,please refer to Sample1,and
Sample2 for no password. |
| Command Feedback | Successful Setting:SET APN OK! |
| 6) Set / view SERVER |
| Text command | Parameter | Sample |
| SERVER Parameter | 803#SERVER # port# | 803#222.217.240.243#8011# |
| view SERVER | CIP# | 1)CIP# |
| Command Description | Change the IP and port when move to a new server port:10~65535 1 is domain and 0 is IP； |
| Command Feedback | Successful Setting:set IP OK! |
| 7)TIMER |
| Text command | Parameter | Sample |
| TIMEER Parameter setting | 730#uploading interval# | 730#20# |
| Command Description | Time scope:0,10~300 seconds； 0,no data uploading； 10~300,means time interval；the default value is 15 seconds! |
| Command Feedback | Successful Setting:SET TIMER OK! |
| 8) Alert on/off |
| Text command | Parameter | Sample |
| Alert on Command | 911# | 911# |
| Alert off command | 910# | 910# |
| Command Description | This command is used to set the alert on/off, against unknown
movement or shake. |
| Command Feedback | Reply Set successfully |
| 9)STATIC |
| Text command | Parameter | Sample |
| STATIC | SUP# time interval# | SUP#5# |
| Command Description | Time scope:1~1440 minutes；The device has3Dtransmission and the
default time interval are 5 minutes. |
| Command Feedback | Successful Setting:SET STATIC TIME OK! |
| 10) Cancel the continuous upload |
| Text command | Parameter | Sample |
| NUP | NUP# | NUP# |
Command Description | This command is used to cancel sending data to the platform If need again to restore the upload , you need to send TIMEER
Parameter setting or STATIC |
| Command Feedback | SET OK! |
| 11)RELAY |
| Text command | Parameter | Sample |
| RELAYParameter1 | 222# | 222# cut off oil and power |
| RELAYParameter2 | 333# | 333# recover oil and power |
Command Description | 1)RELAY control the start and closeness of the relay 2) Only the center number can operate. 3)the device only cut off the oil circuit on the condition of the
driving speed below 20KM/H or in static state. 4)When send the command, the device will reply “please waiting
“When the vehicle speed is over 20KM/H, the device will cut off the
oil or the power when the speed below 20KM/H. |
Command Feedback |
Successful Setting:Fuel cut has already been completed OK! |
Performance Parameters:
Content | Specs. |
Dim. | 94mm x 45mm x 14mm |
Weight | 85g |
Network | GSM/GPRS |
Band | 850/900/1800/1900Mhz |
GPS chip | UBLOX |
GPS sensitivity | -159dBm |
GPS accuracy | 5m |
Time To First Fix | Cold status 35-80s Warm status 35s Hot status 1s |
voltage input | 9－80V input
|
Battery | Build-in 3.7V 200mAh Li-ion battery |
Storage Temp. | -40°C to +85°C |
Operation Temp. | -20°C to +55°C |
Humidity | 5%--95% non-condensing |
Gurantee: 1 YEAR WARRANTY.
2. Optional configurations
Accessories (relay) for cut fuel/circuit
MIC 1pc (optional accessory)
SOS Alarm button (optional accessory)

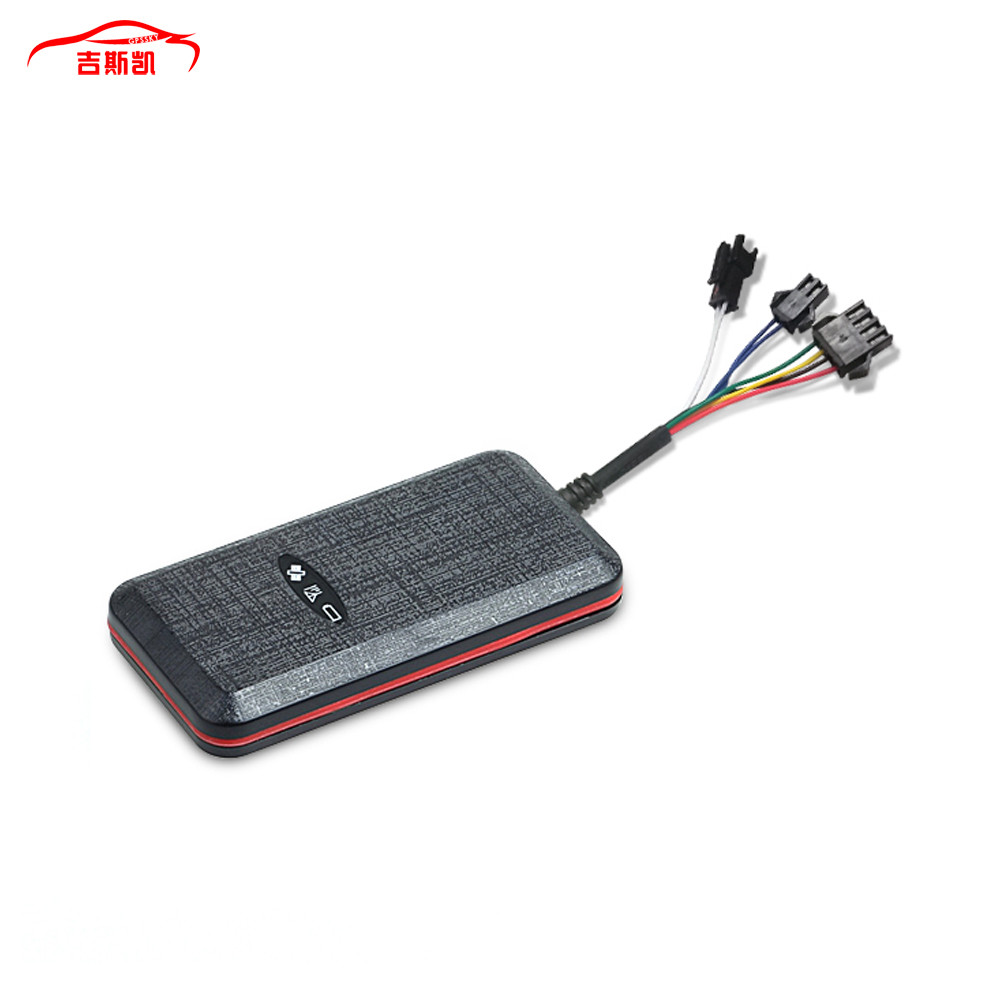

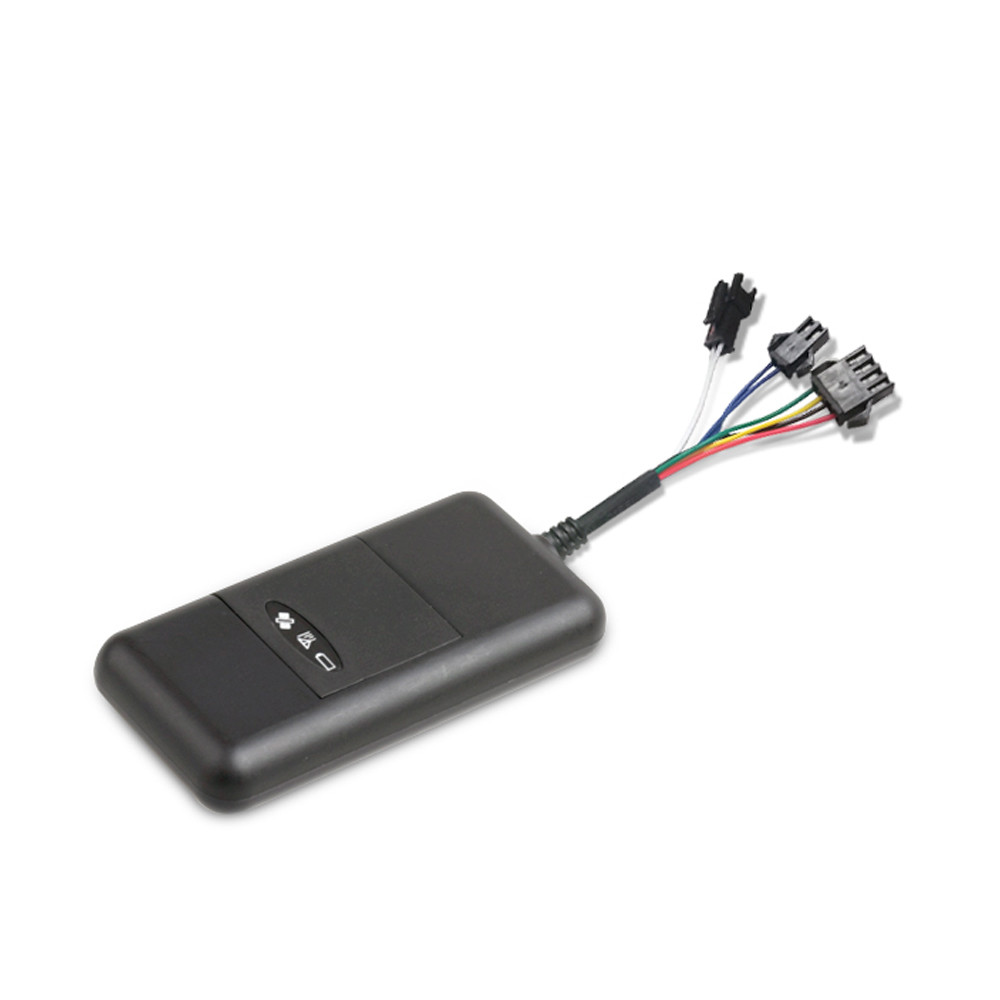

Pictures:
