Ethiopia CE/ IOS Vehicle Gps Speed Limiter/Speed Governor For
Truck/Forklift 2020
Speed governor or speed limiter is a device designed to limit the speed of
vehicle like truck, schools bus, car forklift and so on. Most of
the speed governors are fitted because of the government
regulations.
Our compact and reliable Road and Engine Speed Limiter improve the
safety of your vehicle.
Get Cheap Price Speed Limiter. Huge Saving. Call Now. Good Quality. OEM/ODM Accept. The Best
After Sales Care. Continuous Innovation. OEM: Support. ISO9001
Certified. Types: Buses Speed Limiter, Truck Speed Limiter, Forklift Speed Limiter, Forklift Speed governor.
Summary of Requirements
These items must be installed and tested on the respective Agency’s
vehicles; and training on the operation and maintenance of the
system (if applicable) must be provided to the staff of these
organizations. The bidders/ potential suppliers need to be among
the vendors/ suppliers Authorized by the Federal Transport
Authority of Ethiopia to provide the supply and installation of the
Speed Limiter.
Technical Parameter:
| Content | Specs. |
| Dim. | 117*92*31 (mm) |
| Weight | 280g |
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900MHz |
| GPS chip | U-blox |
| GSM/GPRS Module | SIM800C |
| Bluetooth Module | BT360I |
| CPU | STM32F105RBT6 |
| Power IC | TD1509-ADJ |
| Anti-jamming | Strengthened Anti-jamming |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5 m |
| Time To First Fix | Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
| Work Voltage | DC 9V－36V |
| Battery | Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable) |
| Standby work current | < 40mA |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
1. Product Description
| Item | Product Description |
| 1 | Vehicle speed limiter CA100F is a intelligent terminal equipment
which can realize precise speed limiting for vehicles. It is not
only a speed limiter but also a GPS Tracker. |
| 2 | The retrieved data shall be in a format that the motor vehicle
inspection officer will be able to understand without requiring the
services of a speed limiter specialist. |
| 3 | The speed limiting device shall be so designed, constructed and
assembled so as to resist vibrations, corrosion, dust, humidity,
petrochemicals and aging phenomena to which it may be exposed. |
| 4 | No malfunction or unauthorized interference shall result in an
increase in engine power above the demanded by the position of the
driver's accelerator. The malfunction of the speed limiter devices
shall not affect the normal vehicular performance; |
2. Application Field:
Fixed Speed Control
Customized fixed maximum top speed limit that increases the safety
and fuel economy of your fleet.
Reverse Speed Control
Limits a vehicle's top speed in reverse. Limiting reverse top speed
increases safety during a statistically high-risk category of
operation.
Acceleration Control
Controls the rate at which the vehicle is able to accelerate.
Inhibiting aggressive driving behaviors, increasing safety, and
greatly improving fuel economy.
Upgradeable to ISA
Upgrade your VMS from fixed top speed limiting to variable top
speed limiting at any time with our optional SpeedIQ kit. The
upgrade offers even goverride Mode
Configurable overrides by a variety of input methods. This
capability is especially useful for Emergency Services and other
who require access to full speed and acceleration at times.
Ethiopia CE/ IOS Vehicle Gps Speed Limiter/Speed Governor For
Truck/Forklift 2020
3. Including
| Function |
| Fixed Speed Control | Customized fixed maximum top speed limit that increases the safety
and fuel economy of your fleet. |
| Reverse Speed Control | Limits a vehicle's top speed in reverse. Limiting reverse top speed
increases safety during a statistically high-risk category of
operation. |
| Acceleration Control | Controls the rate at which the vehicle is able to accelerate.
Inhibiting aggressive driving behaviors, increasing safety, and
greatly improving fuel economy. |
| Upgradeable to ISA | Upgrade your VMS from fixed top speed limiting to variable top
speed limiting at any time with our optional SpeedIQ kit. |
| Override Mode | Configurable overrides by a variety of input methods. This
capability is especially useful for Emergency Services and other
who require access to full speed and acceleration at times.reater
safety and savings. |

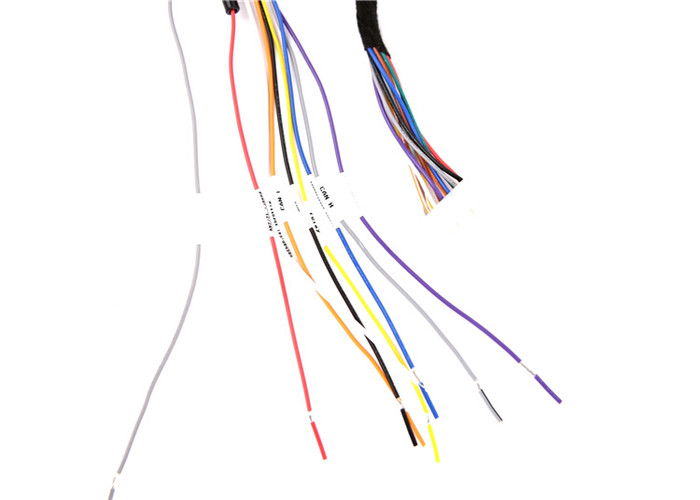

Following lines are indispensable in installation:
6: Brown line
8: Orange line, the line of the buzzer
9: Gray line, pick up the pulse line of the original car, connect
the pulse line speed limiter, the speed limit function will not
have too much delay, use GPS signal speed limit, there will be a
delay of about 2 seconds
10: ACC line
11: Power ground
12: Positive power supply
advantages of using Vehicle/Gps Speed Governor/Limiter:
Safety by avoid over speeding.
Increasing engine life
Increasing engine efficiency
Reduce maintenance cost
Reduce pollution, increase environmental protection
Ensure road safety for pedestrian, drivers, passengers and goods.
Limp mode testing
First, send command: openpulse*123456 When cut off the car speed
pulse line, the car will be limit to max speed is 30km/h, this
speed will use the GPS speed.
When remove the whole white head connector, the car also will limit
to 30km/h
Note: If it is a mechanical throttle car, the white wire of the BH
(black head harness) must also be connected to the relay. When the
WH (White head harness) is removed, the white wire will control the
relay to limit the speed, and the black wire of BH also need to
connect the GND of the car
Bluetooth printer:
Printer power light--Blue light if it is steady light indicates
Bluetooth connection is normal, if blue light is off, Bluetooth is
not connected
5. ADD GPS device to the platform
About platform
1. Load the GPS platform: www.gps-go.com
User:xxxx password:123456
Note: xxxx is the platform account, need to contact with salesman
to get this account name and password
For APP, search gps-go in google store or download from this QR:
2 create the account or user:
Technical specifications for Goods
· Speed Limiter Device with Integrated GPS: As per standard set by
Ethiopian Standard Agency Standard Road Vehicle-GPS integrated
Speed limiter Devices Requirements
· To provide Warranty for two years for any problem that arise due
to the device internal problem but this doesn’t include for damage
due to external force , extreme heat, fire or voltage of
electricity or when the devise is opened by any other person other
than the company’s technician
· Speed Limit Equipment competency Verification Certificate is
approved by the Ethiopian Road Authority to supply and install
Speed Limiter with integrated GPS system.
· Committed to comply with Human rights and labour issues (e.g.
fundamental principles and rights at work, occupational health and
safety, fairly traded goods, etc)
