Ethiopia Standard CE Certificate Car Vehicle GPS Speed Limiter Speed Limiting System

1. Product Information:

Vehicle speed limiter CA100F is a intelligent terminal equipment which can realize precise speed limiting for vehicles. It is not only a speed limiter but also a GPS Tracker.

The product adopts ARM intelligent chip, speed control precision is very

high , and the performance is reliable. It will not affect the big throttle start nor the power torque, stable and reliable; Only limit the maximum speed, the vehicle will not stall during speed limiting, and ensure the throttle pedal free movement in the right speed range.

CA100F reserves a wealth of interface, can work together with a variety of external equipment, with high compatibility and performance.

2. Parameter:

Ethiopia Standard CE Certificate Car Vehicle GPS Speed Limiter Speed Limiting System

3. The install steps:

3.1 Find the vehicle accelerator pedal line harness at first ,then find the two signal lines from the six lines with multi-meter test.

There are six lines in the accelerator pedal interface , two power lines ,two ground lines , and two signal lines. Start the vehicle, step on the accelerator pedal, let the vehicle in idle state, then the signal line voltage value will change,thus you can find the signal lines.

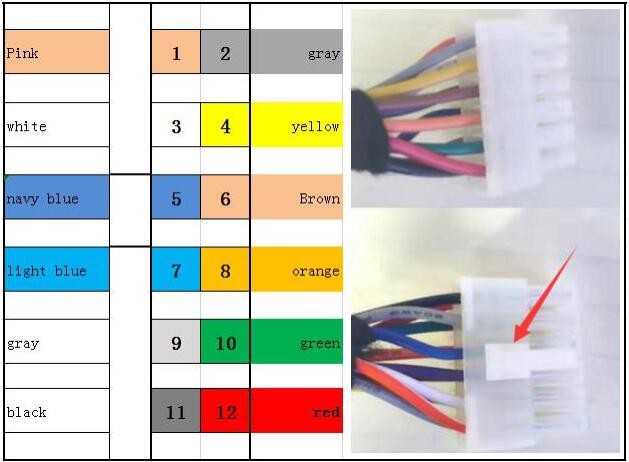

3.2 Cut the two signal lines , and then connect <10brown line+9yellow line> and <4blue line+3white line> to the signal lines respectively.

Please note that as shown in the figure following , 10brown and 4 blue line are connected to the part close to the ECU, 9yellow and 3 white are connected close to the accelerator pedal.

3.3 Find the speed pulse signal line of the car, connect to the 9 gray line of the GPS speed limiter, connect the speed pulse line, and the speed limit delay time is within 1 second.

3.3.1 How to find the speed pulse line:

With an oscilloscope, a square wave appears when the car is started. The square wave is wider when it is static. When it is accelerated, the waveform is narrower and changes according to the speed. The output waveform is about 0.5V-12V.

3.3.2 The main position of the speed pulse line is in the following sections:

A. behind the dashboard

B. Audio host part

C. Gearbox output

D. Driving computer parts

E. ECU electric unit

3.4 After GPS SPEED LIMITER is installed completely, start the vehicle first. When the vehicle is idling, send a text message “STARTIDLE*123456”, the device will automatically learn the idle voltage, and then return the learned idle voltage value to the mobile phone. Then use the text message "SPEED*123456*xxx" to set the speed limit value, first test it with GPS speed, and the speed limit function is normal. If you can find the original car speed pulse line, you can make the car run at a constant speed of 30km/h, then press the button twice to calibrate the current pulse coefficient.

4. LED indicator

4.1 The red light is the power indicator. If it is steady, it indicates that the main power is on, and the off indicates that the main power is off.

4.2 Blue is the GPS indicator, always on indicates GPS positioning, and off means that GPS is not positioned.

4.3 Green is the system indicator. If it is steady, it indicates that the GSM network is not registered. Flashing indicates that the GSM network has been registered. Flashing twice indicates that GPRS is connected.

5. Key operation:

5.1 Press and hold for more than 3 seconds, the buzzer will sound and export data to the U disk.

5.2 Press the button 3 times continuously, the buzzer will sound and output data to the printer.

5.3 Press the button twice continuously, the buzzer sounds 2 times, and the current pulse coefficient is automatically calibrated.

Ethiopia Standard CE Certificate Car Vehicle GPS Speed Limiter Speed Limiting System

6. Bluetooth printer:

Printer power light--Blue light if it is steady light indicates Bluetooth connection is normal, if blue light is off, Bluetooth is not connected

7. SMS command:

8. Application Field:

Fixed Speed Control
Customized fixed maximum top speed limit that increases the safety and fuel economy of your fleet.

Reverse Speed Control
Limits a vehicle's top speed in reverse. Limiting reverse top speed increases safety during a statistically high-risk category of operation.

Acceleration Control
Controls the rate at which the vehicle is able to accelerate. Inhibiting aggressive driving behaviors, increasing safety, and greatly improving fuel economy.

Upgradeable to ISA
Upgrade your VMS from fixed top speed limiting to variable top speed limiting at any time with our optional SpeedIQ kit. The upgrade offers even gOverride Mode
Configurable overrides by a variety of input methods. This capability is especially useful for Emergency Services and other who require access to full speed and acceleration at times

9. Product Accessory:

10. After-sale service:

Warranty statement:

The specification are subject to modification without notice.

If the appearance and color of the product is changed, please take the actual product as the standard.

This warranty card is only applicable to the following listed IMEI/ID machine.

Please keep this warranty card, and please present this card and the original purchase receipts when repair service.

This is the basic certificate of warranty, please fill in this card carefully and keep it well.
