GPS Vehicle Speed Limiter Speed Limit Machine IMEI and ID Number Manage System

1 Speed Limiter GPS Product Specifications

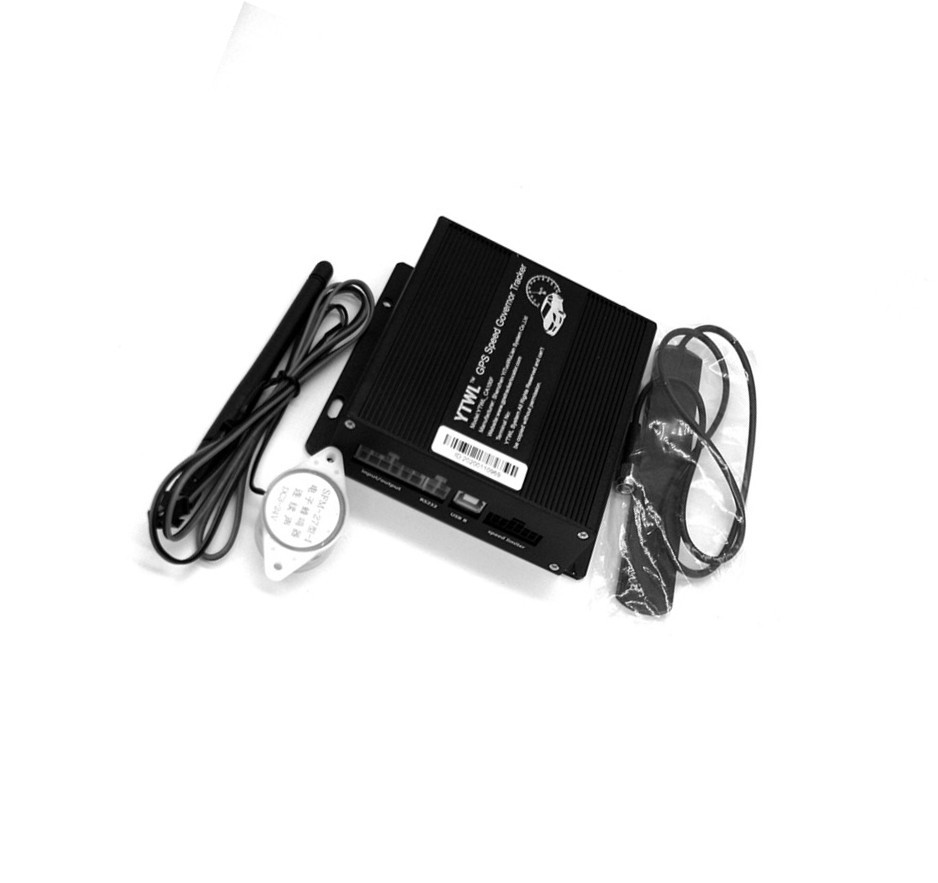

Vehicle speed limiter CA100F is an intelligent terminal equipment which can realize precise speed limiting for vehicles. It is not only a speed limiter but also a GPS Tracker.Speed control precision is very high and the performance is reliable. It will not affect the big throttle start nor the power torque, stable and reliable. It only limits the maximum speed and the vehicle will not stall during speed limiting, and ensure the throttle pedal free movement in the right speed range.

2. Speed Limiter Requirement

GPS Vehicle Speed Limiter Speed Limit Machine IMEI and ID Number Manage System

1. The speed limiter device systems shall be "failsafe" in such a way that if the plug/s to the electronic controller is/are removed, power is disconnected or if the speed signal and/or wire is disconnected the vehicle shall automatically, default to a limp mode or the engine shall stall or return to idle or, at least, and thus shall not be able to be driven in excess of thirty kilometers per hour. (30km/h);
2. For the purpose of anti-tampering of the setting of the "set speed" of a speed limiter device, the connection points on a speed limiter device for adjustment of "set speed" shall be properly sealed and protected from unauthorized adjustment.
3. The device shall support hand held portable printer (Bluetooth, WiFi, etc) enabled;
4. The speed limiter device system shall be able to be verified. Authenticated and tested whilst the vehicle is "on" the road.
5. Speed limiter devices shall be so constructed that the vehicle may not be accelerated by the operation of the acceleration devices, such as the accelerator pedal, when the vehicle is running at its set speed.
6. The speed limiter function or the speed limiter device shall allow normal accelerator control for the purpose of gear changing.

• How to connect the relay?

Answer:Relay have 4 lines:87A and 30PIN are respectively connected to the two ends of the cut oil pump line;86 connects 12V or 24V power line in series;85PIN connects to the white line of the GPS speed limiter.Note: Control the speed of the speed limiter with above way, the delay of the speed limit will be relatively large. For example, if the speed limit is set to 40km/h, the car can also run up to 50km/h during acceleration. So, find the car pulse speed line and calibrate the pulse speed, the delay will be much smaller.For vehicles with mechanical throttle, if want to limit the speed without delay, need connect a solenoid valve and use a relay to control the solenoid valve to achieve the purpose of real-time speed limit.

• Does the speed limiter have the managment fleet platform?

shenzhen CarTracker Technology Co., Ltd was founded in 2009,it is one of the most professional manufacturers for gps tracker and mobile DVR product.Our company is located in Shenzhen city,Guangdong province,China.At present our GPS Tracker products are mainly exported to Southeast Asia,Africa,South America,The Middle East ,Europe and so on.

Our main products are Car GPS Tracker,Personal GPS Tracker,large battery GPS Tracker and 3G mobile DVR.Every year we develop new products to meet customer requirements.and they are certified by CE,ROHS,FCC and 3C certification bodies.

We have a Research and Development team of more than twenty engineers. Most of them have a master's degree and 12 engineers have more than 8 years work experience in the GPS Industry.we also have a group of professional sales and after sales team. they will provide after-sales and pre-sales technical support for you.

Our factory is located in Cuishan industrial area,we have about 2000 square meters of building area and more 200 production staff.they are mainly responsible for gps product production,testing and quality control.our monthly output is more 20000pieces.the factory has passed ISO9001,ISO14000 Certification.

Welcome to visit our factory and we look forward to the opportunity to cooperate.
