GPS Speed Limiter Speed Limit Control GPS Antenna Bluetooth Antenna with Relay

1 Speed Limiter GPS Product Specifications

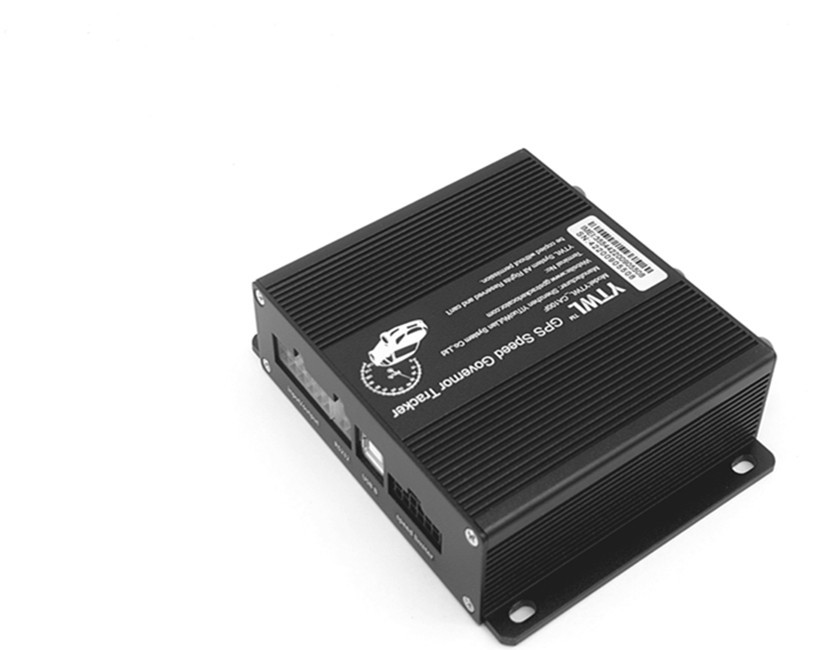

Vehicle speed limiter CA100F is an intelligent terminal equipment which can realize precise speed limiting for vehicles. It is not only a speed limiter but also a GPS Tracker.Speed control precision is very high and the performance is reliable. It will not affect the big throttle start nor the power torque, stable and reliable. It only limits the maximum speed and the vehicle will not stall during speed limiting, and ensure the throttle pedal free movement in the right speed range.

2. Speed Limiter Requirement

GPS Speed Limiter Speed Limit Control GPS Antenna Bluetooth Antenna with Relay

1. The input speed signal shall be obtained from global navigating system (GNS) or speedometer vehicle speed signal or a converted speed signal from vehicle gearbox or from other separately installed sensor as deemed appropriate;
2. The speed limiter devices shall be of industrial grade and designed for automotive application.
3. All components necessary for full function of the speed limiter or the Speed limiter device shall be energized whenever the vehicle is being driven;
4. The device should provide functional check facility by which the set speed and functioning can be checked by the field and other concerned authorities.
5. The speed limiter device system shall be equipped with a system which shall accept an external device for testing the speed limiter and verifying its functionality.
6. The speed limiter device system shall be able to be verified. Authenticated and tested whilst the vehicle is "on" the road.

• How to connect the relay?

Answer:Relay have 4 lines:87A and 30PIN are respectively connected to the two ends of the cut oil pump line;86 connects 12V or 24V power line in series;85PIN connects to the white line of the GPS speed limiter.Note: Control the speed of the speed limiter with above way, the delay of the speed limit will be relatively large. For example, if the speed limit is set to 40km/h, the car can also run up to 50km/h during acceleration. So, find the car pulse speed line and calibrate the pulse speed, the delay will be much smaller.For vehicles with mechanical throttle, if want to limit the speed without delay, need connect a solenoid valve and use a relay to control the solenoid valve to achieve the purpose of real-time speed limit.

• How to set the speed limit value?
