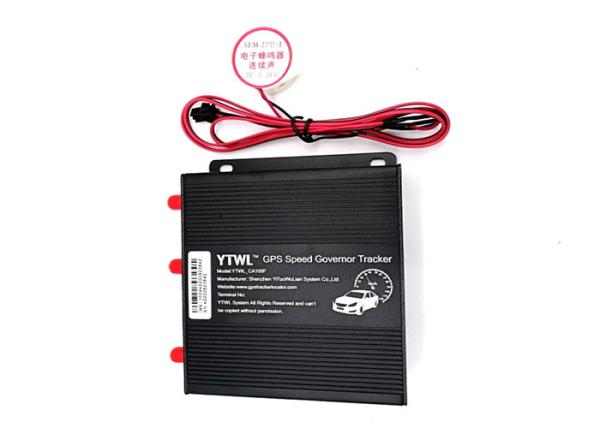

M25 Speed Limiters For Vans Overspeed Alarm Ehiopia Standard Gps
Speed Limiter
Supply and Installation of Speed Limiter with integrated GPS system
on 200 units of vehicles
Reference: ITB/2020/13893
Beneficiary country(ies): Ethiopia
Registration level: Basic
1. Product Function:
| Limiting Mode | Limiting Function Introduction |
| Differentiate Road Section Intelligent Speed Limiting | Limit the highest vehicle speed according to the current road speed
limit value.Such as: if the current road speed limit value is 80
Km/h,the product can control the highest vehicle speed is within 0
~ 80 Km/h. If the road limit value is 100 Km/h,the product can
control the vehicle speed keep within 100 Km/h. |
| Differentiate Time Intelligent Speed Limiting | Limit the highest vehicle speed according to different time period
. Such as: if you set the highest driving speed as 50Km/h from
2.00-5:00, and 80Km/h for the other time period. So this product
can control the vehicle highest speed as 50Km/h from 2.00-5:00, and
80Km/h for the other time period as your order. |
| Differentiate Vehicle Type Intelligent Speed Limiting | Limit the highest vehicle speed according to different vehicle
type.
Such as: for high speed compact car ,limit within 120Km/h; for
large vehicle, limit within 100Km/h; for dangerous goods
transporter, limit within 60Km/h. |
| Differentiate Road Type Intelligent Speed Limiting | Limit the highest vehicle speed according to different road type.
Such as: on high-speed road, speed limit within 120 100Km/h; for
fast road, speed limit within 100 Km/h, State Road 60Km/h, county
road limit 50Km/h, this product according to road speed limit. |
| Fixed Highest Speed Limiting | Can set only one or two highest driving speed value for the
vehicle. Such as: According to the government regulations, some
vehicle should not driving over 100Km/h(or any other appointed
speed), the product can control the vehicle keep driving within
100Km/h(or any other appointed speed) |
| Note | All the intelligent speed limit function need platform support, it
means your platform must have a database contains the speed limit
value of each road ,if not , we can only supply the fixed highest
speed limiter for you, it means that we can only set one or two
high speed limit vale in this product. |
Other extension functions | - Vehicle speed pulse detection;
- Intelligent ACC detection;
- One channel high input detection, one channel low input detection;
- One channel power-off control output, one channel oil-off control
output;
- Three channels of analog input. One is used for fuel consumption
data detection, another is used for the ordinary analog voltage
detection, the third one is for standby;
- One channel RS232 defining interface;
- One channel RS232/RS458 compatible interface;
8) The (G-SENSOR) acceleration sensor interface reserved, can open
for some customer need. |
2. Application Field:
1.Vehicle Commanding and Dispatching System;
2.Heavy Construction Vehicles Tracking Device;
3.Dangerous goods transportation;
M25 Speed Limiters For Vans Overspeed Alarm Ehiopia Standard Gps
Speed Limiter
Product parameter
| Freature | range |
| Type | one way |
| Function | speed limiter |
| Voltage | 12v/36v |
| Frequency (MHz) | 20-50HZ |
| Place of origin | Guandong, China |
| Model number | YTWL_CA100F |
| Warranty | 2 years |
| Application temperature | -35℃ to -50℃ |
| Speed range | 10 to 120km/h |
| Speed limit deviation | ± 1km/h |
| Rated power consumption | 2w |
| Operating voltage range | DC9V~36V |
M25 Speed Limiters For Vans Overspeed Alarm Ehiopia Standard Gps
Speed Limiter
3. Including
| Fixed Speed Control |
| Reverse Speed Control |
| Acceleration Control |
| Variable Top Speed Control |
| Location Based Control |
| Over the Air Updates |
| Real Time Vehicle Tracking |
| Real Time Vehicle Health |
| Driver Behavior Analysis |
4. Installation:
2) Installation steps:
This product is applicable for the widely used EFI vehicles and the
old cable-drawing type oil injection vehicles .
For the old cable-drawing oil injection vehicles,we need add a
actuator to realize the speed limit function. We connect the steel
cable of the actuator to the vehicle throttle drawing cable from
the opposite side, to form a counter force. When the vehicle is
over speed, the the steel cable of the actuator will draw the
vehicle throttle drawing cable from the opposite side, thus the
throttle valve mouth will get smaller, to realize the compulsive
speed limit function.
For EFI vehicle, the limiter will simulate the voltage value of the
throttle sensor, when the vehicle is over speed, The limiter will
give ECU a idle voltage value, ECU will control the throttle
according to this voltage value. When the vehicle is over speed,
The limiter will give ECU a idle voltage value, ECU will control
the throttle according to this voltage value. When the vehicle is
in normal driving state(not over speed), the throttle sensor will
give ECU normal driving voltage, let the vehicle keeping normal
driving.
1) Product Accessory:
① Power wire
② Executor wire
③ Extension wire
④ Speaker
⑤ GPS Antenna
⑥ GSM Antenna
⑦ SIM Card Slot
⑧ User Manual
Technical specifications for Goods
· Speed Limiter Device with Integrated GPS: As per standard set by
Ethiopian Standard Agency Standard Road Vehicle-GPS integrated
Speed limiter Devices Requirements
· To provide Warranty for two years for any problem that arise due
to the device internal problem but this doesn’t include for damage
due to external force , extreme heat, fire or voltage of
electricity or when the devise is opened by any other person other
than the company’s technician
· Speed Limit Equipment competency Verification Certificate is
approved by the Ethiopian Road Authority to supply and install
Speed Limiter with integrated GPS system.
· Committed to comply with Human rights and labour issues (e.g.
fundamental principles and rights at work, occupational health and
safety, fairly traded goods, etc)
