YTWL_CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter Speed
Limiting Device
Supply and Installation of Speed Limiter with the integrated GPS
system on 200 units of vehicles
Reference: ITB/2020/13893
Beneficiary Country: Ethiopia
Registration level: Basic
Ethiopia has provisionally agreed on new rules that state speed
limiters will become mandatory for all vehicles sold throughout the
country.
Road Speed Limiters were developed to improve safety and the
environment by controlling the speed of vehicles, thus reducing
serious accidents and pollution. The basic function of the system
is to limit the maximum speed of a vehicle to a pre-set level
without affecting any of the performance of the vehicle.
Product Function:
| Limiting Mode | Limiting Function Introduction |
| extension functions | 1) Mainly used in Kenya to control vehicle speed and further expand
the market for auto speed limiters in Ethiopia. |
| 2) Vehicle speed pulse detection; it is a speed limiter and also a
GPS tracker, surpassing the traditional GPS tracker. |
| 3) One channel high input detection, one channel low input
detection; |
| 4) One channel power-off control output, one channel oil-off
control output; |
| 5) Three channels of analog input. One is used for fuel consumption
data detection, another is used for the ordinary analog voltage
detection, the third one is for standby; |
| 6) One channel RS232 defining interface; |
| 7) One channel RS232/RS458 compatible interface; |
| 8) The (G-SENSOR) acceleration sensor interface reserved, can open
for some customer need. |
| Differentiate Road Section Intelligent Speed Limiting | Limit the highest vehicle speed according to the current road speed
limit value. Such as: if the current road speed limit value is 80
Km/h, the product can control the highest vehicle speed is within 0
~ 80 Km/h. If the road limit value is 100 Km/h, the product can
control the vehicle speed keep within 100 Km/h. |
| Differentiate Time Intelligent Speed Limiting | Limit the highest vehicle speed according to the different time
periods. Such as: if you set the highest driving speed as 50Km/h
from 2.00-5:00, and 80Km/h for the other time period. So this
product can control the vehicle's highest speed as 50Km/h from
2.00-5:00, and 80Km/h for the other time period as your order. |
| Differentiate Vehicle Type Intelligent Speed Limiting | Limit the highest vehicle speed according to different vehicle
types. |
| Such as: for a high-speed compact car , limit within 120Km/h; for a
large vehicle, limit within 100Km/h; for dangerous goods
transporter, limit within 60Km/h. |
| Differentiate Road Type Intelligent Speed Limiting | Limit the highest vehicle speed according to different road types. |
| Such as: on a high-speed road, the speed limit within 120 100Km/h;
for fast road, the speed limit within 100 Km/h, State Road 60Km/h,
county road limit 50Km/h, this product according to the road speed
limit. |
| Fixed Highest Speed Limiting | Can set only one or two highest driving speed value for the
vehicle. Such as: According to the government regulations, some
vehicle should not driving over 100Km/h(or any other appointed
speed), the product can control the vehicle keep driving within
100Km/h(or any other appointed speed) |
YTWL_CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter Speed
Limiting Device
Product Description

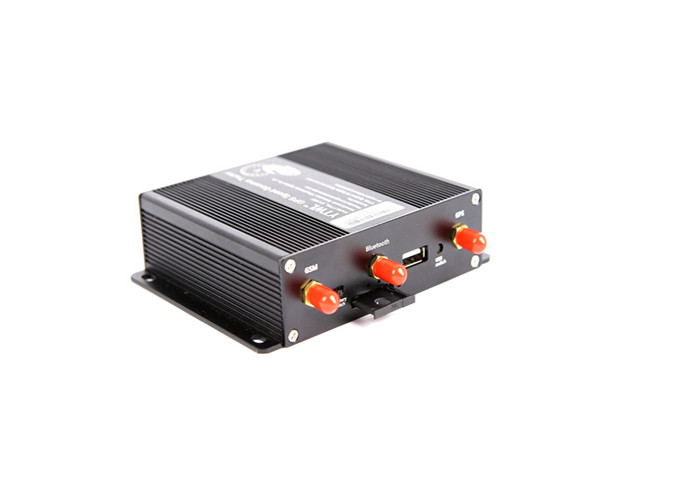

Vehicle speed limiter CA100F is intelligent terminal equipment that
can realize precise speed limits for vehicles. It is not only a
speed limiter but also a GPS Tracker.
The retrieved data shall be in a format that the motor vehicle
inspection officer will be able to understand without requiring the
services of a speed limiter specialist.
The speed limiting device shall be so designed, constructed, and
assembled so as to resist vibrations, corrosion, dust, humidity,
petrochemicals, and aging phenomena to which it may be exposed.
No malfunction or unauthorized interference shall result in an
increase in engine power above the demanded by the position of the
driver's accelerator. The malfunction of the speed limiter devices
shall not affect the normal vehicular performance;
2. Technical Parameter:
| Content | Specs. |
| Dim. | 117*92*31 (mm) |
| Weight | 280g |
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900MHz |
| GPS chip | U-blox |
| GSM/GPRS Module | SIM800C |
| Bluetooth Module | BT360I |
| CPU | STM32F105RBT6 |
| Power IC | TD1509-ADJ |
| Anti-jamming | Strengthened Anti-jamming |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5 m |
| Time To First Fix | Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
| Work Voltage | DC 9V－36V |
| Battery | Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable) |
| Standby work current | < 40mA |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
YTWL_CA100F Road Ethiopia Standard Vehicle GPS Speed Limiter Speed
Limiting Device
3. Installation:
1) Product Accessory:
① Power wire
② Executor wire
③ Extension wire
④ Speaker
⑤ GPS Antenna
⑥ GSM Antenna
⑦ SIM Card Slot
⑧ User Manual
The following lines are indispensable in the installation:
6: Brown line
8: Orange line, the line of the buzzer
9: Grayline, pick up the pulse line of the original car, connect
the pulse line speed limiter, the speed limit function will not
have too much delay, use GPS signal speed limit, there will be a
delay of about 2 seconds
10: ACC line
11: Power ground
12: Positive power supply
