YTWL-100F Ethiopia Speed Limiter Road Traffic Motor Vehicles, Speed
Limiters Rules
“speed limiter” means a device designed to limit the maximum speed
of a motor vehicle by controlling the engine power of the vehicle.
Product Function:
| Limiting Mode | Limiting Function Introduction |
| extension functions | 1) Mainly used in Kenya to control vehicle speed and further expand
the market for auto speed limiters in Ethiopia. |
| 2) Vehicle speed pulse detection; it is a speed limiter and also a
GPS tracker, surpassing the traditional GPS tracker. |
| 3) One channel high input detection, one channel low input
detection; |
| 4) One channel power-off control output, one channel oil-off
control output; |
| 5) Three channels of analog input. One is used for fuel consumption
data detection, another is used for the ordinary analog voltage
detection, the third one is for standby; |
| 6) One channel RS232 defining interface; |
| 7) One channel RS232/RS458 compatible interface; |
| 8) The (G-SENSOR) acceleration sensor interface reserved, can open
for some customer need. |
2. Application Field:
Fixed Speed Control
The customized fixed maximum top speed limit increases the safety
and fuel economy of your fleet.
Reverse Speed Control
Limits a vehicle's top speed in reverse. Limiting reverse top speed
increases safety during a statistically high-risk category of
operation.
Acceleration Control
Controls the rate at which the vehicle is able to accelerate.
Inhibiting aggressive driving behaviors, increasing safety, and
greatly improving fuel economy.
Upgradeable to ISA
Upgrade your VMS from fixed top speed limiting to variable top
speed limiting at any time with our optional SpeedIQ kit. The
upgrade offers even override Mode
Configurable overrides by a variety of input methods. This
capability is especially useful for Emergency Services and others
who require access to full speed and acceleration at times.
YTWL-100F Ethiopia Speed Limiter Road Traffic Motor Vehicles, Speed
Limiters) Rules
3. Technical Parameter:
| Content | Specs. |
| Dim. | 117*92*31 (mm) |
| Weight | 280g |
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900MHz |
| GPS chip | U-blox |
| GSM/GPRS Module | SIM800C |
| Bluetooth Module | BT360I |
| CPU | STM32F105RBT6 |
| Power IC | TD1509-ADJ |
| Anti-jamming | Strengthened Anti-jamming |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5 m |
| Time To First Fix | Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
| Work Voltage | DC 9V－36V |
| Battery | Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable) |
| Standby work current | < 40mA |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
YTWL-100F Ethiopia Speed Limiter Road Traffic Motor Vehicles, Speed
Limiters Rules

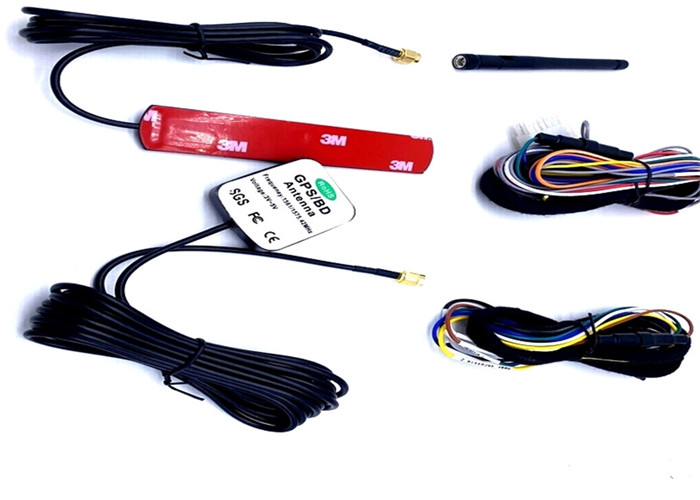

3. Including
| (1) An authorized agent shall keep a record of the serial number of
all speed limiters which it has sealed pursuant to these Rules for
a period of not less than 10 years. |
(2) When an authorized agent has sealed a speed limiter, it shall
supply the owner of the vehicle with a label which shows clearly
and indelibly —| (a) | the type of speed limiter fitted; | | (b) | the set speed (km/h); | | (c) | the date of calibration and sealing; | | (d) | the seal number; | | (e) | the name of the calibrator and the sealer; | | (f) | the vehicle registration number; | | (g) | the frequency of speed pulse; and | | (h) | the tyre size. |
|

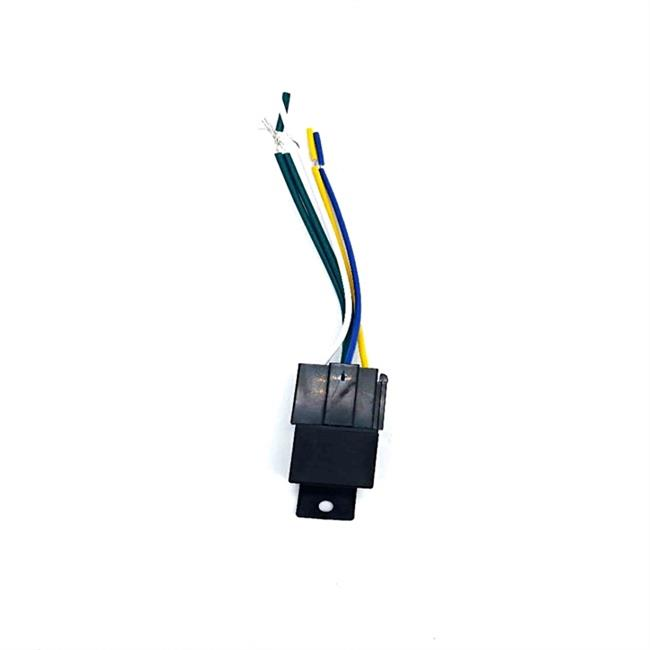

4.5.2 How to connect the relay
Relay have 4 lines:
87A and 30PIN are respectively connected to the two ends of the cut
oil pump line
86 connects 12V or 24V power line in series
85PIN connects to the white line of the GPS speed limiter.
The following lines are indispensable in the installation:
6: Brown line
8: Orange line, the line of the buzzer
9: Grayline, pick up the pulse line of the original car, connect
the pulse line speed limiter, the speed limit function will not
have too much delay, use GPS signal speed limit, there will be a
delay of about 2 seconds
10: ACC line
11: Power ground
12: Positive power supply
Technical specifications for Goods
· Speed Limiter Device with Integrated GPS: As per standard set by
Ethiopian Standard Agency Standard Road Vehicle-GPS integrated
Speed limiter Devices Requirements
· To provide a Warranty for two years for any problem that arises
due to the device internal problem but this doesn’t include damage
due to external force, extreme heat, fire or voltage of electricity
or when the device is opened by any other person other than the
company’s technician
· Speed Limit Equipment competency Verification Certificate is
approved by the Ethiopian Road Authority to supply and install
Speed Limiter with an integrated GPS system.
· Committed to complying with Human rights and labor issues (e.g.
fundamental principles and rights at work, occupational health and
safety, fairly traded goods, etc)
Other product
GPS tracker
Fuel level sensor
Pet GPS tracker
5. ADD GPS device to the platform
About platform
1. Load the GPS platform: www.gps-go.com
User:xxxx password:123456
Note: XXXX is the platform account, need to contact a salesman to
get this account name and password
For APP, search GPS-go in google store or download from this QR:
2. The platform functions and report
3. Track: you can see the real-time location of the vehicle
4. GEO-Fence: If a vehicle enters or leaves this Geo-fence, an
alert message will be received on the platform
