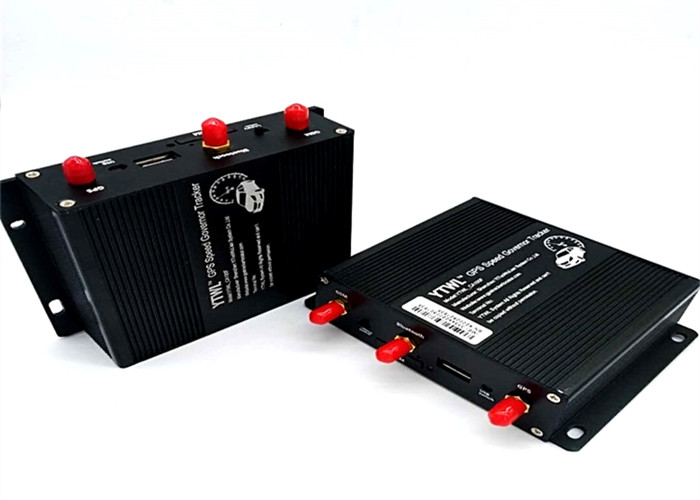

YTWL_CA100F Ethiopia Standard Vehicle GPS Speed Limiter Fleet
Management System
What is a GPS speed Limiter
A gps speed limiter is a combination of vehicle GPS tracker and
vehicle speed limit technology. GPS integrated speed limiter device
is designed to limit the maximum road speed of motor vehicles by
control of engine power.
Which country needs GPS integrated speed limiter?
Currently Kenya and Ethiopia in Africa has published standards,
respectively KS 2295-1:2018 in Kenya and ES 6413:2019 in Ethiopia.
Difference between Kenya and Ethiopia standard:
In Kenya, wired portable printer is required.
In Ethiopia, wireless portable printer is required.
Products Description
GPS Speed Limiter Features:
1. GPS Speed Limiter. User can setup top speed to limit vehicle
speed either by SMS or computer based tool.
2. Geo fence based Speed Limit. The device support 3 fences to
setup different speed limit per fences.
3. USB flash data downloaded. Vehicle travelling data could be
retrieved by using a computer or a USB flash or a wireless
Bluetooth printer.
4. Data could be stored for at least 72 working hours for future
reference, including date, time, speed, car plate number, owner
name, fitting center, installer name, installed date, longitude,
latitude, etc.
5. Tamperproof. UniGuard vehicle speed limiters are specially
designed for none drivers or any other unauthorized people can
tamper with the installed devices. Once device is tampered, it
shall go to limp mode- vehicle speed is restricted to 40KM/H or
30KM/H. (Per Kenya or Ethiopia Standard)
6. Pre-warn if 95% of set speed limit is reached, beep sound will
be produced continuously.
7. In installation UniGuard speed governor could be hidden in a
place not accessible by unauthorized people.
8. The speed limiter recorder could communicate with computer by
use of USB flash.
9. 9 to 36V working Voltage. Wide applicable for trucks, cars,
school buses, taxi and other commercial vehicles.
10. Wireless Data Printing. Support connection with wireless
portable printer and print the past 24 hr driving data.

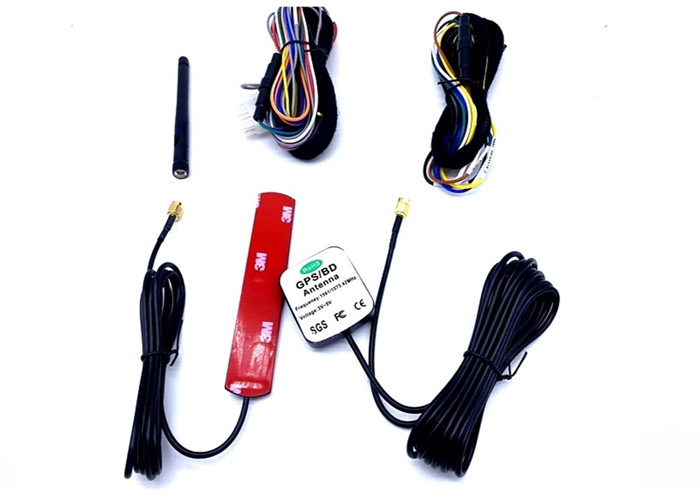

Accessories:
Technical Parameter:
| Content | Specs. |
| Dim. | 117*92*31 (mm) |
| Weight | 280g |
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900MHz |
| GPS chip | U-blox |
| GSM/GPRS Module | SIM800C |
| Bluetooth Module | BT360I |
| CPU | STM32F105RBT6 |
| Power IC | TD1509-ADJ |
| Anti-jamming | Strengthened Anti-jamming |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5 m |
| Work Voltage | DC 9V－36V |
| Battery | Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable) |
| Standby work current | < 40mA |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
