Speed Limiter For Truck Bus Over Speed Control Realtime Speed Data
Extraction

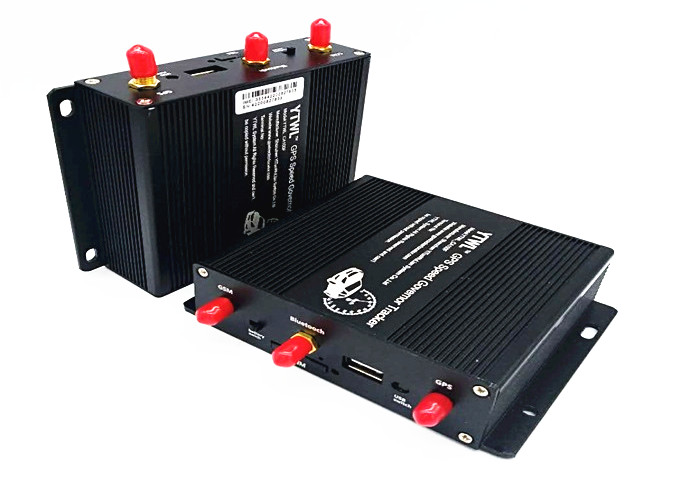

Vehicle speed limiter CA100F is an intelligent terminal equipment
which can realize precise speed limiting for vehicles. It is not
only a speed limiter but also a GPS Tracker. Speed control
precision is very high and the performance is reliable. It will not
affect the big throttle start nor the power torque, stable and
reliable. It only limits the maximum speed and the vehicle will not
stall during speed limiting, and ensure the throttle pedal free
movement in the right speed range.
Technical Parameter:
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900MHz |
| GPS chip | U-blox |
| GSM/GPRS Module | SIM800C |
| Bluetooth Module | BT360I |
| CPU | STM32F105RBT6 |
| Power IC | TD1509-ADJ |
| Anti-jamming | Strengthened Anti-jamming |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5 m |
| Time To First Fix | Reacquisition 0.1s |
| Cold status 45s |
| Warm status 35s |
| Hot status 1s |
| Work Voltage | DC 9V－36V |
| Battery | Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable) |
| Standby work current | < 40mA |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
| Speed Limit Scope | 40-120KM/H |
| Sound Buzzer | 5% Below |
Following lines are indispensable in installation:
1: Brown line
2: Orange line, the line of the buzzer
3: Gray line, pick up the pulse line of the original car, connect
the pulse line speed limiter, the speed limit function will not
have too much delay, use GPS signal speed limit, there will be a
delay of about 2 seconds
4: ACC line
5: Power ground
6: Positive power supply
Product Function:
Fixed Highest
Speed Limiting
Can set only one or two highest driving speed value for the
vehicle.
Such as: According to the government regulations, some vehicle
should not driving over 100Km/h(or any other appointed speed), the
product can control the vehicle keep driving within 100Km/h(or any
other appointed speed)
Differentiate
Road Type
Intelligent Speed
Limiting
Limit the highest vehicle speed according to different road type.
Such as: on high-speed road, speed limit within 120 100Km/h; for
fast road, speed limit within 100 Km/h, State Road 60Km/h, county
road limit 50Km/h, this product according to road speed limit.
Differentiate
Vehicle Type
Intelligent Speed
Limiting
Limit the highest vehicle speed according to different vehicle
type.
Such as: for high speed compact car ,limit within 120Km/h; for
large vehicle, limit within 100Km/h; for dangerous goods
transporter, limit within 60Km/h.
Note
All the intelligent speed limit function need platform support, it
means your platform must have a database contains the speed limit
value of each road ,if not , we can only supply the fixed highest
speed limiter for you, it means that we can only set one or two
high speed limit vale in this product.
