YTWL_CA100F Road Speed Limiter Ethiopian Standard Vehicle Speed
Control 2021
Supply and Installation of Speed Limiter with the integrated GPS
system on 200 units of vehicles
Reference: ITB/2020/13893
Beneficiary Country: Ethiopia
Registration level: Basic
Ethiopia has provisionally agreed on new rules that state speed
limiters will become mandatory for all vehicles sold throughout the
country.
Road Speed Limiters were developed to improve safety and the
environment by controlling the speed of vehicles, thus reducing
serious accidents and pollution. The basic function of the system
is to limit the maximum speed of a vehicle to a pre-set level
without affecting any of the performance of the vehicle.
Technical Parameter:
| Content | Specs. |
| Dim. | 117*92*31 (mm) |
| Weight | 280g |
| Network | GSM/GPRS/GPS |
| Band | 850/900/1800/1900MHz |
| GPS chip | U-blox |
| GSM/GPRS Module | SIM800C |
| Bluetooth Module | BT360I |
| CPU | STM32F105RBT6 |
| Power IC | TD1509-ADJ |
| Anti-jamming | Strengthened Anti-jamming |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5 m |
| Time To First Fix | Reacquisition 0.1s Cold status 45s Warm status 35s Hot status 1s |
| Work Voltage | DC 9V－36V |
| Battery | Rechargeable 3.7V / 1000mAh Li-ion battery (Customizable) |
| Standby work current | < 40mA |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +70°C |
| Humidity | 5%--95% non-condensing |
YTWL_CA100F Road Speed Limiter Ethiopian Standard Vehicle Speed
Control 2021
2. Application Field:
Fixed Speed Control
The customized fixed maximum top speed limit increases the safety
and fuel economy of your fleet.
Reverse Speed Control
Limits a vehicle's top speed in reverse. Limiting reverse top speed
increases safety during a statistically high-risk category of
operation.
Acceleration Control
Controls the rate at which the vehicle is able to accelerate.
Inhibiting aggressive driving behaviors, increasing safety, and
greatly improving fuel economy.
Upgradeable to ISA
Upgrade your VMS from fixed top speed limiting to variable top
speed limiting at any time with our optional SpeedIQ kit. The
upgrade offers even override Mode
Configurable overrides by a variety of input methods. This
capability is especially useful for Emergency Services and others
who require access to full speed and acceleration at times.
Designed for the Ethiopia market, the YTWL-100F Vehicle speed
limiter is intelligent terminal equipment that can realize precise
speed limits for vehicles. It is not only a speed limiter but also
a Professional Multifunctional Vehicle GPS Tracker.
YTWL_CA100F Road Speed Limiter Ethiopian Standard Vehicle Speed
Control 2021

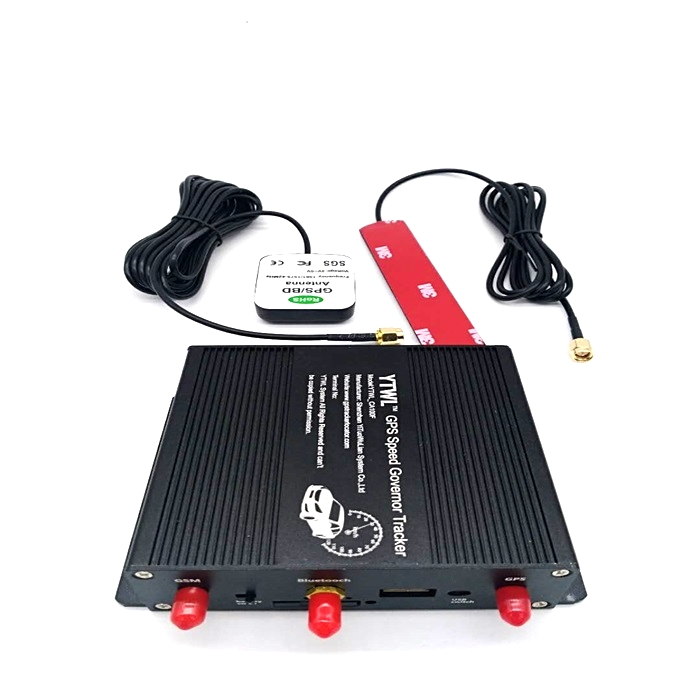

Product Accessories:
① Power wire
② Executor wire
③ Buzzer
④ GPS Antenna
⑤ GSM Antenna
⑥ SIM Card Slot
⑦ Bluetooth printer ( Optional )
⑧ Bluetooth antenna
Realtime Speed Limit Test in Vehicle
To simulate the test of the speed limit, we connect the device with
a bulb and set the speed limit, when the speed reaches 95%, there
is an alarm; when the speed reaches 100%, the GPS speed limiter
starts to cut off the power supply. When speed comes down, the GPS
speed limiter does not control.
Q&A about GPS Speed Limiter for Ethiopia:
0. Is your GPS Speed Limiter well approved, testified, and
recognized by the Ethiopian market?
Yes, as one of the very first several companies who invented GPS
Speed Limiters for the Ethiopia market according to the standard of
the Ethiopian government our GPS Speed Limiters have been well
approved, testified, and recognized by the Ethiopia market. And we
have been exporting quite a number of GPS Speed Limiters to
Ethiopia every month.
2. What mechanism will the device use to limit the speed of
electronic throttle vehicles and the additional device it uses?
Our speed limiter is an electronic type that works with electronic
throttle vehicles without requiring additional accessories.
