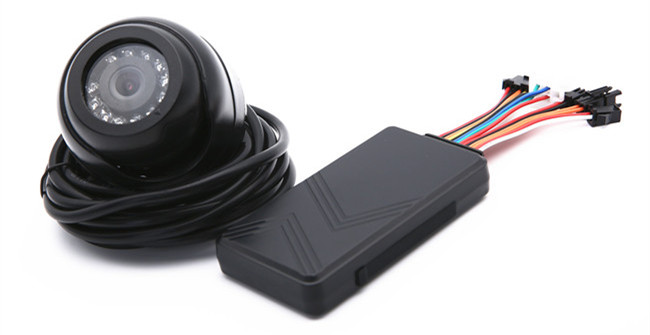

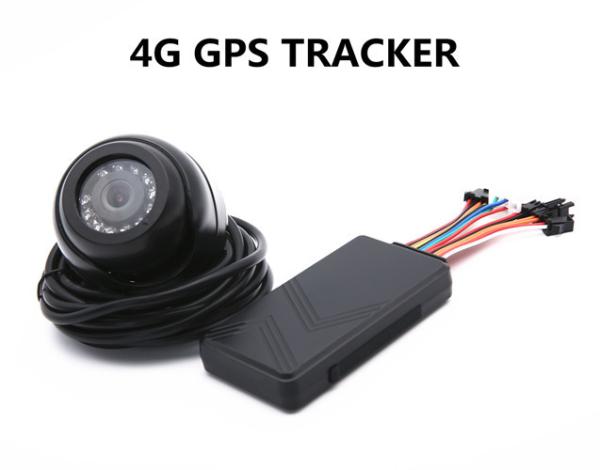

4G BD/GPS Tracker Device With Camera, Movement Alarm, Over-Speed
Alarm
GPS Tracker Parameters:
| Working Voltage: | DC9-100V or 12-40V, optional. |
| GSM Chip: | MT6261 |
| GPS Chip: | AT6558R |
| MPS | 9486 |
| Working temperature: | ‘-20 ℃ to +70 ℃ |
| Storage temperature: | ’-40 ℃ to +80 ℃ |
| Working Humidity: | 5% to 90% |
| Power consumption: | Average power consumption<1W, power-saving status<2mW |
| GPS Tracker size: | 99mm*52mm*17mm |
| Packing size: | 140mm*85mm*50mm |
| Interface: | Power input, ACC input detection, cut-off fuel circuit. |
| Communication band: | GSM/GPRS 850MHz 900MHz 1800MHz 1900MHz |
| Accessory | Camera |
| weight | 249 |
Device status indicators
1. Connect DC 9-100V power supply and the red LED will light
continuously.
The red LED is the power signal,
it is always on when the external DC is connected.
2. The blue LED is the GSM signal indicator.
It is always on when there is no GSM;
it flashes when GSM is normal;
it flashes quickly when transmitting data.
3. The yellow LED is the GPS signal indicator:
it is always on when there is no positioning;
it flashes after positioning.
4G BD/GPS Tracker Device With Camera, Movement Alarm, Over-Speed
Alarm
1.1 Product functions
Location inquiry, geo-fence, power-off alarm, vibration alarm,17,
historical route playback, parking report, remote power/oil off.
2.1 Product accessories:
Standard: the device/ charging cable / quick installation user
manual / double-sided stickers
Optional: micro-phone, SOS button, relay.
Installation instructions
3.1 Preparation before installation:
1, Open the box and check whether the device and the accessories
are complete, otherwise please contact your dealer.
2, SIM card selection, the device works with a standard SIM card
and supports a full Netcom band.
3, SIM card installation, there is a small back cover on one side
of the terminal, push out the small back cover, pick up the metal
cover of the SIM card slot, put the SIM card chip down into the
card slot, and cover the metal cover of the card slot.
4G BD/GPS Tracker Device With Camera, Movement Alarm, Over-Speed
Alarm
Terminal connection:
male switch, Female switch
Red(positive) Black (Negative)
1. red wire connect positive(+),black wire connect negative(-)
2. power input connector to power positive and negative connectors(
make sure to connect the right connector)
set server IP or Domain name
1. Set server Domain name: SERVER,1, domain name, port,0#
2. Set Server IP:
SERVER,0,IP, Port,0#
The last bit 0 stands for TCP
4. When all indicators lighted and flashed normally means GPS
Tracker works. now send SMS command to
communication network, you will receive a GPS Tracker status report
by SMS.
