Waterproof IP68 CLS2 GPS Fuel Tank Level Sensor Cut Length Sensor
0.5-4.5V
1)Features of fuel level sensor CLS2
| NO. | Item | Performance parameters |
| 1 | Collection principle | Capacitance |
| 2 | Size | 100mm to 1500mm(minimum can be detected 100mm,maximum can be
detected 1500mm)
There have 3mm blind area of bottom fuel sensor can't be detected. |
| 3 | Electrical parameters | DC: 4-70V, better DC: 4-36V (Over voltage protection, reverse
Voltage protection) |
| 4 | Power Consumption | 0.200W/5V,0.286W/12V,0.571W/24V |
| 5 | Signal output | RS232,RS485, 0-5V,0.5-4.5V, 0-3.3V. |
| 6 | Communication baud | 2400,4800,9600,57600,115200 |
| 7 | Resistance ouput | 10~500Ω |
| 8 | Detection of liquid type | Diesel, biodiesel, kerosene, etc. |
| 9 | Resolution | Less than 1mm |
| 10 | Accuracy | ±0.5% |
| 11 | Use of the environment | Work temperature:-40ºC~+75ºC |
| Save temperature:-40ºC~+85ºC |
| 12 | Humidity | 0~99% |
| 13 | Detector material | Aluminium alloy |
| 14 | Protection class | IP67 |
This fuel monitoring system supported by fuel level sensor CLS2 ,
which is a capacitance type of high precision.
During the fuel consumption monitoring system, the accuracy is 0.5%
and the resolution is 1mm, Voltage type, Current type and Digital
type are available.
2)Our whole Fuel consumption Monitoring system, includes 3 parts:
1. Fuel level sensor: Our capacitance fuel sensor with high
accuracy 0.5%, in addition, it can be cut according to the depth of
fuel tank, we can provide different types of fuel sensor: Digital,
analog, voltage, the resolution is 1mm.
2. Hardware: Our GP series can monitor fuel sensors for detecting
fuel consumption.
3. Fuel consumption system Software: Data will be displayed as
curve real time. The manager can download the history data from the
server as analysis report and curve with speed and mileage also
supporting the report of analysis output by PDF. Excel format, from
which you can clearly know where the fuel expended, under what
conditions, if there is someone steel the fuel or not, all of the
information will be displayed in a simple way.
3) CLS2 smart capacitance Fuel Tank Level Sensor are designed for
liquid level measurements where the levels are lower than 3 meter,
316 stainless steel allows the transmitters to be suitable for
harsh environments and various measuring medium, such as oil,
fuels, or other media compatible with 316 stainless steel.The user
can realize the ZERO or RANGE self-calibration with two buttons or
two lead lines to meet different requirements on various complex
occasions.
4)Calibration
This sensor adopt high-speed MCU of CNC technology, adopting
self-calibration
Calculation , and leaves out the complicated Manual calibration
while using. in normal
circumstance, the sensor can directly be used in the measurement of
the diesel, if need to calibration, you can use the three following
ways to complete. (each can work)
CLS2 Capacitor motor oil level sensor combined capacitor sensor and
liquid level sensor.The product not only contain the features of
high precision measurement and maintenance-free, at the same time
it doesn't influenced by temperature and medium.It can be
automatically measuring error caused by different temperature or
medium for precise compensation,achieving the purpose of accurate
measurement.
The entire sensor machine doesn't contain any elasticity or moving
parts.Impact resistance, maintenance-free, long service life, easy
installation,can be installed in various occasions.Accurate measure
for gasoline, diesel oil, hydraulic oil level and other various
weak corrosive liquid level
This liquid level sensor is level measuring instrument,contain high
resolution ratio and measurement accuracy.It is automatic
calibration which does not need manual intervention,no temperature
drift, and is not affected by medium change.In other
words,regardless of the measured medium is water or gas or diesel,
no matter how temperature changes, it can output signal accurate
liquid level height at one sensor. Completely solve the problem of
measure medium difficulty ,like ethanol and methanol,and the
problem of measurement error caused by oil’s label and great
temperature difference in different areas.
The equipment can be used cooperatively with GPS vehicle
positioning terminal and other terminal to make vehicle positioning
and fuel consumption management system.It can evaluate the usage of
the vehicle and the driver's driving level,monitor gas up situation
of vehicle,precise calculate hundred kilometers fuel
consumption,completely eradicate the phenomenon of oil stolen,oil
spilling,detouring,make extra money,private use of government vehicles,falsely making receive..

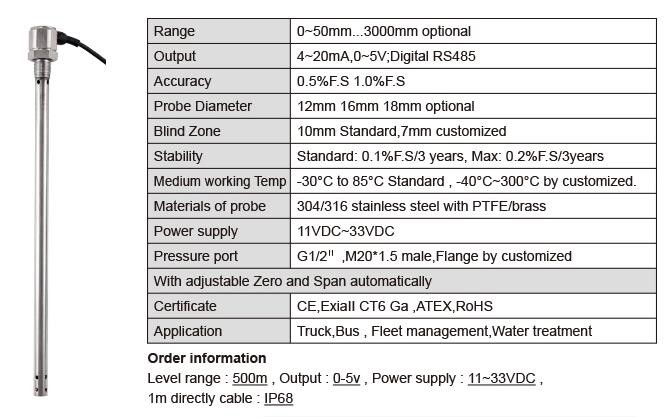

5).performance index
Waterproof IP68 CLS2 GPS Fuel Tank Level Sensor Cut Length Sensor
0.5-4.5V
1. Precise linear and temperature compensation
2. Support local ZERO and SPAN calibration
3. Surge, over-current and polarity resistant design
4. Max 300 Degree C High Temp Liquid level measurement
5. Up to 0.01mm resolution,Min 7mm Bottom blind Zone
6. Simple installation without any settings
7. Sensitivity and hysteresis fluently adjustable
8.Applicable for various non-conductive liquids
| Feature | Advantage | Benefit |
| The thread can be fiited with flange at the top of the sensor | For large vehicles, there is a standard size integrated structure,
no need to change the oil and circuit interface, directly replace
the installation | Easy installation and maintance |
Analog signal supports local two - wire touching calibration
Digital signal RS485 supports automatic computer calibration | For the calibration of differe
nt media, only two key "zero" and "full Span" can be easily
achieved | Easy operation and suitable for many kinds of liquid measurement |
| Customs high temperation with cooling device | allowing media temperatures of up to 300°C. | special for high temperation application |
| It can be used with GSM/GPRS/GPS module | Remote vehicles monitoring | Reduce fuel consumption operation costs prevent oil theft |
| With different kinds of oil | Diesel, gasoline vehicles are available | strong universality |
6) definition of the output line
Interface output line use 6 core cable, connecting definition
Installation Notes
Before installation, please check the attachment: Flange, rubber
blanket,O-rings, and Whether the screw is consistent and complete
Trape the o-rings to the root of the sensor ( packed prior to
shipment )
Daub the Oil-resistant sealant on the two side of the rubber pad,
and aim flange plate to the tank flange hole,then fixed by
screw,symmetrical tighten the strength in turn to make sure uniform
stress and avoid oil spilling.
To finish the installation ,insert the sensor and use a wrench to
tight.
connect the power cord, communication line, cable, ground wire
according to the definition, and yellow line and green line need to
trape one by one , preventing from the short circuit
Link the power of the sensor after checking the circuit
Installation position should be placed as near as possible to the
center of the fuel tank, in order to reduce the influence of the
oil level of tilt and the oil level of volatility while on the
hill.
Symptom of failure
1No-output /communication error
2The output value unchanged
3Measurement error of output value
4Output value floats up or down
Exclusion and solutions
1test connect→test if the voltage is greater than 10V when
load→test the supply current [range 3~10mA] → connect method see
2.1,or change over blue and white line[digital communication
only]→if all above is regular or current beyond normal range,the
sensor occurred failure.
2Test the supply voltage when load[ex.voltage unstable] → recharge
the sensor →test if there is a serious interference around→test
whether sensors hole is blockage from top to bottom → execute
2.2.2→If not,the sensor occurred failure.
3 detect whether service voltage is stable while loading ( if the
voltage is unstable) → →whether external have interference→check
whether the sensor is jammed → execute the 2.2.2 process →then it
should be the sensor fault
4 check the oil leve is stable → check the service is normal and
functional →whether external have interference →execute the 2.2.2
process→then it should be the sensor fault
Waterproof IP68 CLS2 GPS Fuel Tank Level Sensor Cut Length Sensor
0.5-4.5V
remark
1 4~20mA output supply voltage DC20~28V,current is 4~20mA except
communication output
2Check the tank oil level is float or not,if become regular after
recharge,check the interference and the power
3 it usually can be functional while executing the 2.2.2 process
4 it usually occur on 0~5V signal
APPLICATION:
The ultrasonic fuel level sensor is used for digital recording
vehicle refueling, to prevent driver stealing oil , avoid the waste
of resources, improve operational efficiency, and improve the
traffic safety, strengthen the operation and management level.
This sensor is applicable to various types of vehicles such as
trailers, taxis, buses, concrete mixer truck, engineering
machinery, sanitation trucks and other.
Gurantee:
1. All of our product is free to use the Tracking service server in
24 hours each day
2. All of our product there is a 2 year quanlity assurance.
3. Sample fee will not be returned.
Product Configuration:
1. Standard configuration
1) main device 1 pcs
2) power line 1 pcs
3) sensor
5) Installation cables 1 set
6) Usage instructions
7) Warranty card
