HDD MDVR SW0003 4CH 8CH Optional With 3G 4G WIFI Real Time Video


Performance Parameters:

HDD Mdvr for Local Record with GPS vehicle tracking

GPS vehicle tracking, history location report
Alarm report
Real-time video monitoring


Specifications of MDVR:

HDD MDVR SW0003 4CH 8CH Optional With 3G 4G WIFI Real Time Video

Introduction

MDVR Specifications are as below
Operation Menu: Graphical menu interface
Password: User password and Admin password
Video input: 4-CH composite video input
Video output: 1-CH composite video output
Video display: 1 channel/4 channel
Video signal: PAL/NTSC
Compression: H.264 Main profile, 75f at D1/s, 300f at CIF/s
Audio input: 4-CH audio input
Audio output: 1-CH audio output
Recording mode Audio & video sync recording
Video format: CIF/HD1/D1 optional
Video stream standard: ISO14496-10
HDD MDVR SW0003 4CH 8CH Optional With 3G 4G WIFI Real Time Video
Video bitrate
CIF: 384Kbps(lowest), 512Kbps(middle),768Kbps
(highest), 3 levels optional
HD1: 512Kbps(lowest), 768Kbps(middle), 1024Kbps
(highest)3 levels optional
D1: 512Kbps(lowest), 768Kbps(middle), 1024Kbps
(highest), 3 levels optional
Audio bitrate 8KB/s
Storage Supports two 64GB SD cards/one 2.5"Max 2T HDD
4 alarm input, below 4V is low level alarm, above 4V is high level alarm
Alarm output 2 alarm output, output high level of 12V & 5V



State:
SD card MDVR This manual may exist any technical describe inaccurate or misprint,also the contents will be update unscheduled without notice,new contents will be added in next version;
We’re subject to improve or update product description or program,if any difference,all depend on real goods,please understand.

Functional Features:

1. Ø SD card Mobile DVR HIS Solution,H.264 Compression Mode, Many stream recording,4CH Video+2CH Audio Input, Compatible with 4CH 720P/960P Mega Pixels Analog High Definition Camera input /2CH AHD High Definition + 2CH Standard Definition mixed input / 4CH Analog Standard Definition Camera input.

   Ø Real-time HD Video Recording, 720P/D1/HD1/CIF for Optional,Adjustable Frame Rate Quality.

   Ø Professional Power Design for all kinds of Vehicles, 8-36V DC; Wide Voltage, Over-load,Over-voltage,Short Circuit,Reverse Protection,Suitable for all kinds of vehicles.

   Ø SD card Mobile DVR Support DC 12V/2.5Amp output, it can offer power for cameras,mini monitor and some peripheral device.

   Ø HDD + SD card Data record storage (maximum support 2TB 2.5’’ hard disk and 128GB SD card. ) It can be completely resist car Vibration,Dust and others cause data corruption;

   Ø Watchdog Abnormal will trigger Restart Protection Function . It can better protect Device and Video.

   Ø Exclusive pre-allocate DVR Special File System Technology,Solving repeatedly wipe cause file

HDD MDVR SW0003 For Local Record With GPS Vehicle Tracking 4G 3G Real Time Video
Applications And main functions:

Product Configuration:

1. Standard configuration

1. Device host 1pcs;
2. Power Cables 1pcs;
3. I/O Cables 1pcs;
4. AV Cables 1pcs;

2. Optional configuration:

1. camera
2. lcd display
3. SD card
4. hard disc

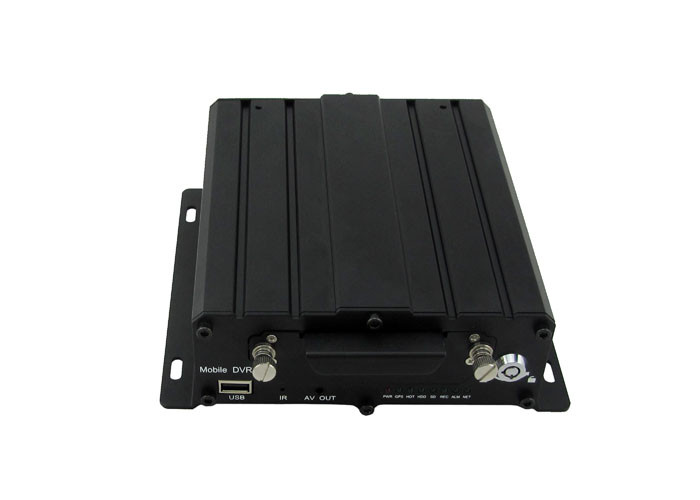

Detailed Pictures:
