Ethiopia Speed Limiter YTWL_CA100F ES6413:2019 Standard With Bluetooth Printer

Electronic Throttle Vehicle Speed Limiter
CA100F Installation Method
1. Product Brief:
Vehicle speed limiter CA100F is a intelligent terminal equipment which
can realize precise speed limiting for vehicles. It is not only a speed
limiter but also a GPS Tracker.
The product adopts ARM intelligent chip, speed control precision is very
high , and the performance is reliable. It will not affect the big throttle
start nor the power torque, stable and reliable; Only limit the maximum
speed, the vehicle will not stall during speed limiting, and ensure the
throttle pedal free movement in the right speed range.
CA100F reserves a wealth of interface, can work together with a variety
of external equipment, with high compatibility and performance.

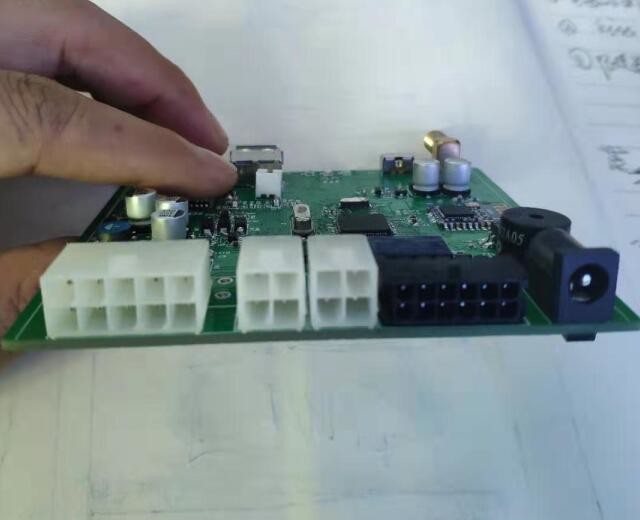

Above is the front view of the GPS speed limiter
2. The power line
2.1 the black head line
2.2 the white head line
caution:
6: brown line, is the line of the buzzer, The positive pole of the buzzer is connected
to the positive pole of the 12 power supply, and the negative pole of the buzzer is
connected to the brown line of 6
9: Gray line, pick up the pulse line of the original car, connect the pulse line speed
limiter, the speed limit function will not have too much delay, use GPS signal speed
limit, there will be a delay of about 2 seconds
10: ACC line 11: Power ground
12: Positive power supply
Except for the 4 wires of 6, 9, 11, and 12, which are necessary wiring, the other
wires are reserved functions and are used for subsequent development of other
functions
