    9V-36V Speed Governor Car Speed Limiter With Speed Recording / Reporting Devices

    Ask Lasest Price
    Brand Name : cartrack
    Model Number : CA100F
    Certification : CE/ROHS/FCC/SGS
    Price : negotiation
    Payment Terms : T/T or western Union or paypal
    Supply Ability : 100,000pcs per month
    Delivery Time : 1-10 working days after received your payment
    • Product Details
    • Company Profile

    9V-36V Speed Governor Car Speed Limiter With Speed Recording / Reporting Devices


    Ethiopia Standard Car Speed Limiter with Speed Recording and Reporting Devices


    1 Product Specifications

    Dim.117*92*31 (mm)
    Weight280g
    NetworkGSM/GPRS/GPS
    Band850/900/1800/1900MHz
    GPS chipU-blox
    GSM/GPRS ModuleSIM800C
    Bluetooth ModuleBT360I
    CPUSTM32F105RBT6
    Power ICTD1509-ADJ
    Anti-jammingStrengthened Anti-jamming
    GPS sensitivity-159dBm
    GPS accuracy5 m
    GPRS requirementGPRS Of speed limiter shall have a minimum of Multi-slot Class 8
    GPRS Of speed limiter shall Support at minimum four coding schemes (CS-1, CS
    2, CS-3 and CS-4) download speed at least speed 85.6kbps upload speed is at least 21.4kbps
    Positioning Accuracy of GPS shall be Less than 5 meters at 20 RMS

    2. Speed Limiter Requirement

    Ethiopia Standard Car Speed Limiter with Speed Recording and Reporting Devices


    1. The speed limiter devices shall be of industrial grade and designed for automotive application;
    2. All components necessary for full function of the speed limiter or the Speed limiter device shall be energized whenever the vehicle is being driven;
    3. The device should provide functional check facility by which the set speed and functioning can be checked by the field and other concerned authorities;
    4. The speed limiter device system shall be equipped with a system which shall accept an external device for testing the speed limiter and verifying its functionality;
    5. All speed limiter device system shall able to be checked for accuracy and functionality;
    6. The speed limiter device system shall be able to be verified. Authenticated and tested whilst the vehicle is "on" the road.
    7. The input speed signal shall be obtained from global navigating system (GNS) or speedometer vehicle speed signal or a converted speed signal from vehicle gearbox or from other separately installed sensor as deemed appropriate

    Ethiopia Standard Speed Limiting Device Speed Limiter Real-time Online Tracking​

    1. Road speed limiting device shall have a users and technical's manual, both written in English/Amharic ;
    2. The recorder shall incorporate a combination of an onboard and off-board mechanism for recording and storing the speed of the vehicle;
    3. The speed shall be recorded in Km/h at not more than five seconds interval;
    4. The retrieved data shall clearly and in an unambiguous manner display the date (dd Imm Iyyyy) of recording.

    3 Application Field:

    1. For School Bus ;
    2. For tour bus and passenger car management ;
    3. For logistics vehicle monitoring and management ;
    4. For tank truck monitoring and management.
    5. For limit the speed of vehicles

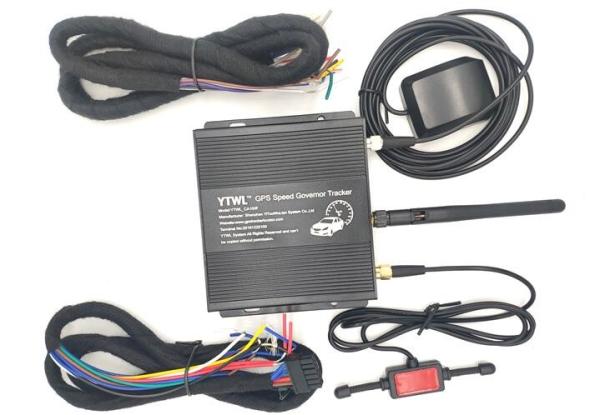

    4 Parts list:

    Power wire
    Executor wire
    Buzzer (optional)
    GPS Antenna
    GSM Antenna
    SIM Card Slot
    Bluetooth printer
    Bluetooth antenna
