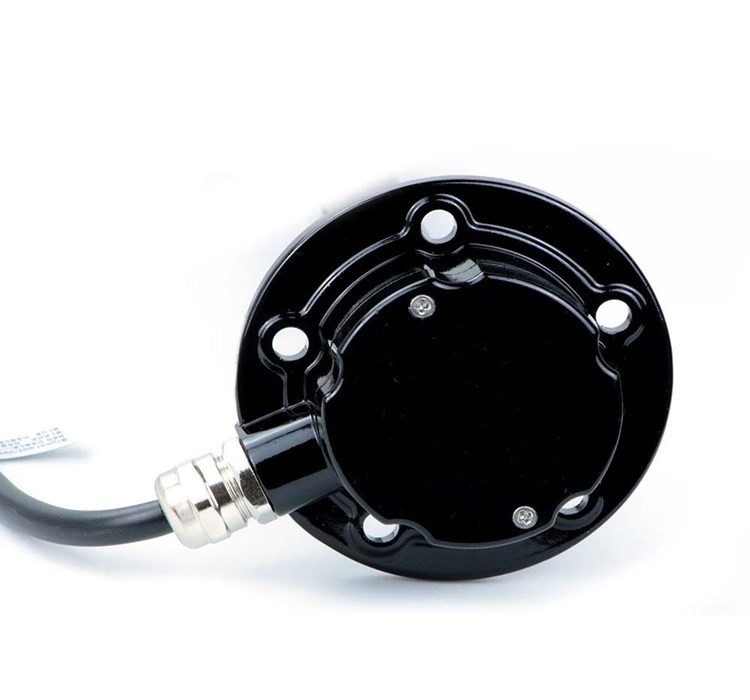

Fuel Level Sensor Measure And Monitor Oil Leak Adopting
Self-Calibration Calculation
Product description:
CLS2 Capacitor motor oil level sensor combined capacitor sensor and
liquid level sensor.
The product not only contain the features of high precision
measurement and maintenance-free, at the same time it doesn't
influenced by temperature and medium.It can be automatically
measuring error caused by different temperature or medium for
precise compensation,achieving the purpose of accurate measurement.
The entire sensor machine doesn't contain any elasticity or moving
parts.Impact resistance, maintenance-free, long service life, easy
installation,can be installed in various occasions.Accurate measure
for gasoline, diesel oil, hydraulic oil level and other various
weak corrosive liquid level .
This liquid level sensor is level measuring instrument,contain high
resolution ratio and measurement accuracy.It is automatic
calibration which does not need manual intervention,no temperature
drift, and is not affected by medium change.In other
words,regardless of the measured medium is water or gas or diesel,
no matter how temperature changes, it can output signal accurate
liquid level height at one sensor. Completely solve the problem of
measure medium difficulty ,like ethanol and methanol,and the
problem of measurement error caused by oil’s label and great
temperature difference in different areas.
Technical features:
| Examination area: | 100~1000mm |
| Resolution ratio: | 0.10% |
| Measuring accuracy: | 0.10% |
| The maximal error of measure: | 1mm |
| Heat-resistant: | -40~150 |
| Diameter: | Φ18mm |
| Output signal: | 4~20mA, 0~5V, RS485, RS232, CAN bus |
| Voltage supply: | DC7~42V |
| Rated supply: | 0.1W |
| Fixed type: | Screw installation M20X1.5 OR Flange mounting |
| Pressure range: | -0.1MPa ~ 0.1 Mpa |
| Ambient temperature: | -40~85℃ |
Interface output line use 6 core cable, connecting definition:
0~5V output [CLS2A]:
Black line connect ground wire Red line connect positive power
White line 0~5V voltage signal output,connect voltage signal wire
Yellow line empty fuel tank use only
Green line full fuel tank use only
Fuel Level Sensor Measure And Monitor Oil Leak Adopting
Self-Calibration Calculation
The entire sensor machine doesn't contain any elasticity or moving
parts.Impact resistance, maintenance-free, long service life, easy
installation,can be installed in various occasions.Accurate measure
for gasoline, diesel oil, hydraulic oil level and other various
weak corrosive liquid level .
Instruction
definition of the output line
Interface output line use 6 core cable, connecting definition:
0~5V output [CLS2A]:
Black line connect ground wire Red line connect positive power
White line 0~5V voltage signal output,connect voltage signal wire
Yellow line empty fuel tank use only
Green line full fuel tank use only
| RS232 | output [CLS2C] |
| Black line | connect ground wire |
| Red line | connect positive power |
| White line | RXD input, connect car RS232 TXD |
| Blue line | TXD output, connect car RS232 RXD |
| Yellow line | empty fuel tank use only |
| Green line | full fuel tank use only |
1.1Calibration
This sensor adopt high-speed MCU of CNC technology, adopting
self-calibration Calculation , and leaves out the complicated
Manual calibration while using. in normal
circumstance, the sensor can directly be used in the measurement of
the diesel, if need to calibration, you can use the three following
ways to complete. (each can work)
Fuel Level Sensor Measure And Monitor Oil Leak Adopting
Self-Calibration Calculation

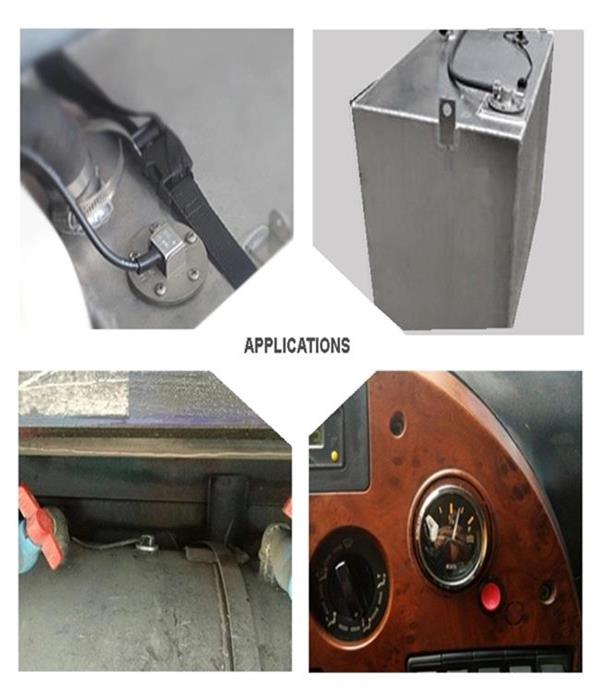

GPS Tracker Applications:
Other model
FAQ:
Do you have one GPS Tracker device that supports the fuel sensor?
Yes, all professional types of GPS trackers including V2E have the
support of this type of fuel sensors.
